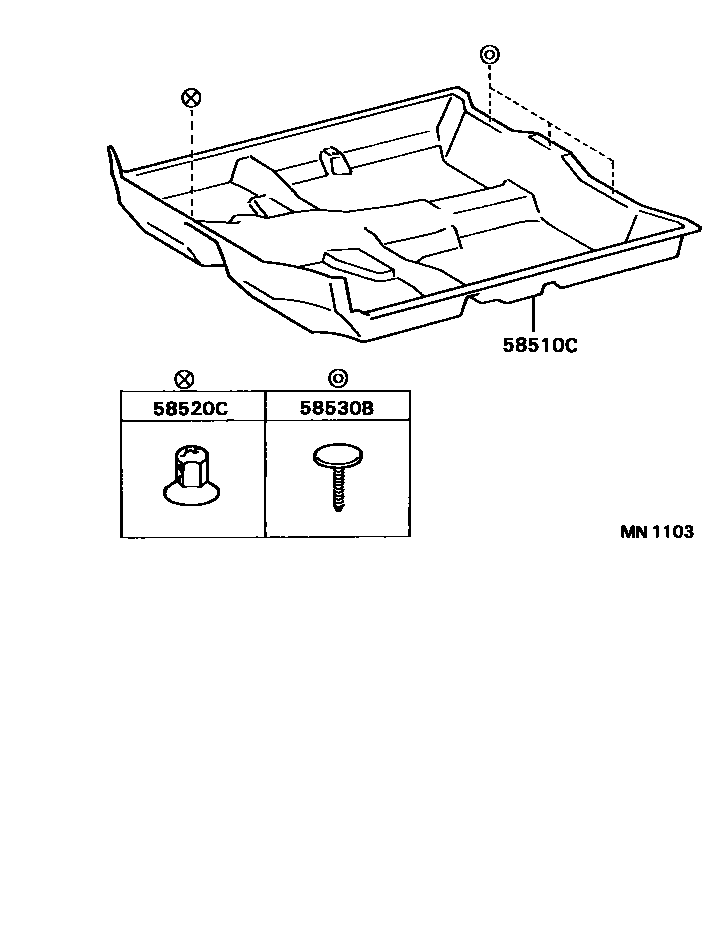

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1G490-01iEL44..CND199104-199208

BLACK,TRIM2#

main58510-1G490-04iEL44..CND199104-199208

GRAYISH BLUE,TRIM8#

main58510-1G491-22iEL44..CND199208-199308

BLACK,TRIM2#

main58510-1G491-W4iEL44..CND199208-199308

EISEN BLUE,TRIM8#

main58510-1G492-C0iEL44..CND199308-199508

BLACK,TRIM2#

main58510-1G492-J0iEL44..CND199308-199409

EISEN BLUE,TRIM8#

main58510-1G500-01iEL44..USA199104-199208

COLD AREA PACKAGE,BLACK,TRIM2#

main58510-1G500-04iEL44..USA199104-199208

COLD AREA PACKAGE,GRAYISH BLUE,TRIM8#

main58510-1G501-22iEL44..USA199208-199308

COLD AREA PACKAGE,BLACK,TRIM2#

main58510-1G501-W4iEL44..USA199208-199308

COLD AREA PACKAGE,EISEN BLUE,TRIM8#

main58510-1G502-C0iEL44..USA199308-199508

COLD AREA PACKAGE,BLACK,TRIM2#

main58510-1G502-J0iEL44..USA199308-199409

COLD AREA PACKAGE,EISEN BLUE,TRIM8#

main58510-1G510-01iEL44..USA199104-199208

BLACK,TRIM2#

main58510-1G510-04iEL44..USA199104-199208

GRAYISH BLUE,TRIM8#

main58510-1G511-22iEL44..USA199208-199308

BLACK,TRIM2#

main58510-1G511-W4iEL44..USA199208-199308

EISEN BLUE,TRIM8#

main58510-1G512-C0iEL44..USA199308-199508

BLACK,TRIM2#

main58510-1G512-J0iEL44..USA199308-199409

EISEN BLUE,TRIM8#

main58510-1G551-22iEL44..CND199208-199308

CHILE SPEC,BLACK,TRIM2#

main58510-1G551-W4iEL44..CND199208-199308

CHILE SPEC,EISEN BLUE,TRIM8#

main58510-1G552-C0iEL44..CND199308-199401

CHILE SPEC,BLACK,TRIM2#

main58510-1G552-J0iEL44..CND199308-199401

CHILE SPEC,EISEN BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05051-01iEL44199104-199208

BLACK,TRIM2#,8#

main90467-05051-22iEL44199208-199409

BLACK,TRIM2#,8#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06037-01×3iEL44199104-199208

BLACK,TRIM2#,8#

main90467-06037-C0×3iEL44199208-199212

BLACK,TRIM2#,8#

main90467-06166-C0×3iEL44199212-199409

BLACK,TRIM2#,8#

3 parts on this diagram · 1 diagram in section
