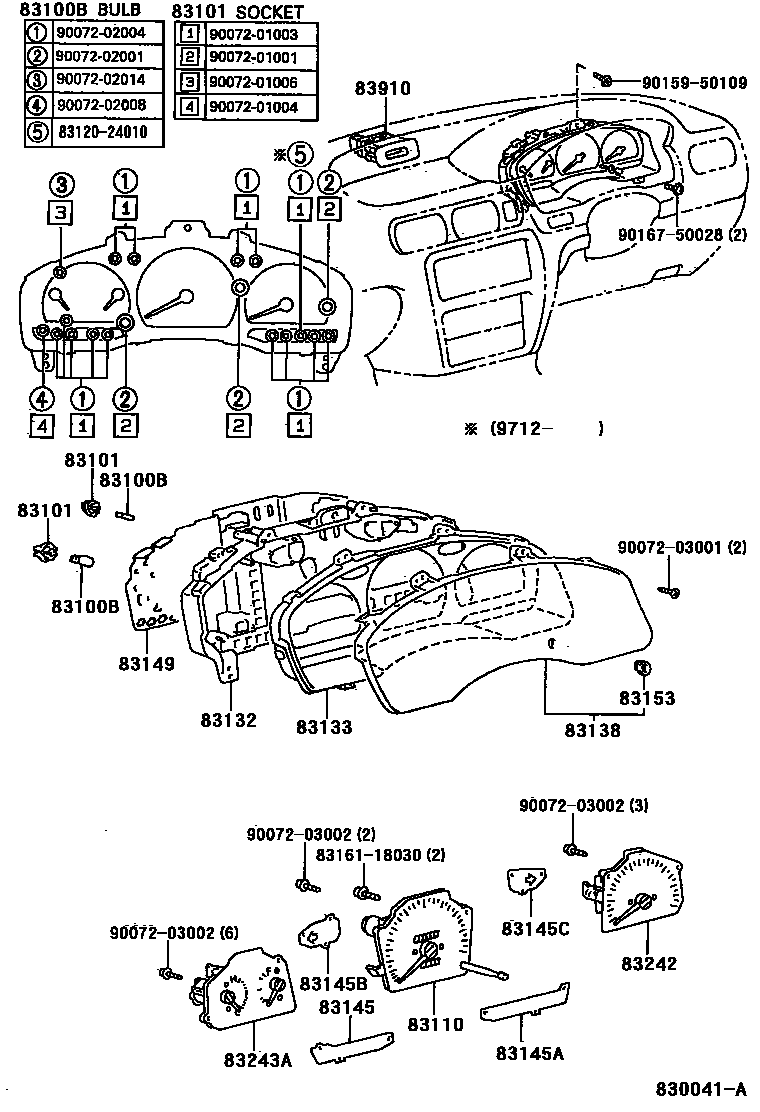

METER
83100BBULB, COMBINATION METER, NO.1
13.5V,W(SOCKET),NO.5
12V 3.4W,GREEN CAP,NO.2
14V 1.1W,NO.1
14V 3.0W,NO.4
14V 1.4W,GREEN CAP,NO.4
14V 1.4W,GREEN CAP,NO.3
83101SOCKET SUB-ASSY, COMBINATION METER BULB
NO.2
NO.1
NO.4
NO.3
83110SPEEDOMETER ASSY
MPH & KM/H
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
83145CLENS, METER, NO.4
83149PLATE, METER CIRCUIT
83153GROMMET, METER GLASS
83242TACHOMETER ASSY, ENGINE
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83910CLOCK ASSY
GRAY,TRIM1#
GRAY,TRIM1#
8316118030CASE, COMBINATION METER MIRROR, NO.1
main83161-18030
9007203001
main90072-03001
9007203002
main90072-03002
9015950109
main90159-50109
9016750028
main90167-50028
20 parts on this diagram · 3 diagrams in section
