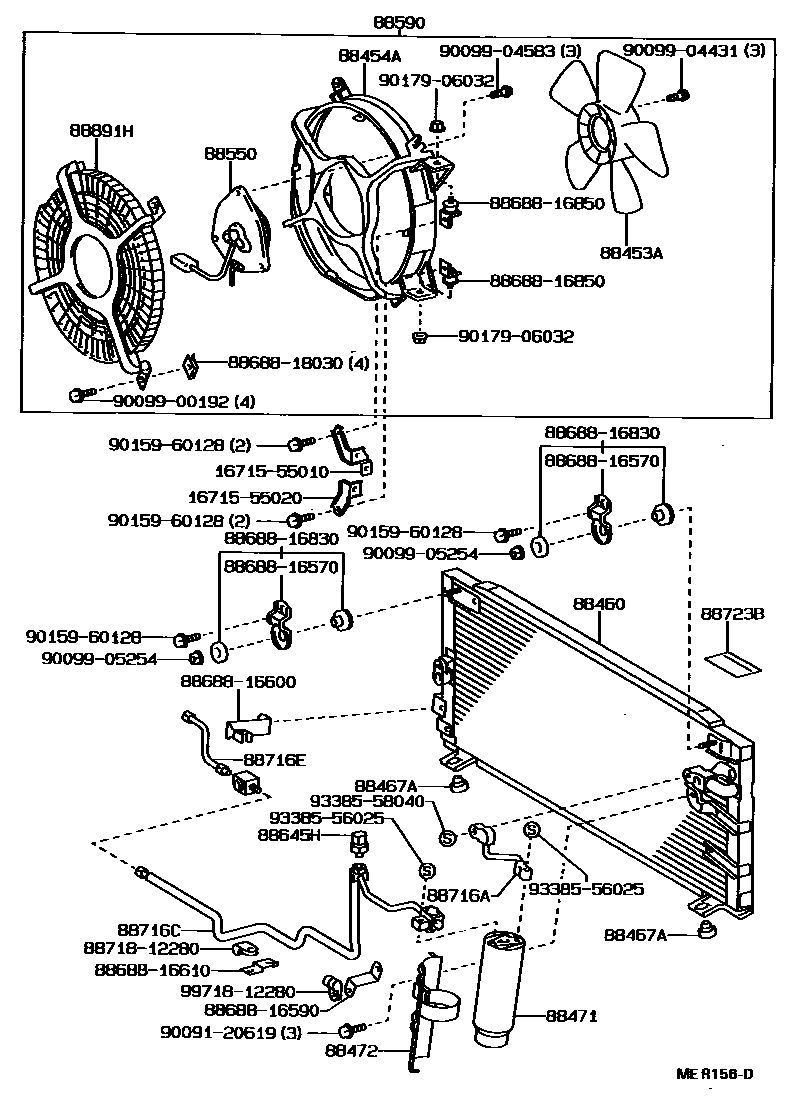

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1

88453AFAN, COOLING

main16361-55040iEL42..4DS..5F..CND; EL42..MTM..USA;EL42..2DS..MTM..CND199208-199212

main88453-10020iEL42..3FC..CND199212-199308

main88453-12080iEL42..3FC..USA199208-199409

COLD SPEC,MAKER OPTION

88454ASHROUD, FAN

main16711-55110iEL42..3FC..USA; EL42..4DS..5F..CND; EL42..MTM..USA;EL42..2DS..MTM..CND199308-199409

main88454-16110iEL42..2DS..3FC..CND; EL42..3FC..USA; EL42..4DS..3FC..CND199308-199409

COLD SPEC

88460CONDENSER ASSY, COOLER

main88460-16230iEL42..3FC..USA; EL42..CND;EL42..MTM..USA199009-199208

main88460-16310iEL42..4DS..CND; EL42..MTM..USA;EL42..2DS..CND199208-199212

main88460-16311iEL42..3FC..USA; EL42..4DS..CND; EL42..MTM..USA;EL42..2DS..CND199308-199409

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-10020×2iEL42..2DS..CND; EL42..4DS..CND199208-199212

main88467-16090×2iEL42..3FC..USA; EL42..MTM..USA199101-199308

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iEL42..CND;EL42..MTM..USA199009-199208

main88471-34010iEL42..3FC..USA; EL42..4DS..CND; EL42..MTM..USA;EL42..2DS..CND199308-199409

88472BRACKET, RECEIVER TANK, NO.1

main88472-16110iEL42..3FC..USA; EL42..CND;EL42..MTM..USA199009-199208

main88472-16120iEL42..4DS..CND; EL42..MTM..USA;EL42..2DS..CND199208-199212

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-55020iEL42..4DS..5F..CND; EL42..MTM..USA;EL42..2DS..MTM..CND199208-199212

main88550-10050iEL42..2DS..3FC..CND; EL42..3FC..USA; EL42..4DS..3FC..CND199308-199409

COLD SPEC

88590BLOWER ASSY, W/SHROUD

main16370-55030iEL42..2DS..MTM..CND; EL42..4DS..5F..CND199208-199212

main88590-16040iEL42..2DS..3FC..CND; EL42..3FC..USA; EL42..4DS..3FC..CND199308-199409

COLD SPEC,DEALER OPTION

main88590-16050iEL42..3FC..CND; EL42..3FC..USA199009-199208

COLD SPEC

main88590-16051iEL42..3FC..USA199208-199409

COLD SPEC,MAKER OPTION

main88590-16060iEL42..3FC..USA; EL42..MTM199009-199208

main88590-16061iEL42..3FC..USA; EL42..MTM..USA199208-199308

88645HSWITCH, PRESSURE NO.1

main88645-10030iEL42..CND;EL42..MTM..USA199009-199208

main88645-20050iEL42..3FC..USA; EL42..4DS..CND; EL42..MTM..USA;EL42..2DS..CND199308-199409

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-16530iEL42..3FC..USA; EL42..CND;EL42..MTM..USA199009-199208

main88716-16531iEL42..4DS..CND; EL42..MTM..USA;EL42..2DS..CND199208-199212

main88716-16532iEL42..3FC..USA; EL42..4DS..CND; EL42..MTM..USA;EL42..2DS..CND199308-199409

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-16540iEL42..3FC..USA; EL42..MTM..USA199009-199208

main88716-16640iEL42..CND199009-199208

main88716-16690iEL42..CND; EL42..USA199208-199308

main88716-16691iEL42199308-199409

main88716-16810iEL42..CND; EL42..USA199208-199308

W(ABS); W(ABS) OR W(ABS & POWER STEERING)

main88716-16811iEL42..CND; EL42..USA199308-199409

W(ABS); W(ABS) OR W(ABS & POWER STEERING)

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-16580iEL42..CND199009-199208

main88716-16590iEL42..3FC..USA; EL42..MTM..USA199009-199208

88723BLABEL, COOLER SERVICE CAUTION

main88723-16020iEL42..4DS..CND; EL42..USA;EL42..2DS..CND199208-199212

main88723-16021iEL42..3FC..USA; EL42..4DS..CND; EL42..CND; EL42..MTM..USA199308-199409

CHILE SPEC; ENGLISH

main88723-16040iEL42..CND199308-199409

FRENCH

main88723-20020iEL42199009-199207

88891HCOVER, COOLER, NO.1

main88891-16040iEL42..4DS..CND; EL42..MTM..USA;EL42..2DS..CND199208-199212

1671555010BRACKET, FAN SHROUD

main16715-55010

1671555020BRACKET, FAN SHROUD

main16715-55020

8868816570BRACKET, COOLER DIAPHRAGM

main88688-16570

8868816590BRACKET, COOLER DIAPHRAGM

main88688-16590

8868816600BRACKET, COOLER DIAPHRAGM

main88688-16600

8868816610BRACKET, COOLER DIAPHRAGM

main88688-16610

8868816830BRACKET, COOLER DIAPHRAGM

main88688-16830

8868816850BRACKET, COOLER DIAPHRAGM

main88688-16850

8868818030BRACKET, COOLER DIAPHRAGM

main88688-18030

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

9009120619

main90091-20619

9009900192

main90099-00192

9009904431

main90099-04431

9009904583

main90099-04583

9009905254

main90099-05254

9015960128

main90159-60128

9017906032

main90179-06032

9338556025

main93385-56025

9338558040

main93385-58040

9971812280

main99718-12280

34 parts on this diagram · 7 diagrams in section
