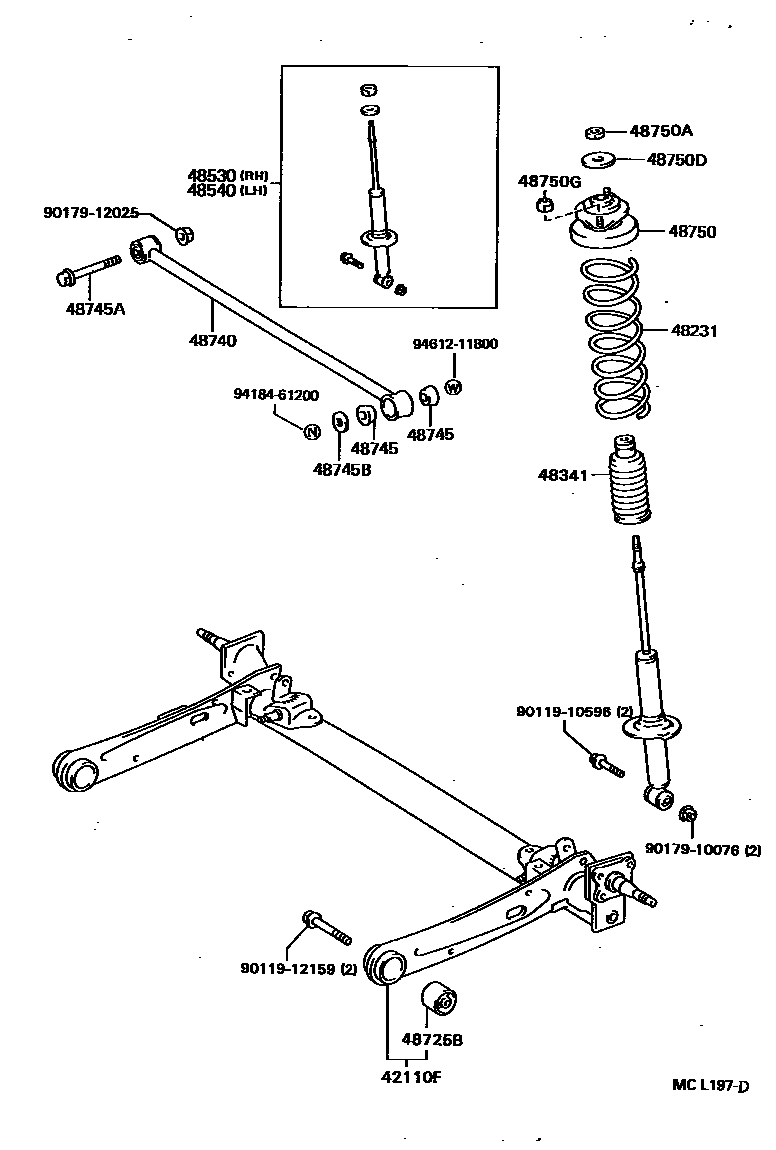

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-16100iEL42199009-199409

main42110-16120iEL42199208-199409

W(*66)

48231SPRING, COIL, REAR

main48231-16470iEL42199009-199409

main48231-16470iEL42199110-199208

CHUUHATU

main48231-16471iEL42199208-199310

48341BUMPER, REAR SPRING

main48341-16060iEL42199009-199409

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-19285iEL42199009-199409

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-19285iEL42199009-199409

48725BBUSH, REAR SUSPENSION ARM, NO.1

main48725-10031iEL42199009-199409

48740ROD ASSY, REAR LATERAL CONTROL

main48740-10020iEL42199009-199409

48745BUSH, LATERAL CONTROL ROD

main90385-18015iEL42199009-199409

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-12070iEL42199009-199409

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12037iEL42199009-199409

48750SUPPORT ASSY, REAR SUSPENSION

main48750-16060iEL42199009-199106

main48750-16080iEL42199106-199409

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90179-12061iEL42199009-199409

48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90948-02100iEL42199009-199409

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08206iEL42199009-199409

9011910596

main90119-10596

9011912159

main90119-12159

9017910076

main90179-10076

9017912025

main90179-12025

9418461200

main94184-61200

9461211800

main94612-11800

20 parts on this diagram · 1 diagram in section
