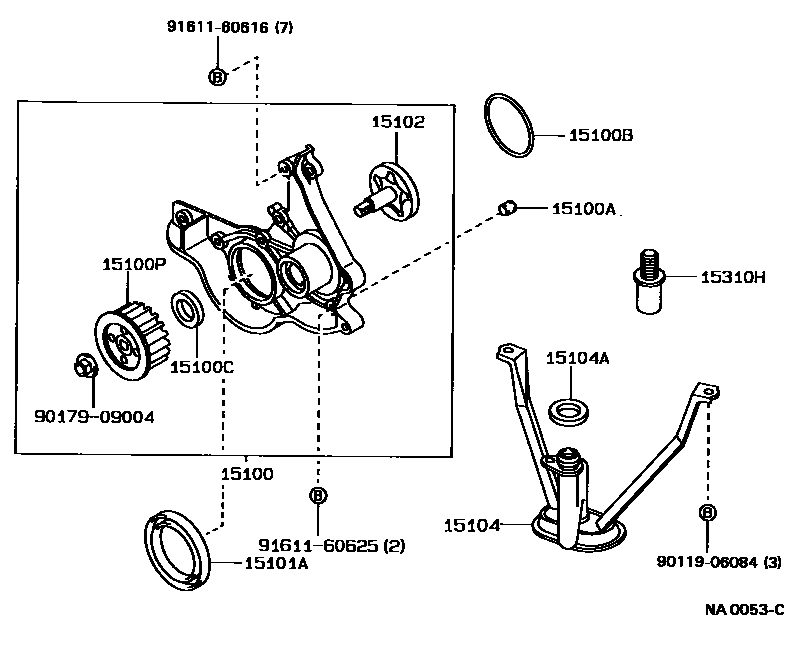

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-11012i3EE..EL42199407-199409

main15100-11021i3EE..EL42199009-199407

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i3EE..EL42199009-199409

15100BRING, O(FOR OIL PUMP)

main90301-62006i3EE..EL42199009-199409

15100CSEAL(FOR OIL PUMP)

main90029-21007i3EE..EL42199009-199305

main90029-21020i3EE..EL42199305-199409

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-11010i3EE..EL42199009-199409

15101ASEAL(FOR CRANKSHAFT)

main90311-35013i3EE..EL42199009-199409

15102ROTOR SET, OIL PUMP

main15102-11011i3EE..EL42199009-199409

15104STRAINER SUB-ASSY, OIL

main15104-11020i3EE..EL42199009-199409

15104ARING, O(FOR OIL STRAINER)

main96721-24015i3EE..EL42199009-199409

15310HREGULATOR ASSY, OIL

main15310-10010i3EE..EL42199009-199409

9011906084

main90119-06084

9017909004

main90179-09004

9161160616

main91611-60616

9161160625

main91611-60625

14 parts on this diagram · 1 diagram in section
