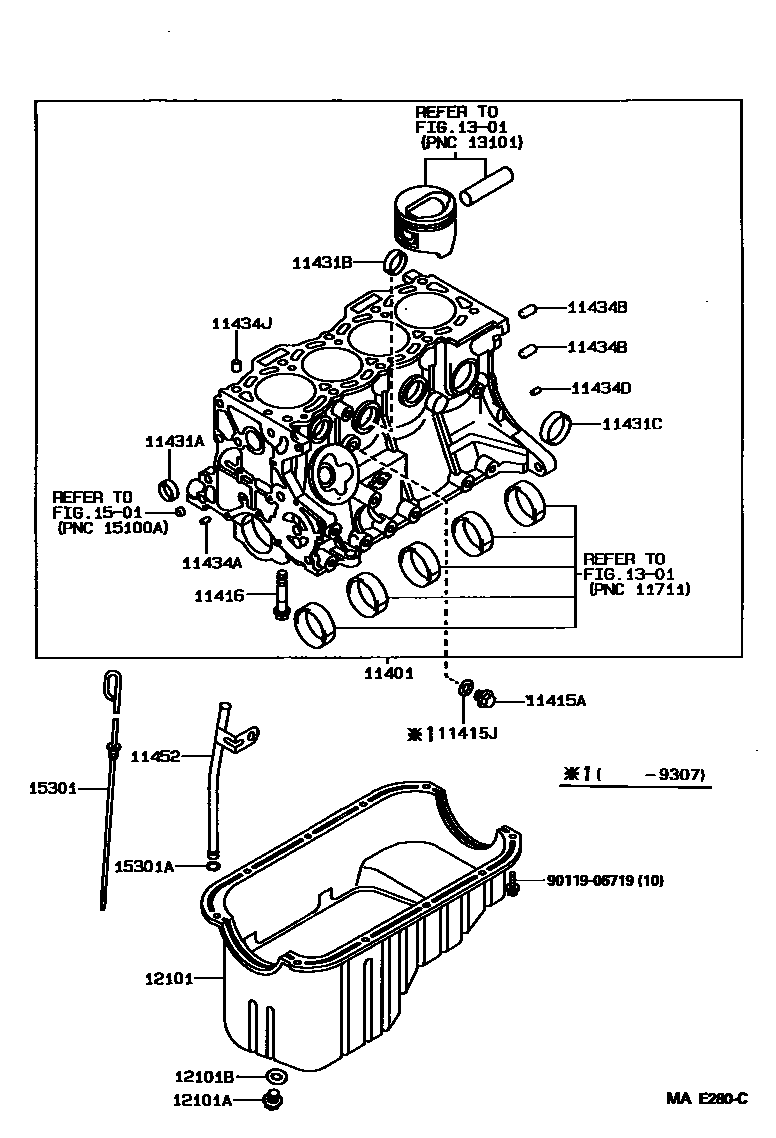

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11415JGASKET(FOR DRAIN COCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=11,OD=6
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=20,OD=10
L=17,OD=15
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=11,OD=6
11434JPIN, RING (FOR CYLINDER HEAD SET)
11452GUIDE, OIL LEVEL GAGE
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1301CRANKSHAFT & PISTON
1501ENGINE OIL PUMP
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
9011906719
main90119-06719
20 parts on this diagram · 1 diagram in section
