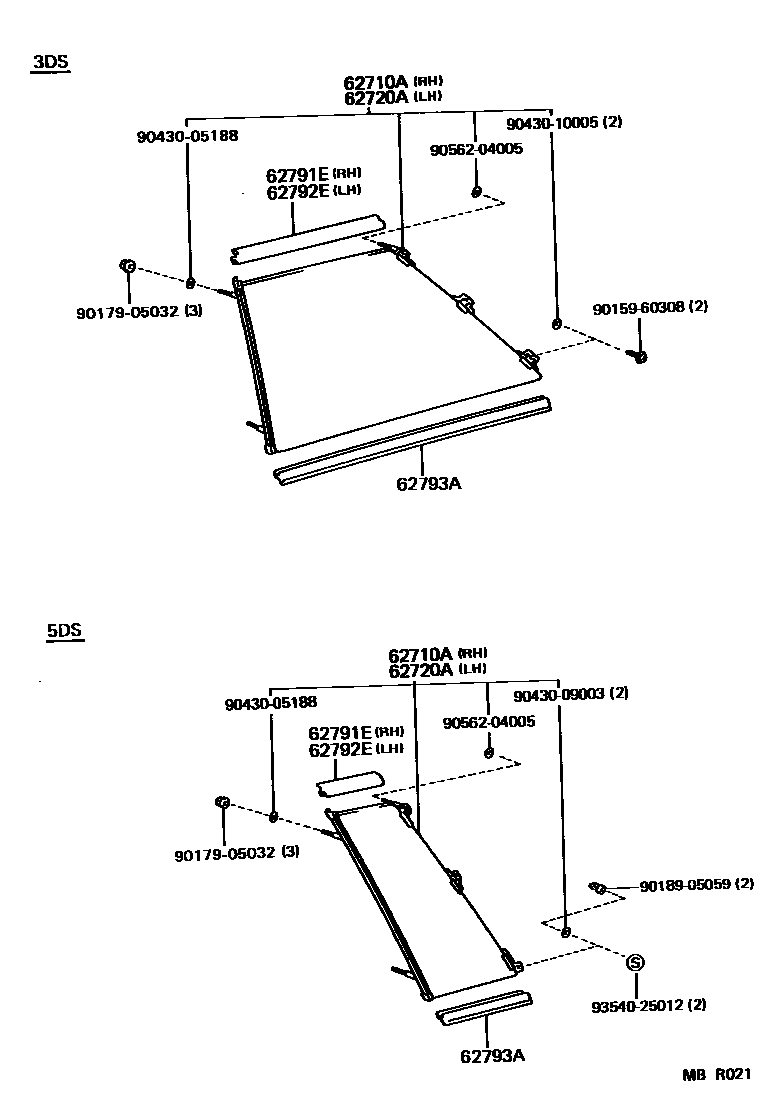

QUARTER WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-16120iEL31..5DS..STD198808-199009

*TEM,T=3.5

main62710-16130iEL31..5DS..DX; EL31..5DS..STD..CND198808-199009

*TT,T=3.5

main62710-16141iEL31..BASE198808-199009

*TEM,T=3.5

main62710-16150iEL31..3DS..STD198808-199009

*TEM,T=3.5

main62710-16160iEL31..3DS..STD198908-199009

*TT,T=3.5

main62710-16180iEL31..2DS..STD198808-198908

*TEM,T=3.5

main62710-16190iEL31..2DS..DX198808-198908

*TT,T=3.5

62720AWINDOW ASSY, QUARTER, LH

main62720-16120iEL31..5DS..STD198808-199009

*TEM,T=3.5

main62720-16130iEL31..5DS..DX; EL31..5DS..STD..CND198808-199009

*TT,T=3.5

main62720-16141iEL31..BASE198808-199009

*TEM,T=3.5

main62720-16150iEL31..3DS..STD198808-199009

*TEM,T=3.5

main62720-16160iEL31..3DS..DX198808-199009

*TT,T=3.5

main62720-16180iEL31..2DS..STD198808-198908

*TEM,T=3.5

main62720-16190iEL31..2DS..DX198808-198908

*TT,T=3.5

62791EMOULDING, QUARTER WINDOW, UPPER RH

main62791-16010iEL31..3DS..(DX,STD)198808-199009

main62791-16020iEL31..5DS198808-199009

main62791-16030iEL31..2DS198808-199009

62792EMOULDING, QUARTER WINDOW, UPPER LH

main62791-16010iEL31..3DS..(DX,STD)198808-199009

main62792-16010iEL31..5DS198808-199009

main62792-16020iEL31..2DS198808-199009

62793AMOULDING, QUARTER WINDOW, LOWER

main62793-16010×2iEL31..3DS..(DX,STD)198808-198908

main62793-16011×2iEL31..3DS..STD198908-199009

main62793-16020×2iEL31..5DS198808-199009

main62793-16050×2iEL31..2DS198808-199009

main62793-16060×2iEL31..2DS..DX198808-199009

W(BLACK DOOR BELT M0ULDING)

9015960308

main90159-60308

9017905032

main90179-05032

9018905059

main90189-05059

9043005188

main90430-05188

9043009003

main90430-09003

9043010005

main90430-10005

9056204005

main90562-04005

9354025012

main93540-25012

13 parts on this diagram · 2 diagrams in section
