MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-16550-01i198808-198908

BLACK,TRIM2#

main58510-16550-04i198808-198908

BLUE,TRIM8#

main58510-16550-06i198808-198908

BROWN,TRIM4#

main58510-16560-01i198808-198908

W(SPLIT REAR SEAT),BLACK,TRIM2#

main58510-16560-04i198808-198908

W(SPLIT REAR SEAT),BLUE,TRIM8#

main58510-16560-06i198808-198908

W(SPLIT REAR SEAT),BROWN,TRIM4#

main58510-16620-01i198808-198908

COLD SPEC & W(SPLIT REAR SEAT),BLACK,TRIM2#; W(SPLIT REAR SEAT),BLACK,TRIM2#

main58510-16620-04i198808-198908

COLD SPEC & W(SPLIT REAR SEAT),BLUE,TRIM8#; W(SPLIT REAR SEAT),BLUE,TRIM8#

main58510-16620-06i198808-198908

COLD SPEC & W(SPLIT REAR SEAT),BROWN,TRIM4#; W(SPLIT REAR SEAT),BROWN,TRIM4#

main58510-16630-01i198808-198908

BLACK,TRIM2#

main58510-16630-04i198808-198908

BLUE,TRIM8#

main58510-16630-06i198808-198908

BROWN,TRIM4#

main58510-16640-01i198808-198908

W(SPLIT REAR SEAT),BLACK,TRIM2#

main58510-16640-04i198808-198908

W(SPLIT REAR SEAT),BLUE,TRIM8#

main58510-16640-06i198808-198908

W(SPLIT REAR SEAT),BROWN,TRIM4#

main58510-16650-01i198808-198908

BLACK,TRIM2#; COLD SPEC,BLACK,TRIM2#

main58510-16650-04i198808-198908

BLUE,TRIM8#; COLD SPEC,BLUE,TRIM8#

main58510-16650-06i198808-198908

BROWN,TRIM4#; COLD SPEC,BROWN,TRIM4#

main58510-16651-01i198908-199009

NEW BLACK,TRIM2#

main58510-16651-04i198908-199009

BLUE,TRIM8#

main58510-16651-06i198908-199009

BROWN,TRIM4#

main58510-16660-01i198808-198908

COLD SPEC & W(SPLIT REAR SEAT),BLACK,TRIM2#; W(SPLIT REAR SEAT),BLACK,TRIM2#

main58510-16660-04i198808-198908

COLD SPEC & W(SPLIT REAR SEAT),BLUE,TRIM8#; W(SPLIT REAR SEAT),BLUE,TRIM8#

main58510-16660-06i198808-198908

COLD SPEC & W(SPLIT REAR SEAT),BROWN,TRIM4#; W(SPLIT REAR SEAT),BROWN,TRIM4#

main58510-16661-01i198908-199009

W(SPLIT REAR SEAT),NEW BLACK,TRIM2#

main58510-16661-04i198908-199009

W(SPLIT REAR SEAT),BLUE,TRIM8#

main58510-16661-06i198908-199009

W(SPLIT REAR SEAT),BROWN,TRIM4#

main58510-16710-01i198808-198908

BLACK,TRIM2#; COLD SPEC,BLACK,TRIM2#

main58510-16710-04i198808-198908

BLUE,TRIM8#; COLD SPEC,BLUE,TRIM8#

main58510-16710-06i198808-198908

BROWN,TRIM4#; COLD SPEC,BROWN,TRIM4#

main58510-16870-01i198808-198908

NEW BLACK,TRIM2#

main58510-16880-01i198808-198908

COLD SPEC,NEW BLACK,TRIM2#; NEW BLACK,TRIM2#

main58510-1G230-01i198908-199009

NEW BLACK,TRIM2#

main58510-1G230-04i198908-199009

BLUE,TRIM8#

main58510-1G230-06i198908-199009

BROWN,TRIM4#

main58510-1G240-01i198908-199009

NEW BLACK,TRIM2#

main58510-1G240-04i198908-199009

BLUE,TRIM8#

main58510-1G240-06i198908-199009

BROWN,TRIM4#

main58510-1G250-01i198908-199009

NEW BLACK,TRIM2#

main58510-1G260-01i198908-199009

NEW BLACK,TRIM2#

main58510-1G270-01i198908-199009

W(SPLIT REAR SEAT),NEW BLACK,TRIM2#

main58510-1G270-04i198908-199009

W(SPLIT REAR SEAT),BLUE,TRIM8#

main58510-1G270-06i198908-199009

W(SPLIT REAR SEAT),BROWN,TRIM4#

main58510-1G280-01i198908-199009

W(SPLIT REAR SEAT),NEW BLACK,TRIM2#

main58510-1G280-04i198908-199009

W(SPLIT REAR SEAT),BLUE,TRIM8#

main58510-1G280-06i198908-199009

W(SPLIT REAR SEAT),BROWN,TRIM4#

main58510-1G290-01i198908-199009

COLD SPEC,NEW BLACK,TRIM2#

main58510-1G290-04i198908-199009

COLD SPEC,BLUE,TRIM8#

main58510-1G290-06i198908-199009

COLD SPEC,BROWN,TRIM4#

main58510-1G300-01i198908-199009

COLD SPEC,NEW BLACK,TRIM2#

main58510-1G310-01i198908-199009

COLD SPEC & W(SPLIT REAR SEAT),NEW BLACK,TRIM2#

main58510-1G310-04i198908-199009

COLD SPEC & W(SPLIT REAR SEAT),BLUE,TRIM8#

main58510-1G310-06i198908-199009

COLD SPEC & W(SPLIT REAR SEAT),BROWN,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06037-01i198808-199009

BLACK,TRIM2#

main90467-06037-14i198808-199009

BLUE,TRIM8#

main90467-06037-26×3i198808-199009

BROWN,TRIM4#

main90467-06037-33i198808-199009

GRAY,TRIM2#,4#,8#

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-06037-01×15i198808-199009

BLACK,TRIM2#,TYPE A

main90467-06037-14×14i198908-199009

BLUE,TRIM8#,TYPE A

main90467-06037-26×15i198808-199009

BROWN,TRIM4#,TYPE A

main90467-10086-01×6i198808-199009

BLACK,TRIM2#,TYPE B

main90467-11037-01×6i198808-199009

BLACK,TRIM2#,TYPE B

main90467-11037-04×6i198808-199009

BLUE,TRIM8#,TYPE B

main90467-11037-06×6i198808-199009

BROWN,TRIM4#,TYPE B

main90467-13037-01×6i198808-199009

BLACK,TRIM2#,TYPE C

main90467-13037-04×6i198808-199009

BLUE,TRIM8#,TYPE C

main90467-13037-06×6i198808-199009

BROWN,TRIM4#,TYPE C

main90467-13040-01×6i198808-199009

BLACK,TRIM2#,TYPE C

58570CCARPET ASSY, REAR FLOOR

main58571-16150-01i198808-198908

W(SPLIT REAR SEAT & REAR SEAT SECURITY LOCK),BLACK,TRIM2#

main58571-16150-04i198908-199009

W(SPLIT REAR SEAT & REAR SEAT SECURITY LOCK),BLUE,TRIM8#

main58571-16150-06i198808-198908

W(SPLIT REAR SEAT & REAR SEAT SECURITY LOCK),BROWN,TRIM4#

main58571-16160-01i198808-199009

W(REAR SEAT SECURITY LOCK),BLACK,TRIM2#

main58571-16160-04i198808-199009

W(REAR SEAT SECURITY LOCK),BLUE,TRIM8#

main58571-16160-06i198808-199009

W(REAR SEAT SECURITY LOCK),BROWN,TRIM4#

main58571-16170-01i198808-199009

BLACK,TRIM2#

main58571-16170-04i198808-199009

BLUE,TRIM8#

main58571-16170-06i198808-199009

BROWN,TRIM4#

main58571-16180-01i198908-199009

W(SPLIT REAR SEAT),BLACK,TRIM2#

main58571-16180-04i198908-199009

W(SPLIT REAR SEAT),BLUE,TRIM8#

main58571-16180-06i198908-199009

W(SPLIT REAR SEAT),BROWN,TRIM4#

main58571-16190-01i198808-199009

BLACK,TRIM2#

main58571-16190-04i198808-199009

BLUE,TRIM8#

main58571-16190-06i198808-199009

BROWN,TRIM4#

main58571-16200-01i198808-199009

W(REAR SEAT SECURITY LOCK),BLACK,TRIM2#

main58571-16200-04i198808-199009

W(REAR SEAT SECURITY LOCK),BLUE,TRIM8#

main58571-16200-06i198808-199009

W(REAR SEAT SECURITY LOCK),BROWN,TRIM4#

main58571-16230-01i198808-199009

NEW BLACK,TRIM2#

main58571-16240-01i198808-199009

W(REAR SEAT SECURITY LOCK),NEW BLACK,TRIM2#

main58571-16270-01i198808-199009

BLACK,TRIM2#

main58571-16280-01i198808-199009

W(REAR SEAT SECURITY LOCK),BLACK,TRIM2#

main58571-16300-01i198808-198908

W(SPLIT REAR SEAT),BLACK,TRIM2#

main58571-16300-04i198908-199009

W(SPLIT REAR SEAT),BLUE,TRIM8#

main58571-16300-06i198808-198908

W(SPLIT REAR SEAT),BROWN,TRIM4#

main58571-16310-01i198808-198908

W(SPLIT REAR SEAT & REAR SEAT SECURITY LOCK),BLACK,TRIM2#

main58571-16310-04i198808-198908

W(SPLIT REAR SEAT & REAR SEAT SECURITY LOCK),BLUE,TRIM8#

main58571-16310-06i198808-198908

W(SPLIT REAR SEAT & REAR SEAT SECURITY LOCK),BROWN,TRIM4#

58572FCARPET, REAR FLOOR, FRONT

main58572-16020-01i198808-198908

BLACK,TRIM2#,4#,8#

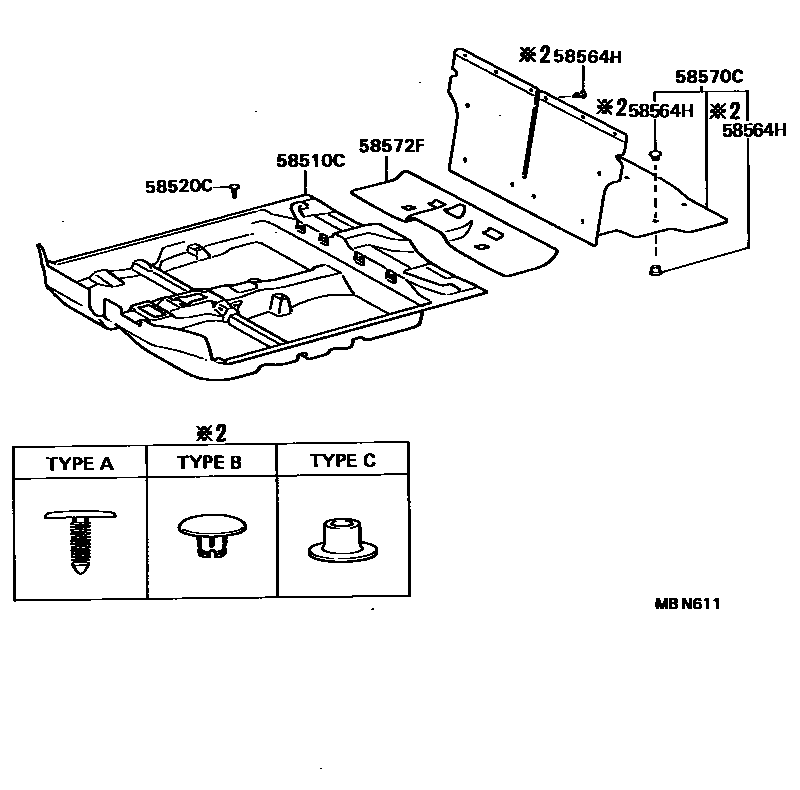

5 parts on this diagram · 1 diagram in section
