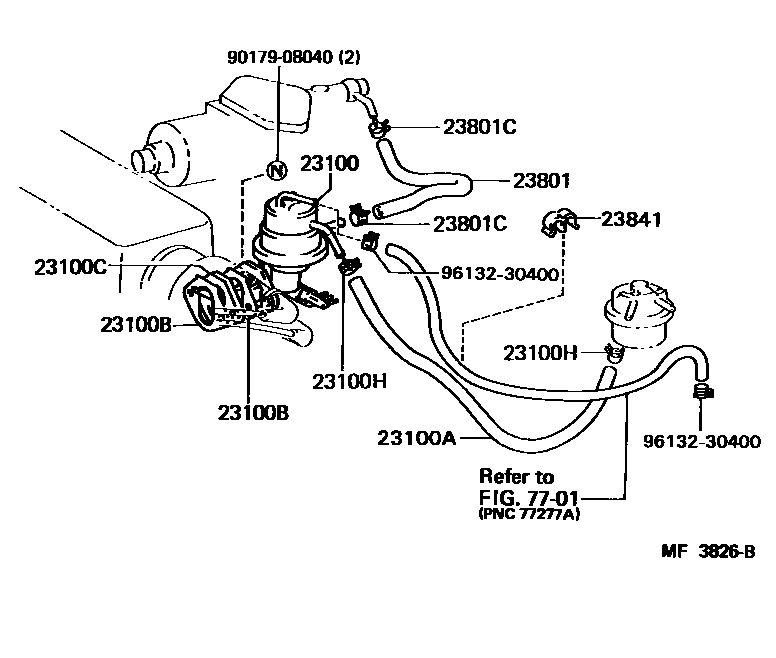

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-11061i3E..EL31198808-199009

23100AHOSE, FUEL

main23271-11090i3E..EL31198912-199009

main95333-06030i3E..EL31198808-198912

23100BGASKET, FUEL PUMP

main90923-05017×2i3E..EL31198808-198912

main90923-05024×2i3E..EL31198912-199009

23100CINSULATOR, FUEL PUMP

main23915-10020i3E..EL31198808-199009

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i3E..EL31198808-199009

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main90447-12086i3E..EL31198808-199009

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-11009×2i3E..EL31198901-199009

main90467-11049×2i3E..EL31198808-198901

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90464-00231i3E..EL31198808-199003

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9017908040

main90179-08040

9613230400

main96132-30400

11 parts on this diagram · 1 diagram in section
