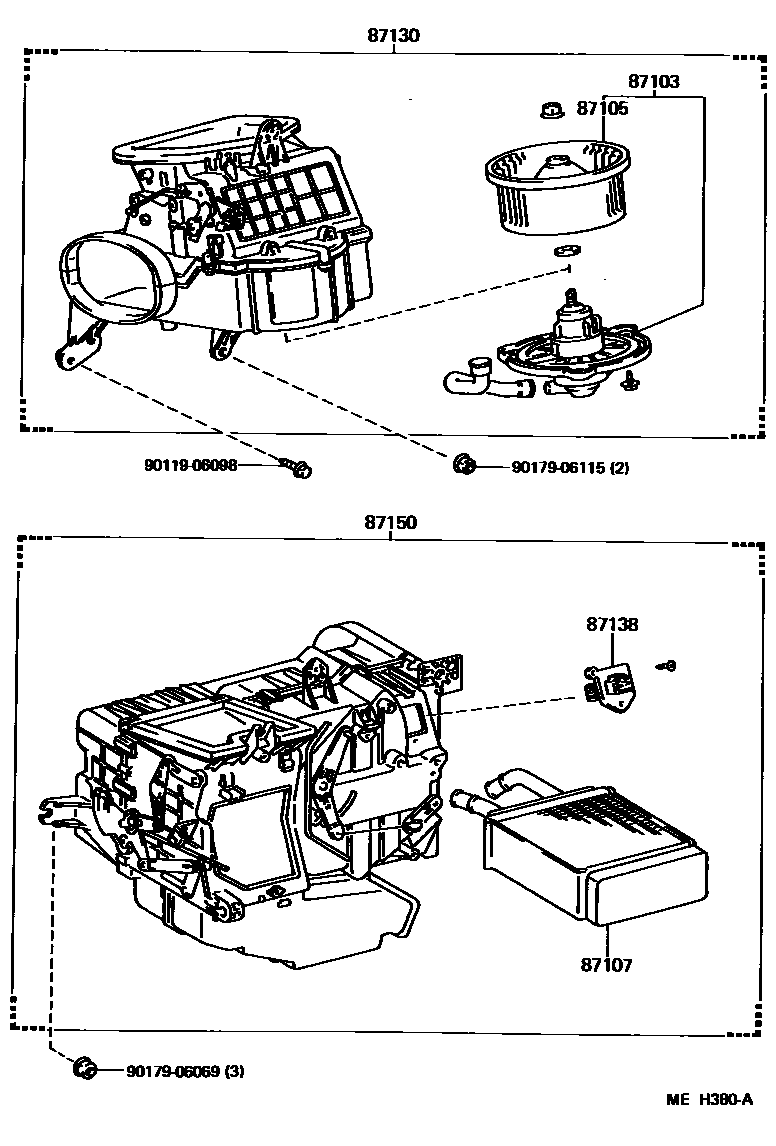

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-16020iEL31198608-198808

87105FAN SUB-ASSY, HEATER BLOWER

main87105-32020iEL31198608-198808

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-16150iEL31..USA198608-198808

main87107-16160iEL31..CND; EL31..USA198608-198808

HEAVY TYPE

87130BLOWER ASSY, HEATER, FRONT

main87130-16120iEL31198608-198808

87138RESISTOR, HEATER BLOWER

main87138-12110iEL31198608-198808

87150RADIATOR ASSY, HEATER

main87150-16210iEL31..USA198608-198808

main87150-16220iEL31..CND; EL31..USA198608-198808

HEAVY TYPE

9011906098

main90119-06098

9017906069

main90179-06069

9017906115

main90179-06115

9 parts on this diagram · 1 diagram in section
