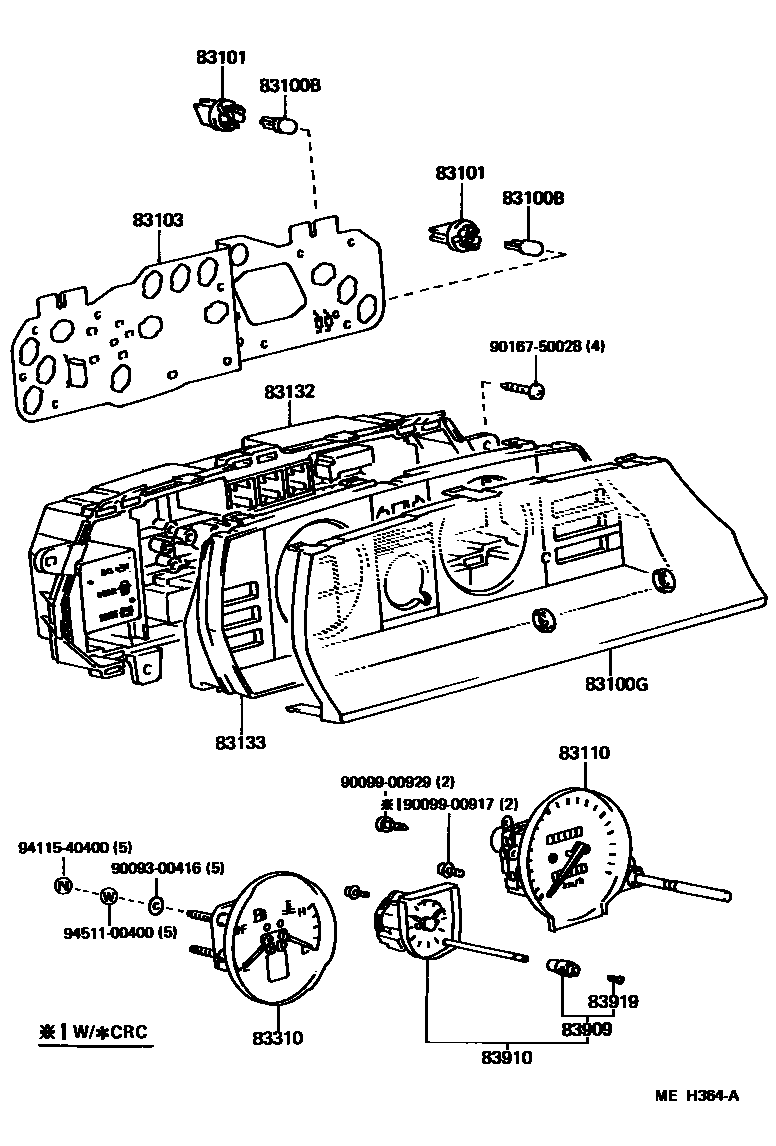

METER
83100BBULB, COMBINATION METER, NO.1
12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP
12V 3.4W,12V 3.4W
83100GGLASS, COMBINATION METER
W/CLOCK
DECONTENT PACKAGE
83101SOCKET SUB-ASSY, COMBINATION METER BULB
83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
W/FUEL LEVEL WARNING & CLOCK
W/FUEL LEVEL WARNING
W/*CRC
W/FUEL WARNING,CLOCK & *CRC
W/FUEL LEVEL WARNING & *CRC
83110SPEEDOMETER ASSY
W/*CRC
W/*CRC
DECONTENT PACKAGE
DECONTENT PACKAGE
83132CASE, COMBINATION METER
W/FUEL LEVEL WARNING
83133PLATE, COMBINATION METER, NO.1
W/CLOCK
DECONTENT PACKAGE
83310GAGE ASSY, FUEL RECEIVER
W/FUEL LEVEL WARNING
W/FUEL LEVEL WARNING
83909KNOB, CLOCK
83910CLOCK ASSY
83919SCREW, CLOCK
9009300416
main90093-00416
9009900917
main90099-00917
9009900929
main90099-00929
9016750028
main90167-50028
9411540400
main94115-40400
9451100400
main94511-00400
17 parts on this diagram · 2 diagrams in section
