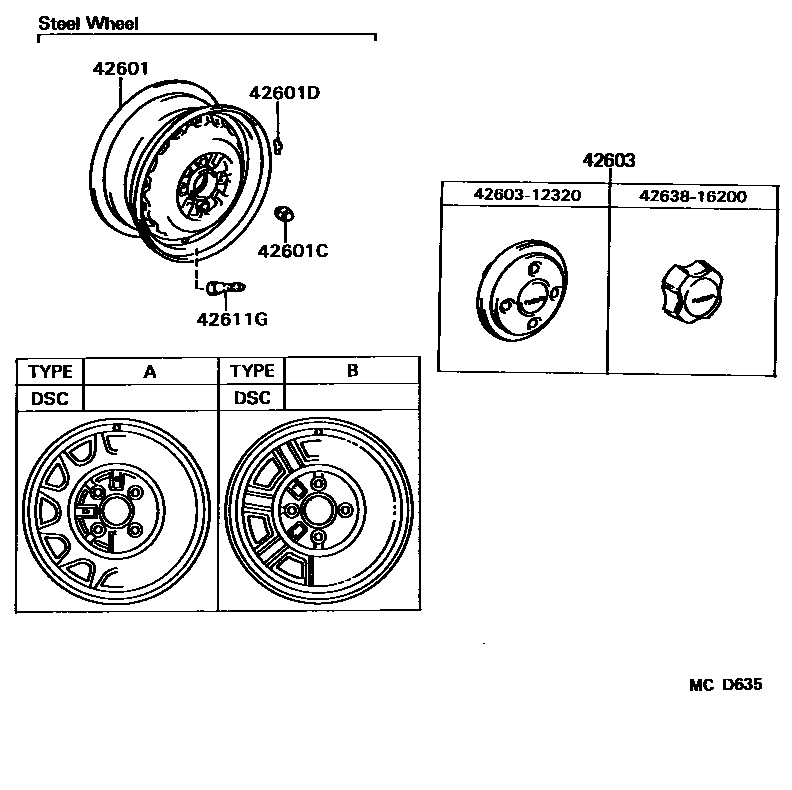

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-10220-01×4iEL31..4F..B198708-198808

13X4.5J,13X4.5J,TYPE A,SILVER

main42611-16150-01×4iEL31..DX,STD;EL31..B..CND198708-198808

13X4.5J,13X4.5J,TYPE B,SILVER

main42611-16340iEL31198608-198808

14X4T,14X4T,SPARE TIRE

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iEL31..DX198608-198808

main90942-01028×16iEL31198608-198808

CAP NUT

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iEL31198608-198808

20G,T=8,20G

main90942-03020iEL31198608-198808

30G,T=10,30G

main90942-03022iEL31198608-198808

40G,T=9.5,40G

main90942-03025iEL31198608-198808

50G,T=9.5,50G

main90942-03027iEL31198608-198808

60G,T=9.5,60G

main90942-03029iEL31198608-198808

70G,T=9.5,70G

main90942-03031iEL31198608-198808

80G,T=9.5,80G

main90942-03041iEL31198608-198808

10G,T=7.5,10G

main90942-03098iEL31198608-198808

15G,15G

main90942-03099iEL31198608-198808

25G,25G

main90942-03100iEL31198608-198808

35G,35G

main90942-03101iEL31198608-198808

45G,45G

main90942-03102iEL31198608-198808

55G,55G

main90942-03108iEL31198608-198808

65G,65G

main90942-03109iEL31198608-198808

75G,75G

main90942-03161iEL31198608-198808

5G,5G

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12320×4iEL31..DX198608-198808

main42638-10170×4iEL31..3DS..(B,STD)198611-198708

*STE,DECONTENT PACKAGE

main42638-16200×4iEL31198608-198708

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iEL31198608-198808

4260312320ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12320

4263816200

main42638-16200

7 parts on this diagram · 1 diagram in section
