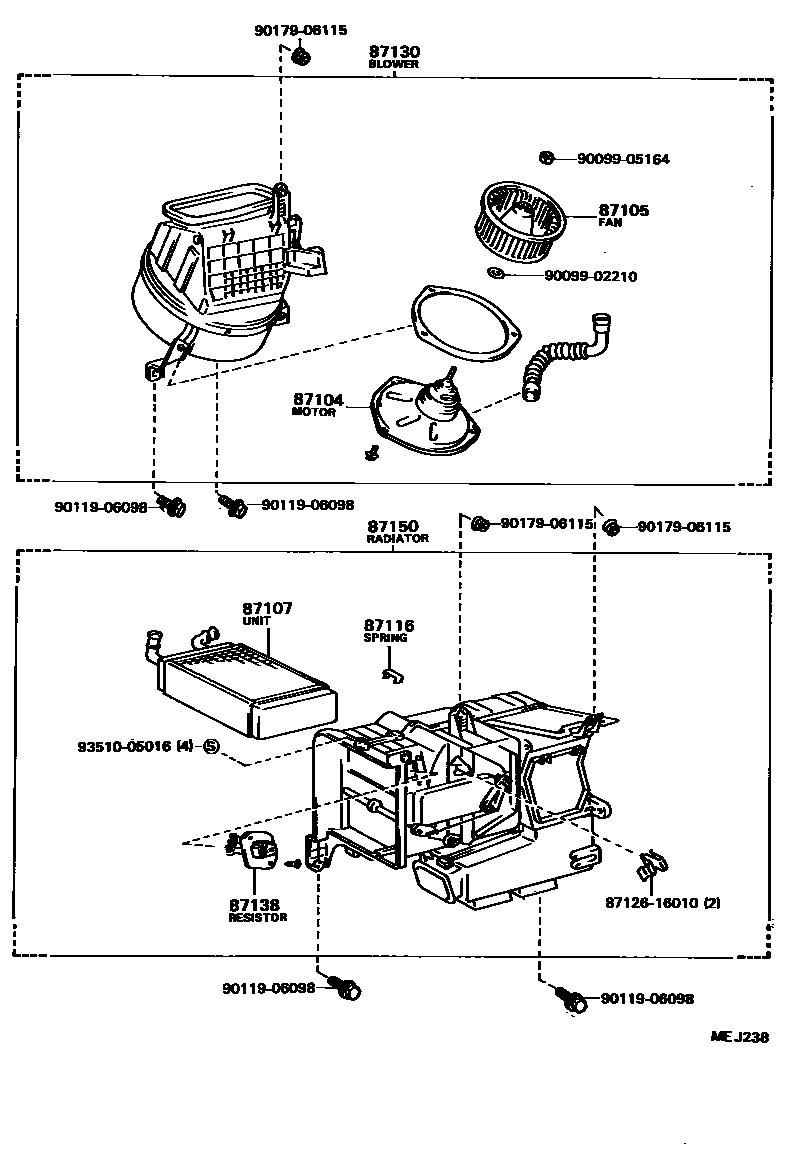

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-12192iAL25..LHD..(EUG,SDZ)198408-198801

EUROPE TYPE,COLD SPEC

main87104-16090iAL20,25..LHD..EUG198205-198408

main87104-16100iAL20,25..RHD198205-198801

main87104-16110iAL21;AL20,25..LHD..GEN198205-198801

main87104-16140iAL25..LHD..EUR198408-198801

EUROPE TYPE

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iAL2#..LHD198205-198801

main87105-14030iAL20,25..RHD198205-198801

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-16060iAL20,25..RHD198205-198408

main87107-16080iAL2#..LHD198205-198801

main87107-16090iAL20,25..LHD..(EUG,SDZ)198205-198801

COLD SPEC

main87107-16100iAL25..RHD198408-198801

87116SPRING, HEATER CASE FASTENING

main87116-14010×7iAL2#198205-198408

87130BLOWER ASSY, HEATER, FRONT

main87130-16030iAL20,25..RHD198205-198801

main87130-16040iAL25..LHD..EUG198408-198801

AIR MIX TYPE

main87130-16050iAL20,25..LHD..EUG198205-198408

main87130-16060iAL25..LHD..EUR198408-198801

EUROPE TYPE

main87130-16070iAL25..LHD..(EUG,SDZ)198408-198801

EUROPE TYPE,COLD SPEC

87138RESISTOR, HEATER BLOWER

main87138-16090iAL20,25..RHD198205-198801

main87138-16100iAL2#..LHD198205-198801

87150RADIATOR ASSY, HEATER

main87150-16070iAL20,25..RHD198205-198408

main87150-16090iAL2#..LHD198205-198408

main87150-16110iAL21..3DS..DLX198209-198408

COLD SPEC

main87150-16120iAL25..RHD..(ARL,GEN)198603-198801

main87150-16140iAL25..LHD198408-198801

main87150-16160iAL25..LHD..(EUG,SDZ)198408-198801

COLD SPEC

main87150-16170iAL25..RHD..EUG198603-198801

8712616010CLAMP, HEATER CONTROL

main87126-16010

9009902210

main90099-02210

9009905164

main90099-05164

9011906098

main90119-06098

9017906115

main90179-06115

9351005016

main93510-05016

13 parts on this diagram · 2 diagrams in section
