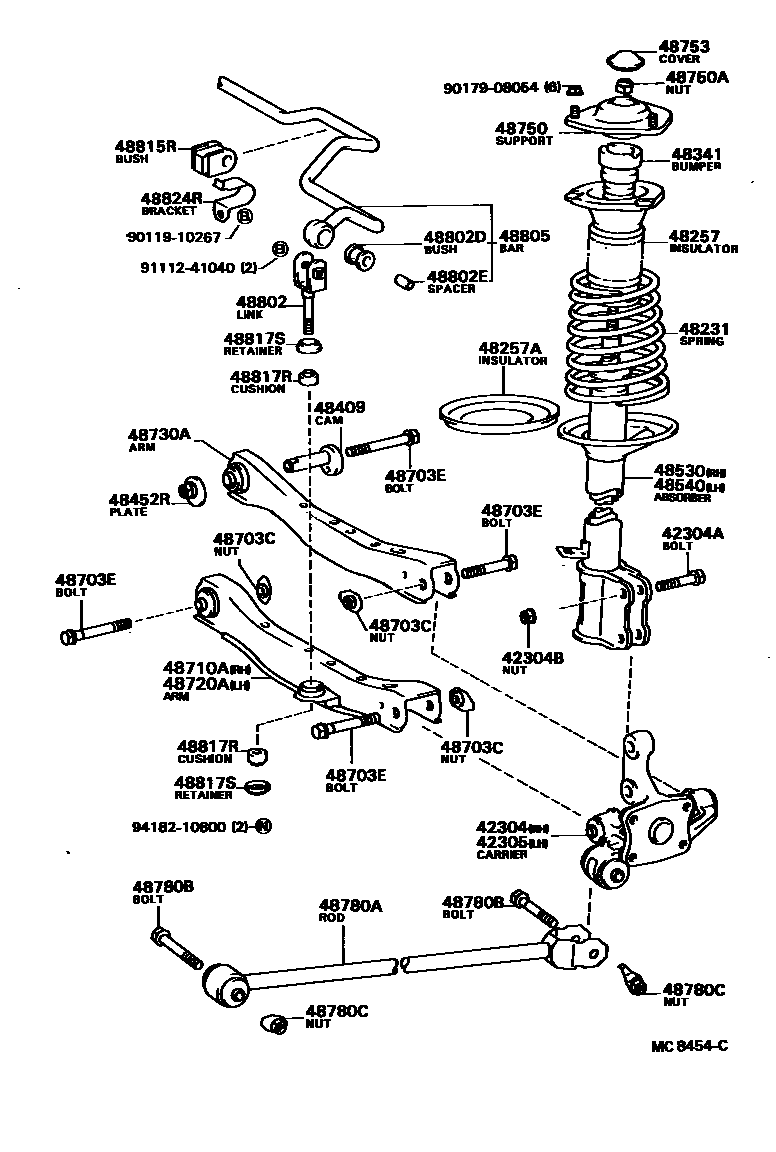

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231SPRING, COIL, REAR
NEW ZEALAND SPEC
48257INSULATOR, REAR COIL SPRING
48257AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
NEW ZEALAND SPEC
NEW ZEALAND SPEC
NEW ZEALAND SPEC
48540ABSORBER ASSY, SHOCK, REAR LH
NEW ZEALAND SPEC
NEW ZEALAND SPEC
NEW ZEALAND SPEC
48703CNUT(FOR REAR SUSPENSION ARM)
NO.1 ARM X CARRIPER
NO.2 ARM X CARRIPER
NO.1 ARM X BODY
48703EBOLT(FOR REAR SUSPENSION ARM)
NO.2 ARM X BODY
NO.2 ARM X CARRIER
*12-1.25PX72-25,NO.1 ARM
48710ARM ASSY, UPPER CONTROL
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720ARM ASSY, LOWER CONTROL, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730ARM ASSY, LOWER CONTROL, LH
48730AARM ASSY, REAR SUSPENSION, NO.2
48750SUPPORT ASSY, REAR SUSPENSION
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
ROD X CARRIPER
ROD X BODY
48802LINK SUB-ASSY, STABILIZER
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
T=1.2
T=1.0
48824RBRACKET, STABILIZER(FOR REAR)
9011910267
main90119-10267
9017908054
main90179-08054
9111241040
main91112-41040
9418210800
main94182-10800
38 parts on this diagram · 2 diagrams in section
