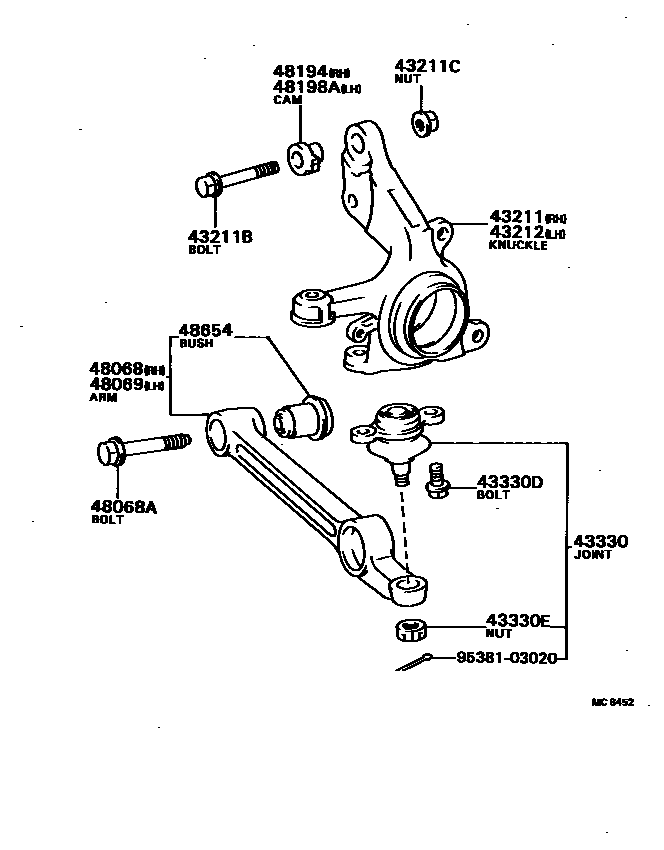

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-16020i198205-198801

43211BBOLT (FOR ABSORBER SETTING)

main90105-12042×4i198205-198801

43211CNUT (FOR ABSORBER SETTING)

main90179-12025×4i198205-198212

main90179-12029×4i198212-198801

43212KNUCKLE, STEERING, LH

main43212-16020i198205-198801

43330JOINT ASSY, LOWER BALL, FRONT

main43330-19025×2i198205-198801

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-10057×4i198205-198801

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main94146-71200×2i198205-198801

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-16030i198205-198801

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12049×2i198205-198801

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-16030i198205-198801

48194CAM, CAMBER ADJUST, RH

main48194-16010i198205-198505

main48194-16011i198505-198801

48198ACAM, CAMBER ADJUST, LH

main48198-16010i198205-198505

main48198-16011i198505-198801

48654BUSH, LOWER ARM

main48654-16040×2i198205-198610

main48654-16050×2i198610-198801

9538103020

14 parts on this diagram · 1 diagram in section
