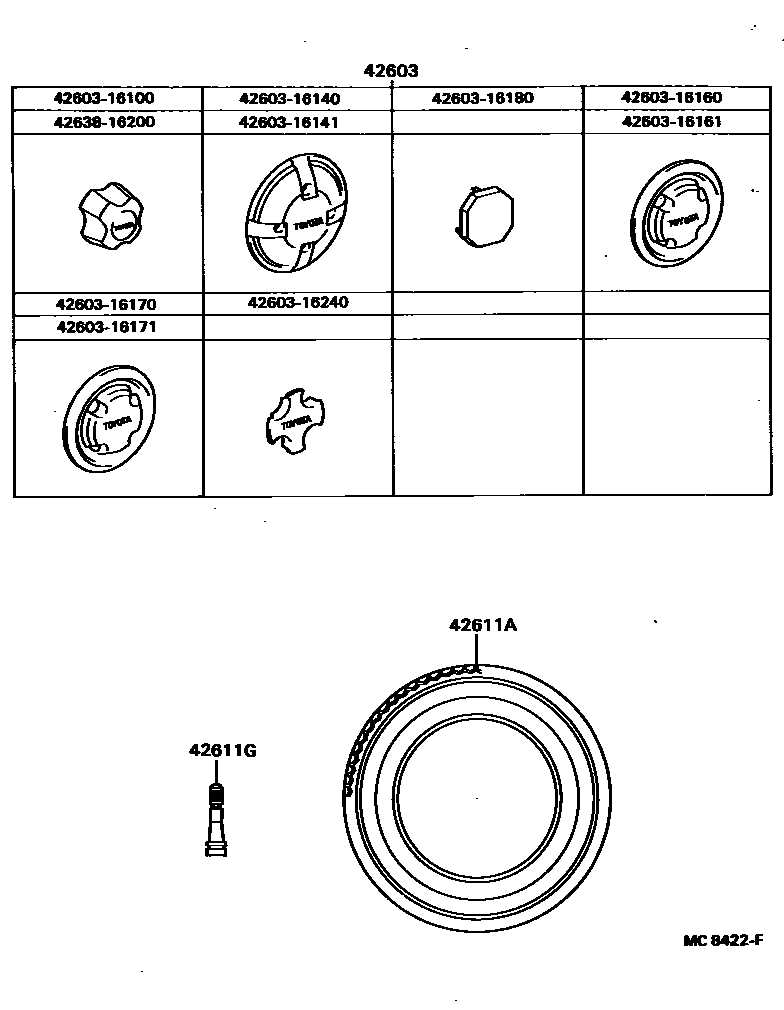

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16100×4iAL20,21..DLX,STD198205-198309

main42603-16140×4iAL20,21..GL198205-198310

main42603-16141×4iAL20,21..GL198310-198408

main42603-16160×4iAL25198208-198310

main42603-16161×4iAL25198310-198605

main42603-16170×4iAL25198208-198310

WHITE

main42603-16171×4iAL25198310-198801

WHITE

main42603-16180×4iAL25..GEN198408-198605

W/ALUMI WHEEL

main42603-16240×4iAL25..GEN; AL25..SR5198605-198801

W/ALUMI WHEEL

main42638-16200×4iAL20,21..DLX,STD198309-198408

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-10060×5iAL25..GEN198605-198801

155SR13,W/T

main42605-12040×5iAL25..GEN198208-198605

155SR13,W/T

main42605-16010×5iAL20..GEN198205-198408

165/70SR13,W/T

main42605-16020×5iAL20..GEN198205-198408

145SR13,W/T

main42605-16060×5iAL25..GEN198605-198801

175/70SR13,W/T

main42605-16080×5iAL25..GEN198401-198801

175/70SR13,W/T,SAND TIRE

main42652-12220×5iAL25198208-198605

155SR13

main42652-16010×5iAL20,21..DLX,GL198205-198408

165/70SR13,T/L

main42652-16020×5iAL20,21198205-198408

145SR13,T/L

main42652-16180×5iAL25..EUR198408-198801

175/70SR13

main42652-16200×5iAL25..ARL198308-198510

175/70SR13

main42652-16230×5iAL25198208-198605

175/70SR13,T/L

main42652-16270×5iAL25..LHD..GEN198503-198605

175/70SR13,MIDDLE EAST SPEC

main42652-16300×5iAL25..GEN198401-198801

175/70SR13,T/L,SAND TIRE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×5iAL25..GEN; AL25..SR5198605-198801

main90942-05009×5iAL2#198205-198801

4260316100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16100

4260316140ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16140

4260316141ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16141

4260316160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16160

4260316161ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16161

4260316170ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16170

4260316171ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16171

4260316180ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16180

4260316240ORNAMENT SUB-ASSY, WHEEL HUB

main42603-16240

4263816200

main42638-16200

13 parts on this diagram · 2 diagrams in section
