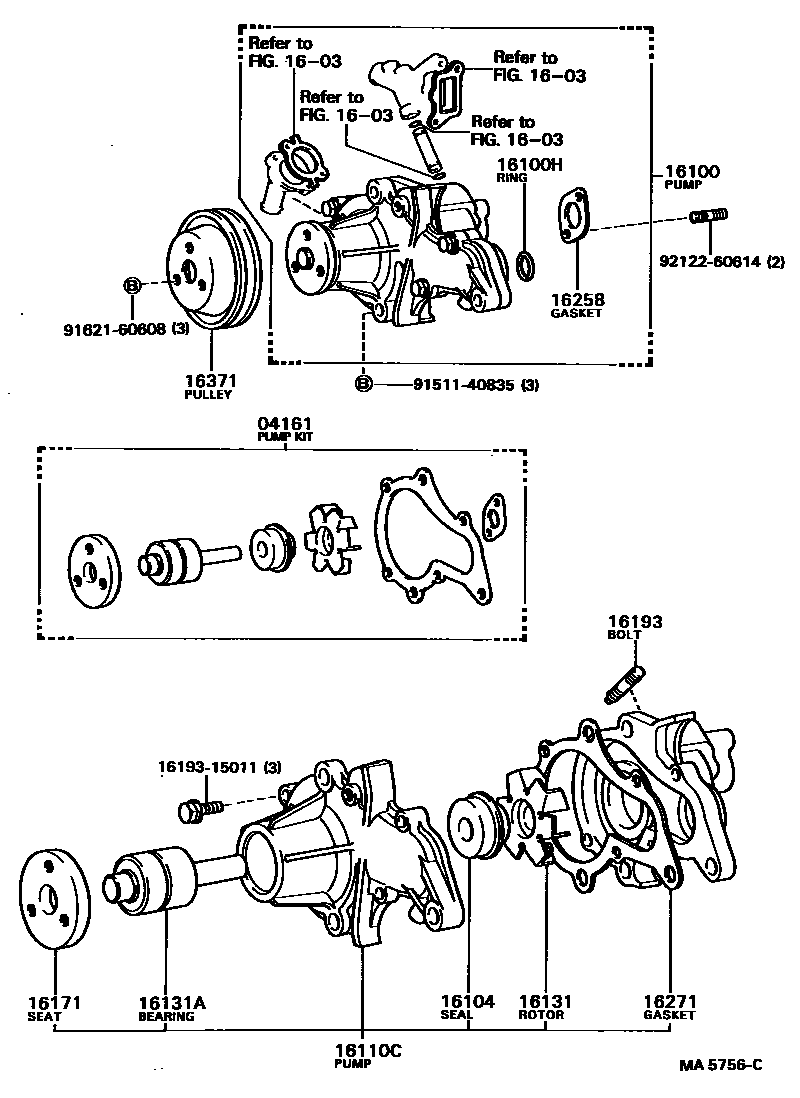

WATER PUMP

04161PUMP KIT, WATER

main04161-15020i3A..AL25;3AC..AL25..ARL; 3AC..AL25..SDZ198605-198801

SWEDEN SPEC

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19027i3A..AL25;3AC..AL25..ARL; 3AC..AL25..SDZ198605-198801

SWEDEN SPEC

main16100-19085i3AC..AL25..EUR198605-198801

16100HRING, O(FOR WATER PUMP)

main96711-24035i2A,3A#..AL2#198205-198801

16104SEAL SET, WATER PUMP

main16104-15020i2A,3A#..AL2#198405-198801

main16104-41111i2A,3A#..AL2#198205-198405

16110CPUMP ASSY, WATER, W/O COVER

main16110-19025i3AC..AL25..EUR198605-198801

main16110-19035i3A..AL25;3AC..AL25..ARL; 3AC..AL25..SDZ198605-198801

SWEDEN SPEC

16131ROTOR, WATER PUMP

main16131-15010i2A,3A#..AL2#198205-198801

16131ABEARING, WATER PUMP

main90369-30024i2A,3A#..AL2#198205-198605

main90369-30045i3AC..AL25..EUR198605-198608

main90369-30064i3AC..AL25..EUR198608-198801

16171SEAT, WATER PUMP PULLEY

main16171-15011i2A,3A#..AL2#198205-198801

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010×2i2A,3A#..AL2#198205-198801

16258GASKET(FOR HEATER RETURN)

main16258-15011i2A,3A#..AL2#198205-198801

16271GASKET, WATER PUMP

main16124-15010i2A,3A#..AL2#198205-198801

16371PULLEY, FAN

main16371-15011i2A,3A#..AL2#198205-198605

main16371-15040i3AC..AL25..EUR198605-198801

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9151140835

main91511-40835

9162160608

main91621-60608

9212260614

main92122-60614

17 parts on this diagram · 1 diagram in section
