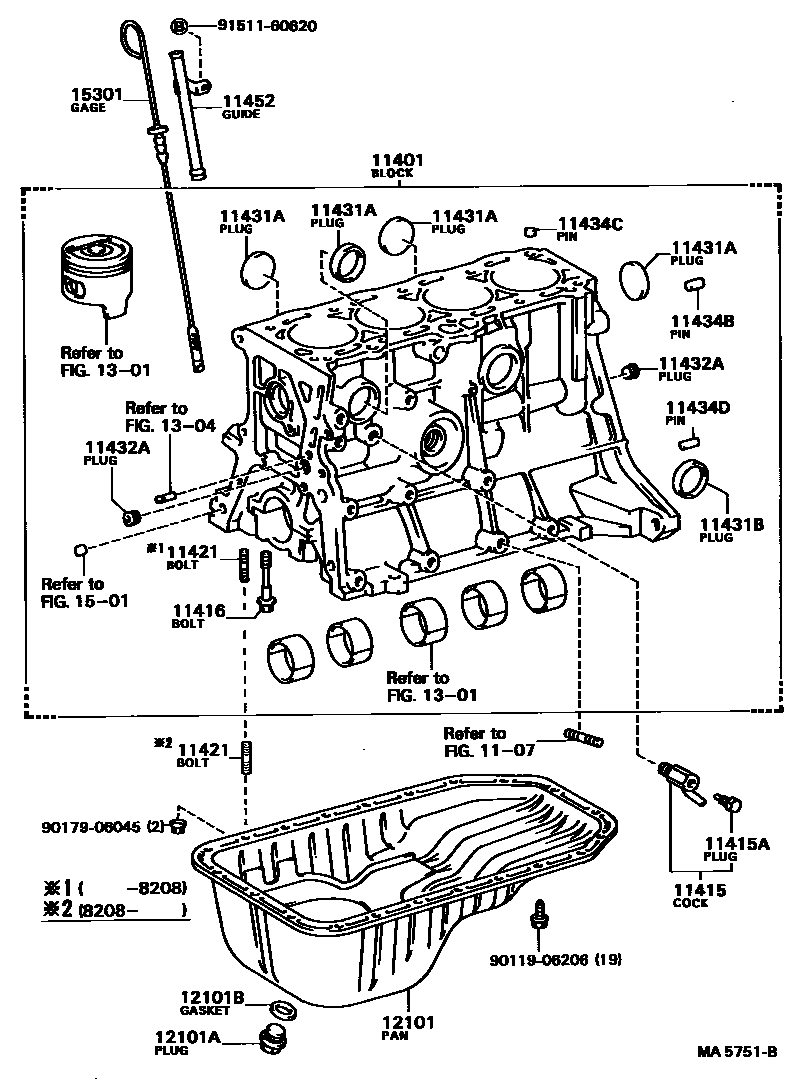

CYLINDER BLOCK

1107MOUNTING

→ Go to FIG 11-07

11401BLOCK SUB-ASSY, CYLINDER

main11401-19127i3A#..AL21,25..EUR,GEN198208-198303

main11401-19145i2A..AL20198205-198208

main11401-19146i2A..AL20198208-198303

main11401-19175i2A..AL20198303-198408

main11401-19185i3A#..AL21,25198303-198801

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i2A,3A#..AL2#..EUR,GEN198205-198212

main90910-09079i2A,3A#..AL2#198212-198406

main90910-09088i2A,3A#..AL2#198406-198801

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i2A,3A#..AL2#198205-198406

main90910-09087i2A,3A#..AL2#198406-198801

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i2A,3A#..AL2#198205-198801

*10-1.25PX61-18

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×2i2A,3A#..AL2#198205-198407

main90116-06049×2i2A,3A#..AL2#198407-198705

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×4i2A,3A#..AL2#198205-198801

OD=35

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i2A,3A#..AL2#198205-198801

OD=40

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008×2i2A,3A#..AL2#198205-198801

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i2A,3A#..AL2#198205-198801

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017×2i2A,3A#..AL2#198205-198801

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i2A,3A#..AL2#198205-198801

L=14,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-15010i2A,3A#..AL2#198205-198801

12101PAN SUB-ASSY, OIL

main12101-15030i2A,3A#..AL2#198205-198407

main12101-15080i2A,3A#..AL2#198407-198801

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2A,3A#..AL2#198407-198801

main90341-18089i2A,3A#..AL2#198205-198407

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i2A,3A#..AL2#198407-198607

main90430-12019i3A#..AL25198607-198801

main90430-18244i2A,3A#..AL2#198205-198407

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1304TIMING BELT

→ Go to FIG 13-04

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15010i2A,3A#..AL2#198205-198801

9011906206

main90119-06206

9017906045

main90179-06045

9151160620

main91511-60620

23 parts on this diagram · 1 diagram in section
