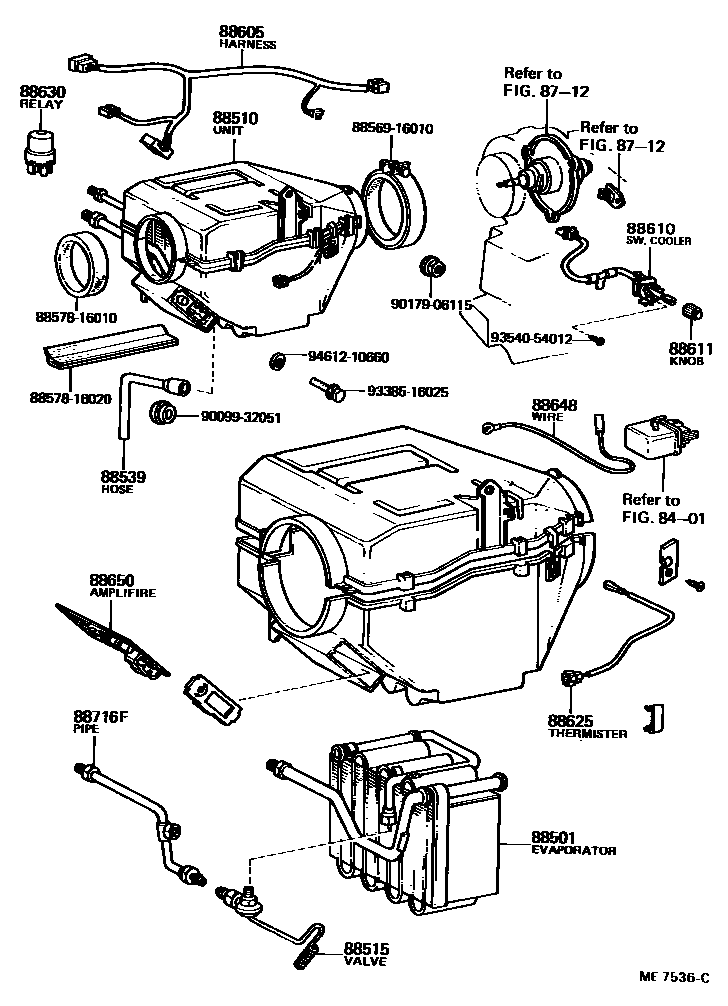

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-16020iAL11..LHD..GEN197901-198204

main88501-16030iAL11..RHD197901-198204

88510UNIT ASSY, COOLER

main88510-16020iAL11..LHD..GEN197901-198204

main88510-16030iAL11..RHD197901-198204

88515VALVE, COOLER EXPANSION

main88515-20040iAL11..GEN197901-198204

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10030iAL11..GEN197901-198204

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-16020iAL11..LHD..GEN197901-198204

main88605-16030iAL11..RHD197901-198204

main88605-16040iAL11..LHD..GEN197901-198008

W/BOOST VENTILATOR

88610SWITCH ASSY, COOLER CONTROL

main84660-16010iAL11..LHD..GEN197901-198204

W/HEATER

main88610-16010iAL11..RHD197901-198204

88611KNOB, COOLER CONTROL SWITCH

main88611-10010iAL11..RHD197901-198008

main88611-16010iAL11..RHD198008-198204

88625THERMISTOR, COOLER, NO.1

main88625-20040iAL11..GEN197901-198204

88630RELAY ASSY, COOLER

main90987-01001iAL11..GEN197901-198204

88648WIRING, COOLER, NO.1

main88648-16010iAL11..GEN197901-198204

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-16010iAL11..LHD..GEN197906-198204

main88650-16020iAL11..GEN197901-197906

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-16031iAL11..RHD197901-198204

main88716-16070iAL11..LHD..GEN197901-198204

8856916010CLAMP (FOR COOLER RELAY)

main88569-16010

8857816010PAKING, COOLER AIR DUCT

main88578-16010

8857816020PAKING, COOLER AIR DUCT

main88578-16020

9009932051

main90099-32051

9017906115

main90179-06115

9338516025

main93385-16025

9354054012

main93540-54012

9461210660

main94612-10660

22 parts on this diagram · 2 diagrams in section
