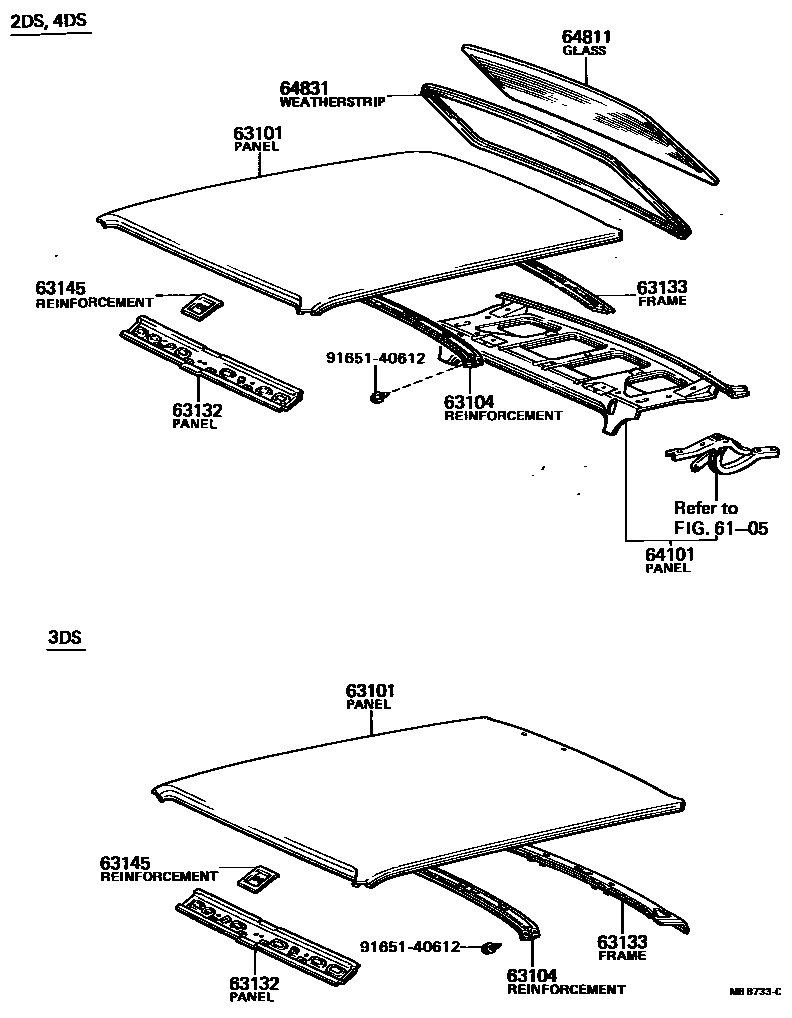

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

63101PANEL SUB-ASSY, ROOF

main63111-16010iAL11..3DS197901-198204

W/RR WIPER

main63111-16020iAL11..2DS,4DS197901-198204

main63111-16030iAL11..3DS197901-198204

main63111-16040iAL11..3DS..DLX198008-198204

W/SUN ROOF & RR WIPER

main63111-16050iAL11..3DS..DLX198008-198204

W/SUN ROOF

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-16010iAL11197901-198204

63132PANEL, WINDSHIELD HEADER, INNER

main63132-16010iAL11197901-198204

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-16010iAL11..3DS197901-198204

main63133-16010iAL11..2DS,4DS197901-198204

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-16010iAL11197901-198204

64101PANEL SUB-ASSY, UPPER BACK

main64101-16010iAL11..2DS,4DS197901-198204

64811GLASS, BACK WINDOW

main64811-16010iAL11..(2DS,4DS)..STD197901-198204

*TEM,T=4.0

main64811-16020iAL11..(2DS,4DS)..DLX..GEN197901-198204

*TT,T=4.0

main64811-16030iAL11..(2DS,4DS)..DLX197901-198204

*EHTT,T=4.0,*DEF=100W

main64811-16040iAL11..(2DS,4DS)..STD197901-198204

*EHT,T=4.0,*DEF=100W

main64811-16050iAL11..(2DS,4DS)..STD..EUR197901-198204

*EHT,T=4.0,*DEF=180W

main64811-16060iAL11..(2DS,4DS)..DLX..EUR197901-198204

*EHTT,T=4.0,*DEF=180W

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-16010iAL11..(2DS,4DS)..DLX197901-198204

W/MOULDING

main64812-16020iAL11..(2DS,4DS)..STD197901-198204

9165140612

main91651-40612

10 parts on this diagram · 2 diagrams in section
