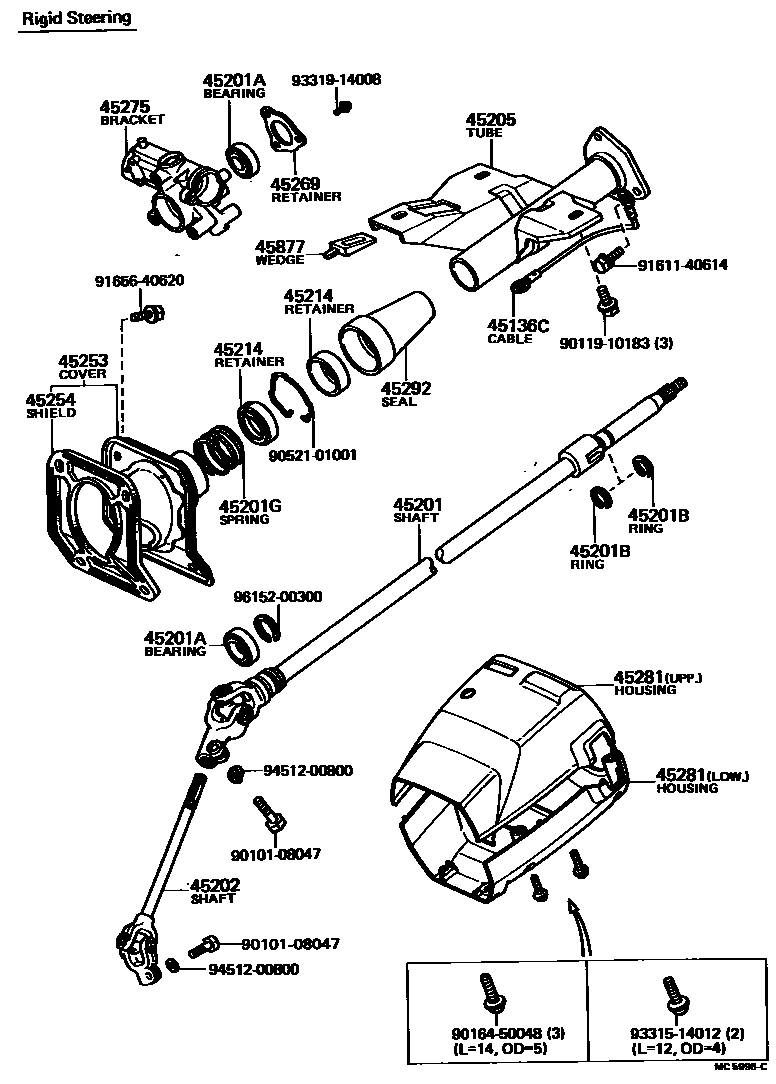

STEERING COLUMN & SHAFT
45136CCABLE, BOND(FOR HORN EARTH)
45201SHAFT SUB-ASSY, STEERING MAIN
COLAPSIBLE
RIGID
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45205TUBE SUB-ASSY, STEERING COLUMN
COLAPSIBLE
RIGID
45214RETAINER, MAIN SHAFT SPRING
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
UPR,BLACK,BLACK,TRIM2#
UPR,BLUE,BLUE,TRIM8#
UPR,BEIGE,BEIGE,TRIM4#
UPR,LIGHT BROWN,BROWN,TRIM4#
UPR,BLACK,BLACK,TRIM2#
UPR,BLUE,BLUE,TRIM8#
UPR,BEIGE,BEIGE,TRIM4#
UPR,LIGHT BROWN,BROWN,TRIM4#
LWR,BLACK,BLACK,TRIM2#
LWR,BLUE,BLUE,TRIM8#
LWR,BEIGE,BEIGE,TRIM4#
LWR,LIGHT BROWN,BROWN,TRIM4#
LWR,BLACK,BLACK,TRIM2#
LWR,BLUE,BLUE,TRIM8#
LWR,BEIGE,BEIGE,TRIM4#
LWR,LIGHT BROWN,BROWN,TRIM4#
45292SEAL, MAIN SHAFT LOWER DUST
45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)
9010108047
main90101-08047
9011910183
main90119-10183
9016450048
main90164-50048
9052101001
main90521-01001
9161140614
main91611-40614
9165640620
main91656-40620
9331514012
main93315-14012
9331914008
main93319-14008
9451200800
main94512-00800
9615200300
main96152-00300
25 parts on this diagram · 4 diagrams in section
