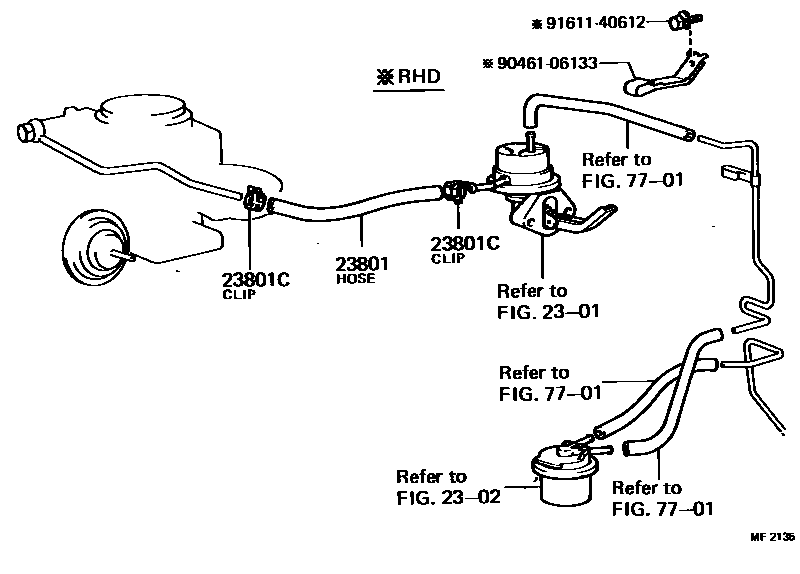

FUEL PIPE & CLAMP

2301FUEL PUMP & PIPE

→ Go to FIG 23-01

2302FUEL FILTER

→ Go to FIG 23-02

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95331-06015i2A..AL11197901-197904

*H,L=150

main95332-06020i2A..AL11197904-198204

L=200(*H,L=150)

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i2A..AL11197901-198204

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9046106133

main90461-06133

9161140612

main91611-40612

7 parts on this diagram · 1 diagram in section
