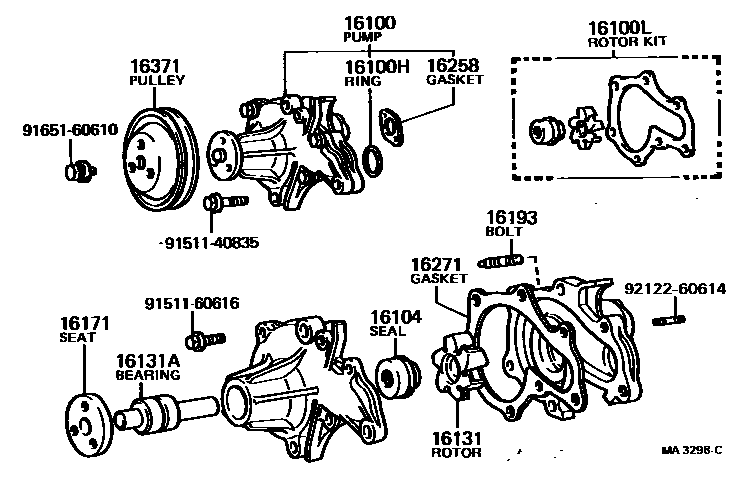

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-19025i2A..AL11197901-198008

main16100-19026i2A..AL11198008-198112

main16100-19027i2A..AL11198112-198204

16100HRING, O(FOR WATER PUMP)

main96710-02035i2A..AL11197901-198112

main96711-24035i2A..AL11198112-198204

16100LROTOR KIT, WATER PUMP

main04162-15010i2A..AL11197901-198008

16104SEAL SET, WATER PUMP

main16104-41110i2A..AL11197901-198002

main16104-41111i2A..AL11198002-198204

16131ROTOR, WATER PUMP

main16131-15010i2A..AL11197901-198204

16131ABEARING, WATER PUMP

main90369-26001i2A..AL11197901-198008

main90369-30024i2A..AL11198008-198204

16171SEAT, WATER PUMP PULLEY

main16171-15010i2A..AL11197901-198008

main16171-15011i2A..AL11198008-198204

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010×2i2A..AL11197901-198204

16258GASKET(FOR HEATER RETURN)

main16258-15010i2A..AL11197901-198112

main16258-15011i2A..AL11198112-198204

16271GASKET, WATER PUMP

main16124-15010i2A..AL11197901-198204

16371PULLEY, FAN

main16371-15010i2A..AL11197901-198008

main16371-15011i2A..AL11198008-198204

9151140835

main91511-40835

9151160616

main91511-60616

9165160610

main91651-60610

9212260614

main92122-60614

15 parts on this diagram · 2 diagrams in section
