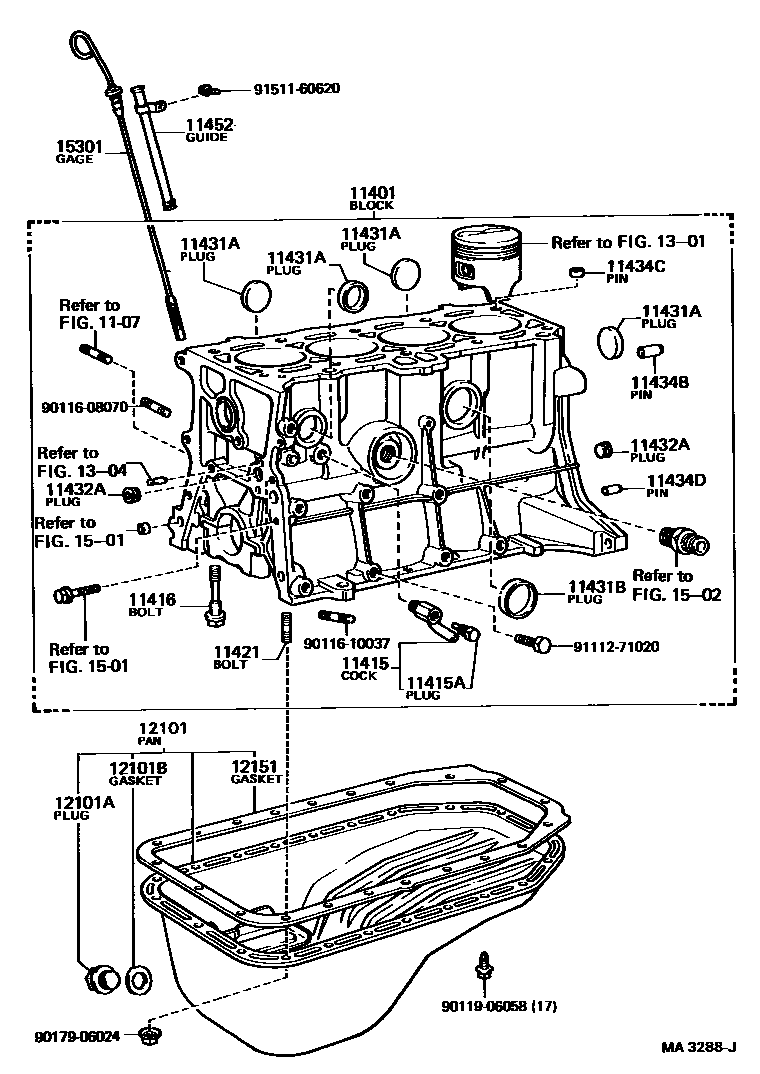

CYLINDER BLOCK

1107MOUNTING

→ Go to FIG 11-07

11401BLOCK SUB-ASSY, CYLINDER

main11401-19065i2A..AL11197901-198108

main11401-19066i2A..AL11198108-198204

main11401-19116i2A..AL11198204-198204

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09061i2A..AL11197901-198201

main90910-09075i2A..AL11198201-198204

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90109-10023i2A..AL11197901-198204

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i2A..AL11197901-198204

*10-1.25PX61-18

11421BOLT, STUD(FOR OIL PAN)

main92122-60612×2i2A..AL11197901-198204

L=21,S=9&9

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×4i2A..AL11197901-198204

OD=35

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i2A..AL11197901-198204

OD=40

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008×2i2A..AL11197901-198204

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i2A..AL11197901-198204

L=22,OD=10,L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017×2i2A..AL11197901-198204

L=12,OD=13,L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i2A..AL11197901-198204

L=14,OD=6,L=14,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-15010i2A..AL11197901-198204

12101PAN SUB-ASSY, OIL

main12101-15030i2A..AL11198204-198204

main12101-19045i2A..AL11197901-198204

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i2A..AL11197901-198204

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i2A..AL11197901-198204

12151GASKET, OIL PAN

main12151-15010i2A..AL11197901-198204

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1304TIMING BELT

→ Go to FIG 13-04

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1502OIL FILTER

→ Go to FIG 15-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15010i2A..AL11197901-198204

9011608070

main90116-08070

9011610037

main90116-10037

9011906058

main90119-06058

9017906024

main90179-06024

9111271020

main91112-71020

9151160620

main91511-60620

28 parts on this diagram · 1 diagram in section
