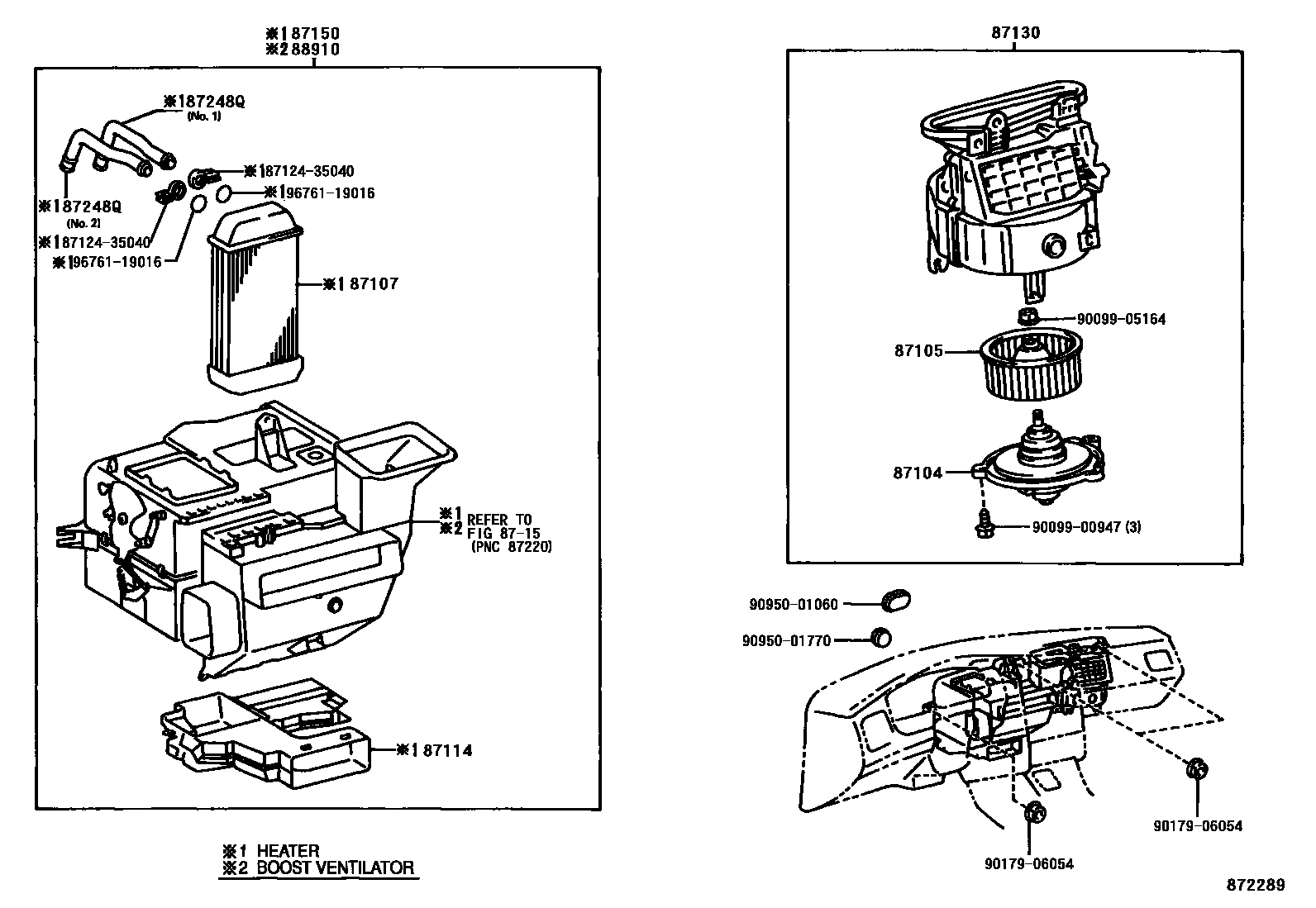

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-10250iEP91..RHD199601

main87104-10260iEP91..LHD199601

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iEP91..LHD199601

main87105-14030iEP91..RHD199601

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-10330iEP91199601

main87107-10350iEP91..LHD199601

W(RR HEATER DUCT)

87114COVER, HEATER

main87114-16050iEP91..RHD199601

main87114-16070iEP91..LHD199601

main87114-16080iEP91..LHD199601

W(RR HEATER DUCT)

87130BLOWER ASSY, HEATER, FRONT

main87130-10190iEP91..RHD199601

main87130-10210iEP91..LHD199601

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-10450iEP91..RHD199601

main87150-10490iEP91..LHD199601

main87150-10500iEP91..LHD199601

W(RR HEATER DUCT)

87248QPIPE, FRONT HEATER RADIATOR WATER

main87156-10010iEP91..RHD199601

NO.1

main87156-10020iEP91..RHD199601

NO.2

main87156-10070iEP91..LHD199601

NO.1

main87156-10080iEP91..LHD199601

NO.2

88910VENTILATOR ASSY, BOOST

main88910-16080iEP91..LHD199601

8712435040CLAMP, HEATER

main87124-35040

9009900947

main90099-00947

9009905164

main90099-05164

9017906054

main90179-06054

9095001060

main90950-01060

9095001770

main90950-01770

9676119016

main96761-19016

16 parts on this diagram · 1 diagram in section
