INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-10041-B0iEP91199601-199907

LT.BLUISH GRAY,TRIM1#

main81240-22081-B1iEP91199601-199907

W(MOON ROOF),LT.BLUISH GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iEP91199601

12V 8W

main99132-12100iEP91199601

12V 10W,W(MOON ROOF)

81241LENS, ROOM LAMP, NO.1

main81241-10030iEP91199601

main81241-20060iEP91199601

W(MOON ROOF)

81260ALAMP ASSY, MAP

main81260-10050-B1iEP91199601-199907

LT.BLUISH GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12014iEP91199601

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-10050-B0iEP91199601-199712

GRAY,TRIM1#

main81261-10050-B1iEP91199712-199907

LT. BLUISH GRAY,TRIM1#

9324924016

main93249-24016

9354014516

main93540-14516

9356014016

main93560-14016

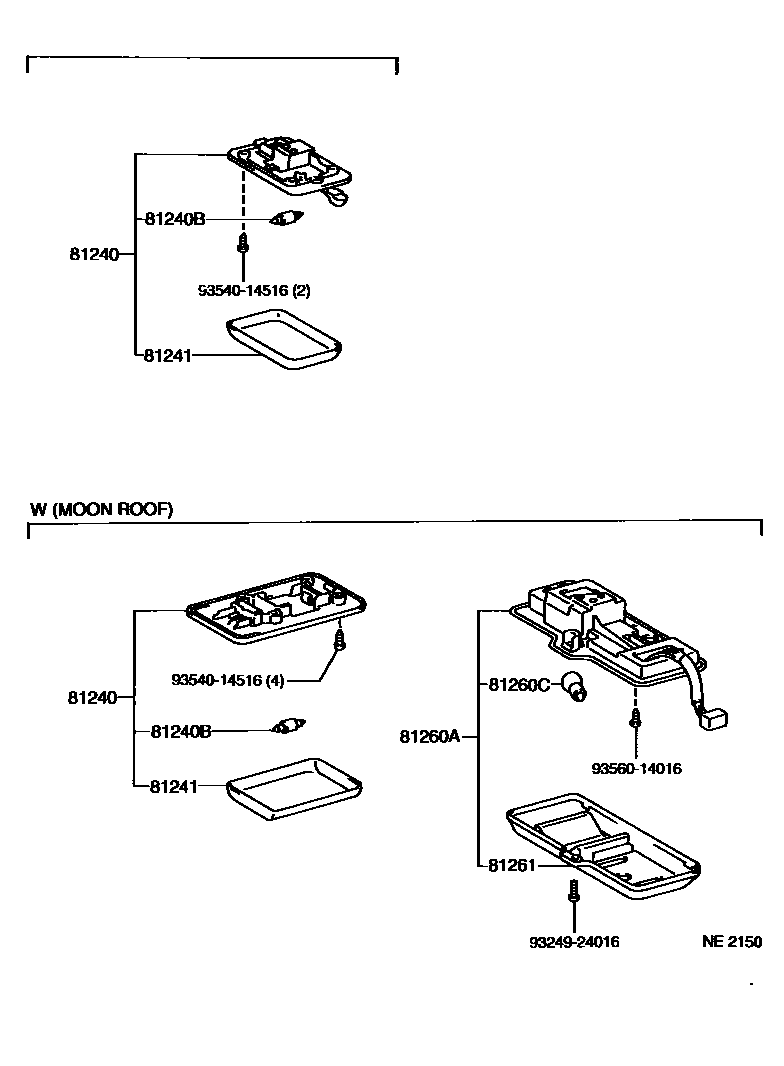

9 parts on this diagram · 1 diagram in section
