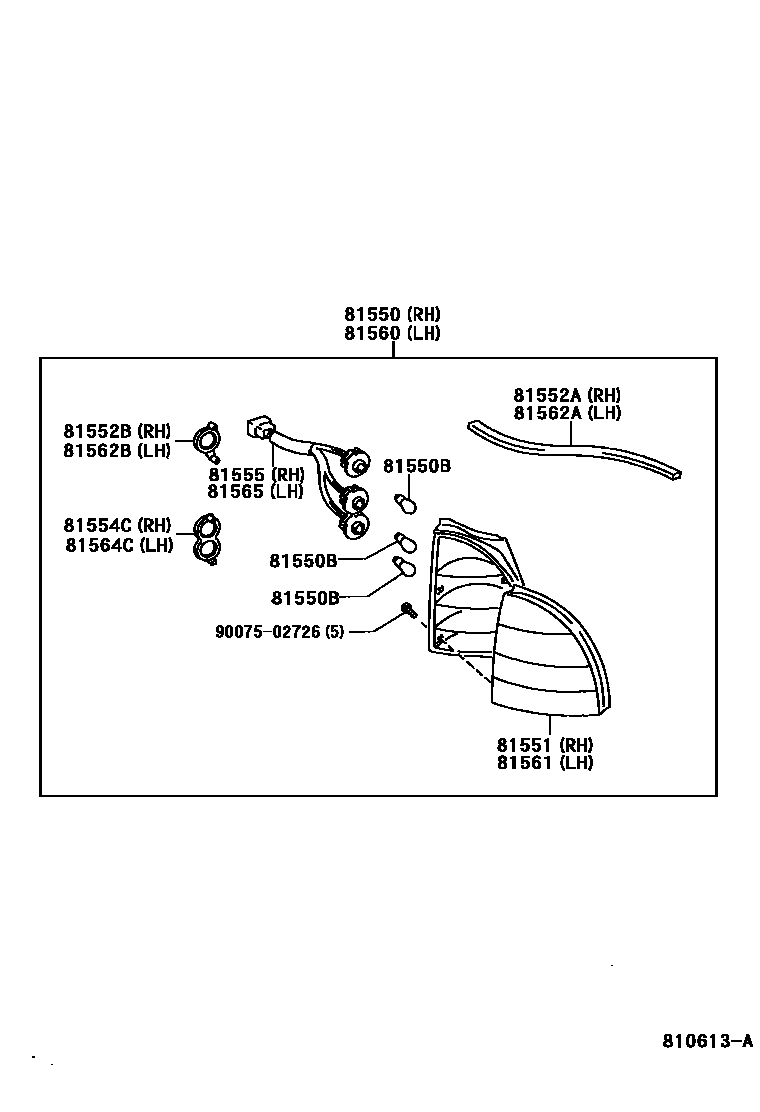

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-10320iEP91..LHD199601

main81550-10330iEP91..RHD199601

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iEP91199601

12V 21W

main99132-21210×2iEP91199601

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-10320iEP91..LHD199601

main81551-10330iEP91..RHD199601

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-10340iEP91199601

81552BPACKING, REAR COMBINATION LAMP BODY, RH

main81552-10320iEP91199601

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81554-10320iEP91199601

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-10320iEP91..LHD199601

main81555-10330iEP91..RHD199601

81560LAMP ASSY, REAR COMBINATION, LH

main81560-10300iEP91..LHD; EP91..RHD199601

W/O(RR FOG LAMP)

main81560-10310iEP91..LHD199601

81561LENS, REAR COMBINATION LAMP, LH

main81561-10300iEP91..LHD; EP91..RHD199601

W/O(RR FOG LAMP)

main81561-10310iEP91..LHD199601

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-10340iEP91199601

81562BPACKING, REAR COMBINATION LAMP BODY, LH

main81552-10320iEP91199601

81564CPACKING, REAR COMBINATION LAMP BODY, LH

main81554-10320iEP91199601

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-10300iEP91..LHD; EP91..RHD199601

W/O(RR FOG LAMP)

main81565-10310iEP91..LHD199601

9007502726

main90075-02726

14 parts on this diagram · 1 diagram in section
