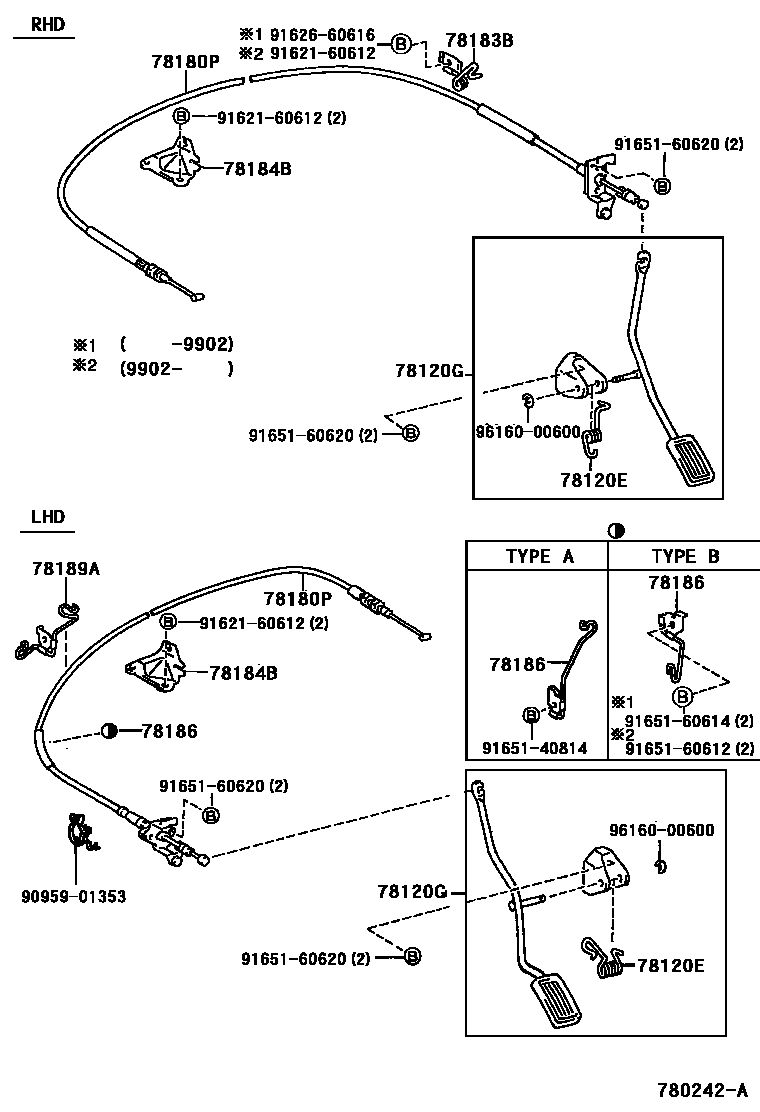

ACCELERATOR LINK

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-17003iEP91..LHD199601

main90508-20114iEP91..RHD199601

78120GROD ASSY, ACCELERATOR PEDAL

main78120-10080iEP91..RHD199601

main78120-10090iEP91..LHD199601

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-10620iEP91..LHD199601

main78180-16420iEP91..RHD199601

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10061iEP91..RHD199601

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-16070iEP91199601

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-16180iEP91..LHD199601

TYPE A

main78186-16190iEP91..LHD199601

TYPE B

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-10010iEP91..LHD199601

9095901353

main90959-01353

9162160612

main91621-60612

9162660616

main91626-60616

9165140814

main91651-40814

9165160612

main91651-60612

9165160614

main91651-60614

9165160620

main91651-60620

9616000600

main96160-00600

15 parts on this diagram · 1 diagram in section
