EPC Data

FRONT DOOR PANEL & GLASS

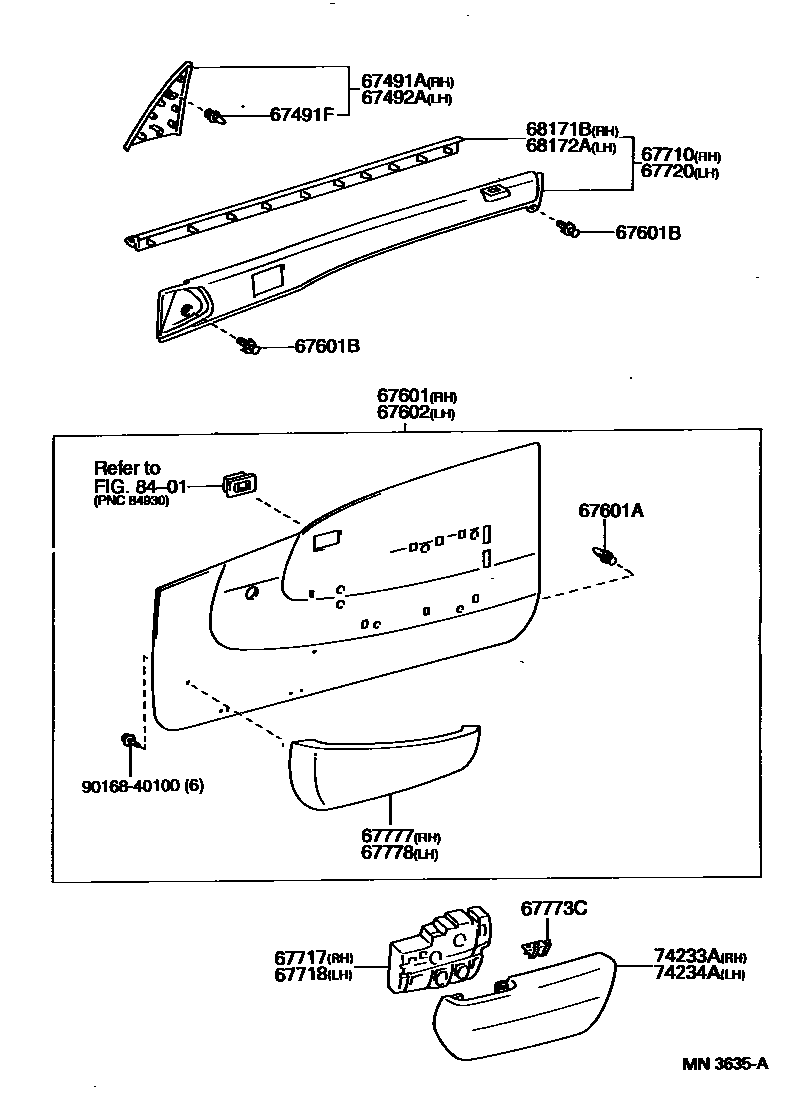

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-10160i199601
67491FCLIP(FOR DOOR TRIM)
main67771-30070i199601
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-10160i199601
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-1P070-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P070-B2i199804-199808
COOL WATER PACKAGE,GRAY/BLUE,TRIM10
main67610-1P070-B3i199804-199808
COOL WATER PACKAGE,GRAY/GREEN,TRIM10
main67610-1P080-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P090-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P100-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P100-B2i199804-199808
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,GRAY/BLUE,TRIM10
main67610-1P100-B3i199804-199808
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,GRAY/GREEN,TRIM10
main67610-1P110-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P110-B3i199804-199808
GERMANY, U.K, FRANCE, HOLLAND SPEC & W(POWER WINDOW),GRAY/GREEN
main67610-1P120-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P130-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P140-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P150-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P160-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P190-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P190-B2i199804-199808
COOL WATER PACKAGE,GRAY/BLUE,TRIM10
main67610-1P190-B3i199804-199808
COOL WATER PACKAGE,GRAY/GREEN,TRIM10
main67610-1P200-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P210-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P230-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P230-B2i199804-199808
COOL WATER PACKAGE,GRAY/BLUE,TRIM10
main67610-1P230-B3i199804-199808
COOL WATER PACKAGE,GRAY/GREEN,TRIM10
main67610-1P240-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P250-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P260-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P270-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P290-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P300-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67610-1P370-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET)-*104,BLUISH GRAY,TRIM1#
main67610-1P380-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,BLUISH GRAY,TRIM1#
main67610-1P390-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK & *PW)-*104,BLUISH GRAY,TRIM1#
main67610-1P400-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET)-*104,BLUISH GRAY,TRIM1#
main67610-1P410-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER WINDOW)-*104,BLUISH GRAY,TRIM1#
main67610-1P420-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET)-*104,BLUISH GRAY,TRIM1#
main67610-1P430-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,BLUISH GRAY,TRIM1#
main67610-1P440-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK & *PW)-*104,BLUISH GRAY,TRIM1#
main67610-1P450-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET)-*104,BLUISH GRAY,TRIM1#
main67610-1P460-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK & *PW)-*104,BLUISH GRAY,TRIM1#
main67650-1M480-B0i199601-199712
LT.BLUISH GRAY,TRIM1#
main67650-1M490-B0i199601-199712
W(POWER DOOR LOCK),LT.BLUISH GRAY,TRIM1#
main67650-1M500-B0i199601-199712
W(POWER WINDOW),LT.BLUISH GRAY,TRIM1#
main67650-1M520-B0i199601-199712
LT.BLUISH GRAY,TRIM1#
main67650-1M530-B0i199601-199712
W(POWER WINDOW),LT.BLUISH GRAY,TRIM1#
main67650-1M540-B0i199601-199712
W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M550-B0i199601-199712
W(FULL FABRIC SEAT & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M560-B0i199601-199712
W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M580-B0i199601-199712
W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M590-B0i199601-199712
W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M680-B0i199601-199712
LT.BLUISH GRAY,TRIM1#
main67650-1M690-B0i199601-199712
W(POWER DOOR LOCK),LT.BLUISH GRAY,TRIM1#
main67650-1M700-B0i199601-199712
W(POWER WINDOW),LT.BLUISH GRAY,TRIM1#
main67650-1M720-B0i199601-199712
LT.BLUISH GRAY,TRIM1#
main67650-1M730-B0i199601-199712
W(POWER WINDOW),LT.BLUISH GRAY,TRIM1#
main67650-1M740-B0i199601-199712
W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M750-B0i199601-199712
W(FULL FABRIC SEAT & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M760-B0i199601-199712
W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M780-B0i199601-199712
W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#
main67650-1M790-B0i199601-199712
W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-16120i199601
GRAY
main90467-08179i199601
YELLOW
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07152-B1i199601-199907
BLUISH GRAY,TRIM1#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-10040-B0i199601-199712
LT.BLUISH GRAY,TRIM1#
main67050-10050-B0i199601-199712
W(POWER WINDOW),LT.BLUISH GRAY,TRIM1#
main67050-10060-B0i199601-199712
LT.BLUISH GRAY,TRIM1#
main67050-10070-B0i199601-199712
W(POWER DOOR LOCK),LT.BLUISH GRAY,TRIM1#
main67050-10080-B0i199601-199712
W(POWER WINDOW),LT.BLUISH GRAY,TRIM1#
main67050-10100-B0i199601-199712
W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10110-B0i199601-199712
W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10120-B0i199601-199712
W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10130-B0i199601-199712
W(FULL FABRIC SEAT & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10140-B0i199601-199712
W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10230-B0i199601-199712
LT.BLUISH GRAY,TRIM1#
main67050-10240-B0i199601-199712
W(POWER WINDOW),LT.BLUISH GRAY,TRIM1#
main67050-10250-B0i199601-199712
LT.BLUISH GRAY,TRIM1#
main67050-10260-B0i199601-199712
W(POWER DOOR LOCK),LT.BLUISH GRAY,TRIM1#
main67050-10270-B0i199601-199712
W(POWER WINDOW),LT.BLUISH GRAY,TRIM1#
main67050-10290-B0i199601-199712
W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10300-B0i199601-199712
W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10310-B0i199601-199712
W(FULL FABRIC SEAT)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10320-B0i199601-199712
W(FULL FABRIC SEAT & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67050-10330-B0i199601-199712
W(FULL FABRIC SEAT & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10390-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10390-B2i199804-199808
COOL WATER PACKAGE,GRAY/BLUE,TRIM10
main67660-10390-B3i199804-199808
COOL WATER PACKAGE,GRAY/GREEN,TRIM10
main67660-10400-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10400-B3i199804-199808
GERMANY, U.K, FRANCE, HOLLAND SPEC & W(POWER WINDOW),GRAY/GREEN
main67660-10410-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10410-B2i199804-199808
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,GRAY/BLUE,TRIM10
main67660-10410-B3i199804-199808
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,GRAY/GREEN,TRIM10
main67660-10420-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10430-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10450-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10460-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10470-B0i199712-199907
FABRIC TYPE B-*104,LT.BLUISH GRAY,TRIM1#
main67660-10480-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10490-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10530-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10530-B2i199804-199808
COOL WATER PACKAGE,GRAY/BLUE,TRIM10
main67660-10530-B3i199804-199808
COOL WATER PACKAGE,GRAY/GREEN,TRIM10
main67660-10540-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10550-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10550-B2i199804-199808
COOL WATER PACKAGE,GRAY/BLUE,TRIM10
main67660-10550-B3i199804-199808
COOL WATER PACKAGE,GRAY/GREEN,TRIM10
main67660-10560-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10570-B0i199712-199907
FABRIC TYPE A & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10590-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10600-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10610-B0i199712-199907
FABRIC TYPE B-*104,LT.BLUISH GRAY,TRIM1#
main67660-10620-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10630-B0i199712-199907
FABRIC TYPE B & W(LARGE DOOR POCKET & POWER DOOR LOCK & POWER WINDOW)-*104,LT.BLUISH GRAY,TRIM1#
main67660-10700-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET)-*104,BLUISH GRAY,TRIM1#
main67660-10710-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER WINDOW)-*104,BLUISH GRAY,TRIM1#
main67660-10730-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET)-*104,BLUISH GRAY,TRIM1#
main67660-10740-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,BLUISH GRAY,TRIM1#
main67660-10750-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK & *PW)-*104,BLUISH GRAY,TRIM1#
main67660-10760-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET)-*104,BLUISH GRAY,TRIM1#
main67660-10770-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK & *PW)-*104,BLUISH GRAY,TRIM1#
main67660-10790-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET)-*104,BLUISH GRAY,TRIM1#
main67660-10800-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK)-*104,BLUISH GRAY,TRIM1#
main67660-10810-B0i199712-199907
FABRIC TYPE C & W(LARGE DOOR POCKET & POWER DOOR LOCK & *PW)-*104,BLUISH GRAY,TRIM1#
67710PANEL ASSY, FRONT DOOR TRIM, UPPER RH
main67710-10030-B0i199601-199907
BLUISH GRAY,TRIM1#
main67710-10040-B0i199601-199907
BLUISH GRAY,TRIM1#
67717PAD, FRONT DOOR TRIM, CENTER RH
main67717-10030i199601
main67717-10040i199601
67718PAD, FRONT DOOR TRIM, CENTER LH
main67718-10010i199601
main67718-10020i199601
67720PANEL ASSY, FRONT DOOR TRIM, UPPER LH
main67720-10030-B0i199601-199907
BLUISH GRAY,TRIM1#
main67720-10040-B0i199601-199907
BLUISH GRAY,TRIM1#
67773CCLIP, DOOR TRIM UPPER RETAINER, NO.1
main67773-20030i199601-199907
67777POCKET, FRONT DOOR TRIM, RH
main67777-10060-B0i199712-199907
BLUISH GRAY,TRIM1#
main67777-10060-B1i199601-199712
LT.BLUISH GRAY,TRIM10
main67777-10060-B1i199712-199907
LT.BLUISH GRAY,TRIM1#
67778POCKET, FRONT DOOR TRIM, LH
main67778-10060-B0i199712-199907
BLUISH GRAY,TRIM1#
main67778-10060-B1i199601-199712
LT.BLUISH GRAY,TRIM10
main67778-10060-B1i199712-199907
LT.BLUISH GRAY,TRIM1#
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-10130i199601
main68171-10140i199601
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-10110i199601
main68172-10120i199601
74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH
main74233-10010-B0i199712-199907
BLUISH GRAY,TRIM1#
main74233-10010-B1i199601-199907
LT.BLUISH GRAY,TRIM1#
main74233-10020-B0i199712-199907
W(POWER WINDOW = DOWN AUTO),BLUISH GRAY,TRIM1#
main74233-10020-B1i199601-199907
W(POWER WINDOW = DOWN AUTO),LT.BLUISH GRAY,TRIM1#
main74233-10030-B0i199601-199907
LT.BLUISH GRAY,TRIM1#
main74233-10030-B1i199712-199907
BLUISH GRAY,TRIM1#
main74233-10040-B0i199601-199907
W(POWER WINDOW = DOWN AUTO),LT.BLUISH GRAY,TRIM1#
main74233-10040-B1i199712-199907
W(POWER WINDOW = DOWN AUTO),BLUISH GRAY,TRIM1#
74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH
main74234-10010-B0i199712-199907
BLUISH GRAY,TRIM1#
main74234-10010-B1i199601-199907
LT.BLUISH GRAY,TRIM1#
main74234-10020-B0i199712-199907
W(POWER WINDOW = DOWN AUTO),BLUISH GRAY,TRIM1#
main74234-10020-B1i199601-199907
W(POWER WINDOW = DOWN AUTO),LT.BLUISH GRAY,TRIM1#
main74234-10030-B0i199601-199907
LT.BLUISH GRAY,TRIM1#
main74234-10030-B1i199712-199907
BLUISH GRAY,TRIM1#
main74234-10040-B0i199601-199907
W(POWER WINDOW = DOWN AUTO),LT.BLUISH GRAY,TRIM1#
main74234-10040-B1i199712-199907
W(POWER WINDOW = DOWN AUTO),BLUISH GRAY,TRIM1#
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9016840100
main90168-40100

20 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
