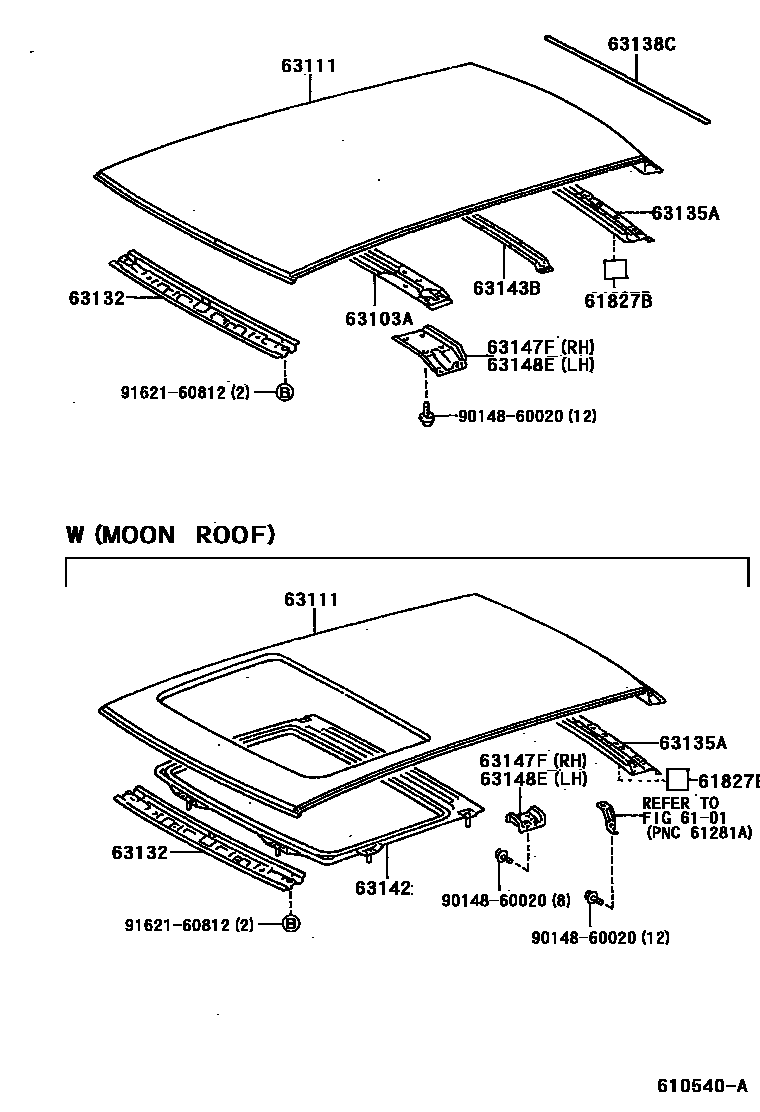

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF)

6101SIDE MEMBER

→ Go to FIG 61-01

61827BPLATE, NOISE CONTROL, NO.4

main61815-32020×2iEP91199901

main61827-10010×2iEP91199601-199901

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-10030iEP91..3D199601

main63103-10040iEP91..5D199601

63111PANEL, ROOF

main63111-10190iEP91199601

main63111-10210iEP91199601

W(MOON ROOF)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-10100iEP91199601

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-10040iEP91199601

63138CSEAL, BACK DOOR OPENING, UPPER

main63138-10010iEP91199602

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-10030iEP91199601

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-10040iEP91199601

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-10010iEP91199601

main63147-10030iEP91199601

W(MOON ROOF)

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-10030iEP91199601

W(MOON ROOF)

main63148-10020iEP91199601

9014860020

main90148-60020

9162160812

main91621-60812
