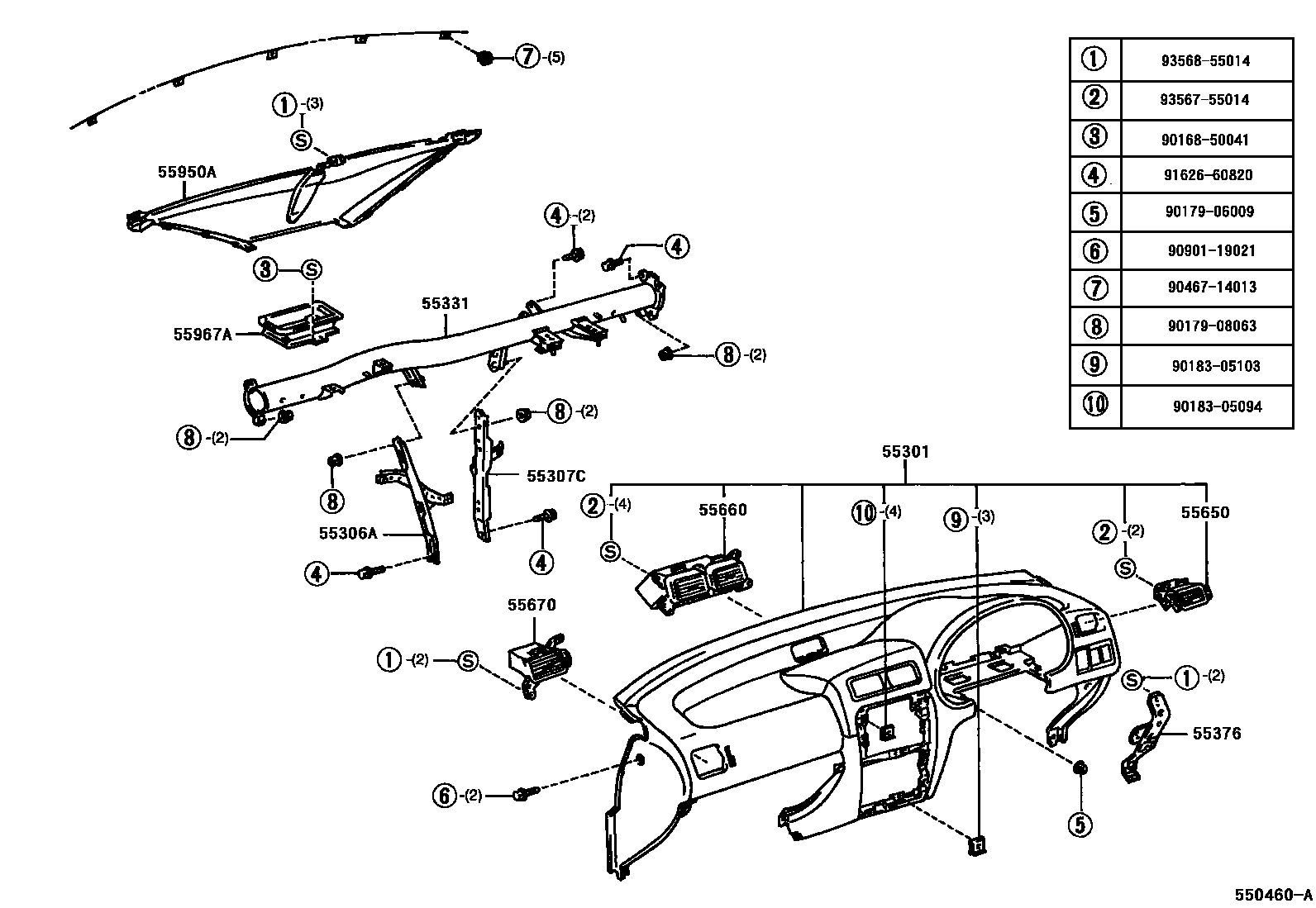

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
W/O(*80,FRONT PASSENGER SIDE),BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55331REINFORCEMENT, INSTRUMENT PANEL
W/O(*80,FRONT PASSENGER SIDE)
W/O(*80,FRONT PASSENGER SIDE)
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55967ANOZZLE, DEFROSTER, LOWER
9016850041
main90168-50041
9017906009
main90179-06009
9017908063
main90179-08063
9018305094
main90183-05094
9018305103
main90183-05103
9046714013
main90467-14013
9090119021
main90901-19021
9162660820
main91626-60820
9356755014
main93567-55014
9356855014
main93568-55014
20 parts on this diagram · 4 diagrams in section
