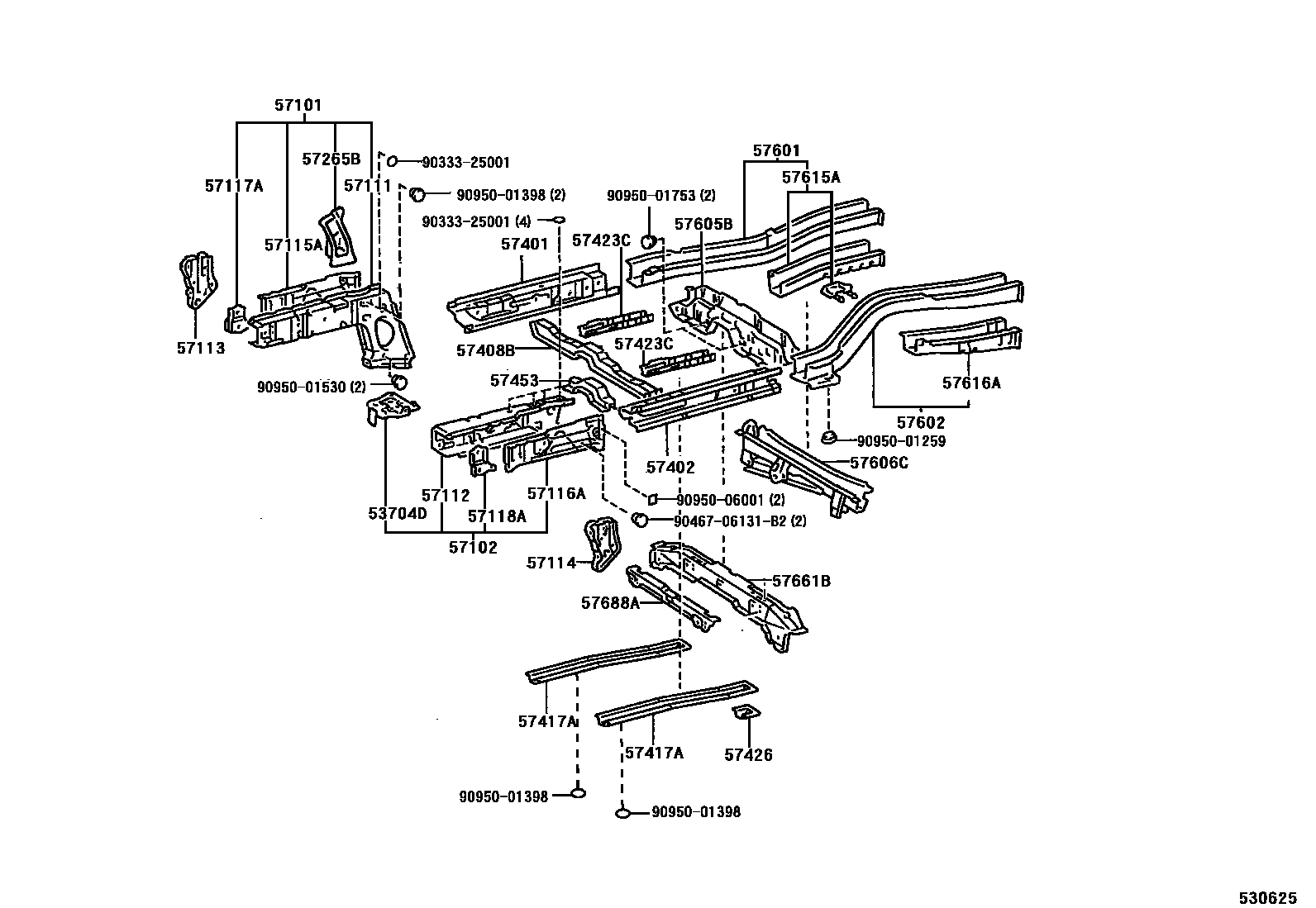

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-16020iEP91199601

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-10310iEP91199601-199712

main57101-10320iEP91199712

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-10430iEP91199601-199712

main57102-10431iEP91..RHD199712

main57102-10451iEP91..LHD199712

57111MEMBER, FRONT SIDE, RH

main57111-16130iEP91199601-199706

main57111-16131iEP91199706

57112MEMBER, FRONT SIDE, LH

main57112-16150iEP91199601-199706

main57112-16151iEP91199706

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-10040iEP91199601

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-10040iEP91199601

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-10060iEP91199601

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-10060iEP91199601

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-10050iEP91199601-199712

main57117-16060iEP91199712

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-10050iEP91199601-199712

main57118-16060iEP91199712

57265BBRACKET, ENGINE MOUNTING, RH

main57265-10020iEP91199703-199712

main57265-16030iEP91199712

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-10160iEP91..RHD..5D199601

main57401-10180iEP91..LHD..5D199601

main57401-10190iEP91..RHD..3D199601

main57401-10200iEP91..LHD..3D199601

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-10160iEP91..RHD..5D199601

main57402-10180iEP91..LHD..5D199601

main57402-10190iEP91..RHD..3D199601

main57402-10200iEP91..LHD..3D199601

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-10100iEP91199601

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-10080×2iEP91199601

57423CREINFORCEMENT, FRONT FLOOR UNDER, INNER

main57423-46010×2iEP91199712

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-10020iEP91199601

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-10021iEP91199601

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-10120iEP91199601

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-10070iEP91199601

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-16050iEP91199601

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-10080iEP91199601

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-10903iEP91199601

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-16914iEP91199601

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-16010iEP91..3D199601

main57661-16020iEP91..5D199601

57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57688-10040iEP91199601

9033325001

main90333-25001

9046706131B2

main90467-06131B2

9095001259

main90950-01259

9095001398

main90950-01398

9095001530

main90950-01530

9095001753

main90950-01753

9095006001

main90950-06001

34 parts on this diagram · 1 diagram in section
