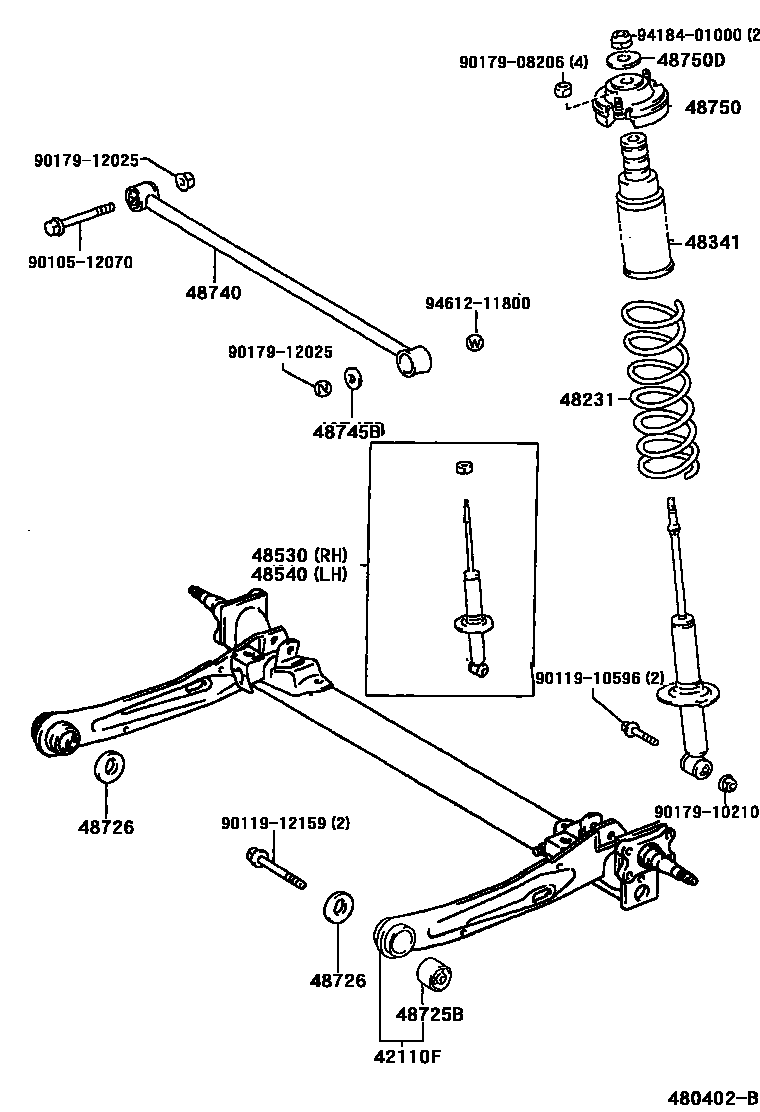

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-10130iEP91199601-199907

main42110-10150iEP91199601-199907

W(ABS)

48231SPRING, COIL, REAR

main48231-10350×2iEP91199601-199712

main48231-16710×2iEP91199712

48341BUMPER, REAR SPRING

main48341-10150×2iEP91199803

main48341-16100×2iEP91199601-199803

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-19755iEP91199601

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-19755iEP91199601

48725BBUSH, REAR SUSPENSION ARM, NO.1

main48725-10040iEP91199601-199907

48726SEAT, REAR SUSPENSION ARM

main48726-16010×2iEP91199712

main48726-46010×2iEP91199601-199712

48740ROD ASSY, REAR LATERAL CONTROL

main48740-16080iEP91199601

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12037iEP91199601

48750SUPPORT ASSY, REAR SUSPENSION

main48750-10090×2iEP91199601

48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main48597-10010×2iEP91199606

main90948-02082×2iEP91199601-199606

9010512070

main90105-12070

9011910596

main90119-10596

9011912159

main90119-12159

9017908206

main90179-08206

9017910210

main90179-10210

9017912025

main90179-12025

9418401000

main94184-01000

9461211800

main94612-11800

19 parts on this diagram · 1 diagram in section
