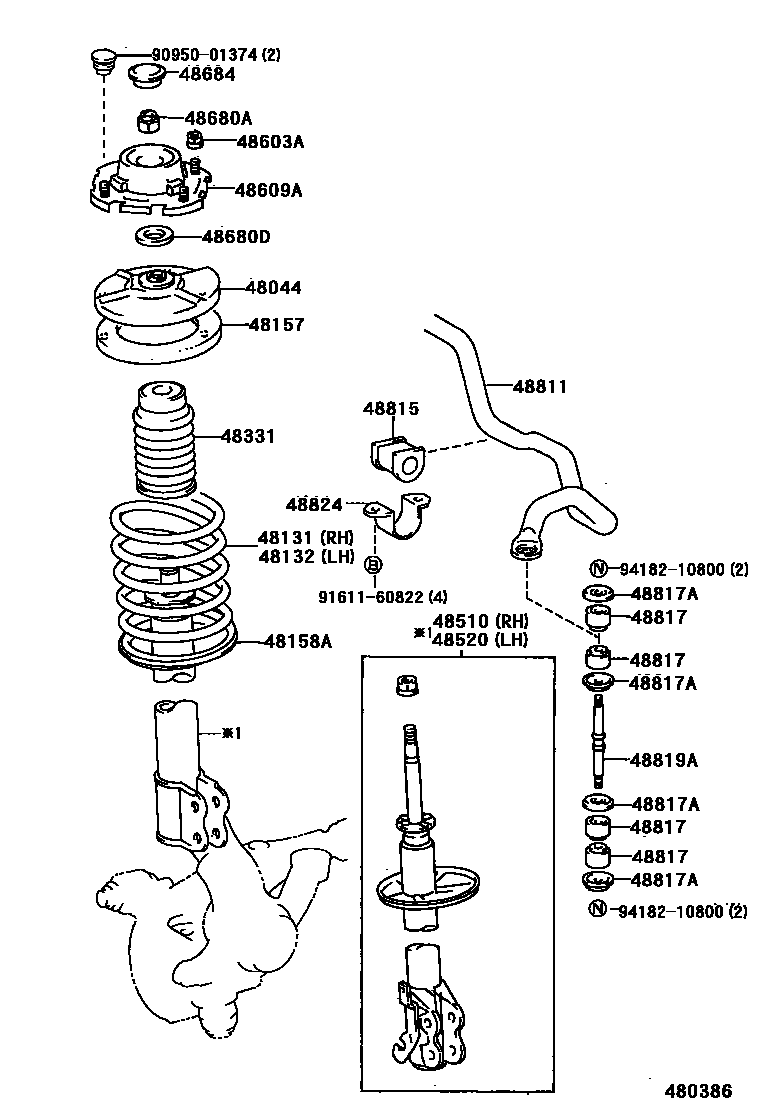

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-16030×2iEP91199601-199712

main48044-46010×2iEP91199712

48131SPRING, FRONT COIL, RH

main48131-1C050iEP91..3FC199712

main48131-1C070iEP91..5F199712

main48131-1G251iEP91199601-199712

48132SPRING, FRONT COIL, LH

main48131-1C050iEP91..3FC199712

main48131-1C070iEP91..5F199712

main48131-1G251iEP91199601-199712

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-16040×2iEP91199601-199712

main48157-46010×2iEP91199712

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-16030×2iEP91199601

48331BUMPER, FRONT SPRING, NO.1

main48331-16070×2iEP91199601

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-19545iEP91199601-199712

main48510-80002iEP91199712

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-19265iEP91199601-199712

main48520-19585iEP91199712

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-08206×6iEP91199601

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-16220×2iEP91199601

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-12145×2iEP91199601

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049×2iEP91199601

48684COVER, BEARING DUST

main48684-10010×2iEP91199601

48811BAR, STABILIZER, FRONT

main48811-16220×2iEP91199601-199712

main48811-16221iEP91199712

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-10110×2iEP91199609

main48815-14130×2iEP91199601-199609

48817CUSHION, FRONT STABILIZER

main48817-10020×8iEP91199601

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032×8iEP91199601

48819ABOLT, FRONT STABILIZER

main48819-10010×2iEP91199601

48824BRACKET, STABILIZER, FRONT

main48824-20040×2iEP91199601

9095001374

main90950-01374

9161160822

main91611-60822

9418210800

main94182-10800

22 parts on this diagram · 1 diagram in section
