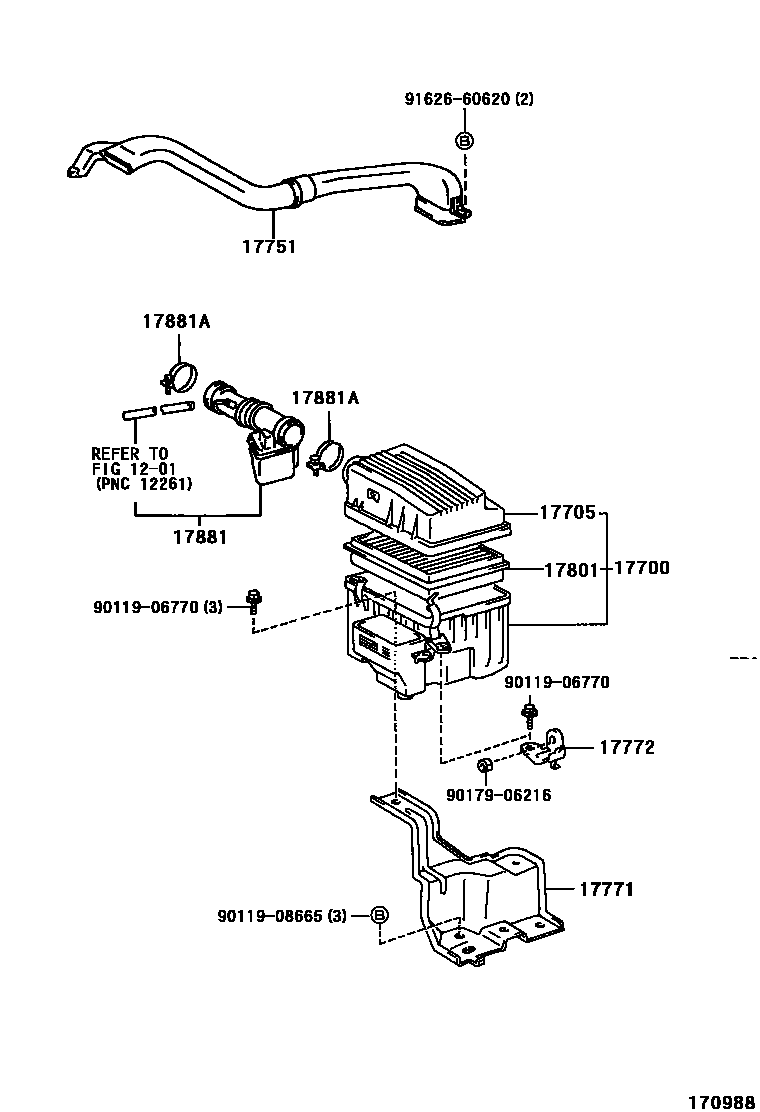

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-11840i4EFE..EP91..LHD199601

main17700-11860i4EFE..EP91..RHD199601

17705CAP SUB-ASSY, AIR CLEANER

main17705-11570i4EFE..EP91..RHD199601

main17705-11580i4EFE..EP91..LHD199601

17751INLET, AIR CLEANER, NO.1

main17750-11050i4EFE..EP91..RHD199601

main17751-11130i4EFE..EP91..LHD199601

17771BRACKET, AIR CLEANER INLET DUCT

main17771-11130i4EFE..EP91..RHD199601

main17771-11140i4EFE..EP91..LHD199601

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-11030i4EFE..EP91..RHD199601

main17772-11040i4EFE..EP91..LHD199601

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-11050i4EFE..EP91..RHD199601

main17801-11080i4EFE..EP91..LHD199601

17881HOSE, AIR CLEANER, NO.1

main17880-11300i4EFE..EP91..RHD199601

main17880-11310i4EFE..EP91..LHD199601

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690×2i4EFE..EP91199601

9011906770

main90119-06770

9011908665

main90119-08665

9017906216

main90179-06216

9162660620

main91626-60620

13 parts on this diagram · 2 diagrams in section
