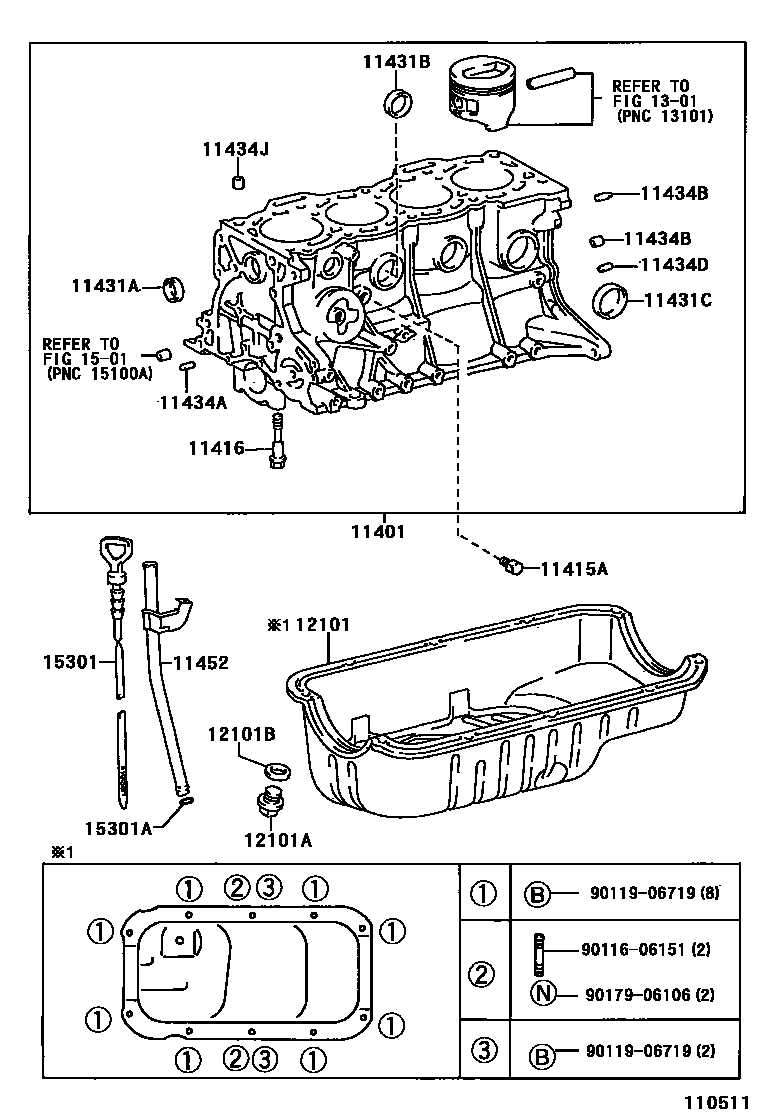

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-19569i4EFE..EP91199601-199605

main11401-80003i4EFE..EP91199605

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i4EFE..EP91199601

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019i4EFE..EP91199601

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i4EFE..EP91199601

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i4EFE..EP91199601

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500i4EFE..EP91199601

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06068i4EFE..EP91199601

L=11,OD=6

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i4EFE..EP91199601

L=20,OD=10

main90253-15003i4EFE..EP91199601

L=17,OD=15

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i4EFE..EP91199601

L=11,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001i4EFE..EP91199601

11452GUIDE, OIL LEVEL GAGE

main11452-11041i4EFE..EP91199601

12101PAN SUB-ASSY, OIL

main12101-11060i4EFE..EP91199601

12101APLUG(FOR OIL PAN DRAIN)

main90341-12026i4EFE..EP91199601

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i4EFE..EP91199601

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11050i4EFE..EP91199601

15301ARING, O(FOR OIL LEVEL GAGE)

main96721-19010i4EFE..EP91199601

9011606151

main90116-06151

9011906719

main90119-06719

9017906106

main90179-06106

21 parts on this diagram · 1 diagram in section
