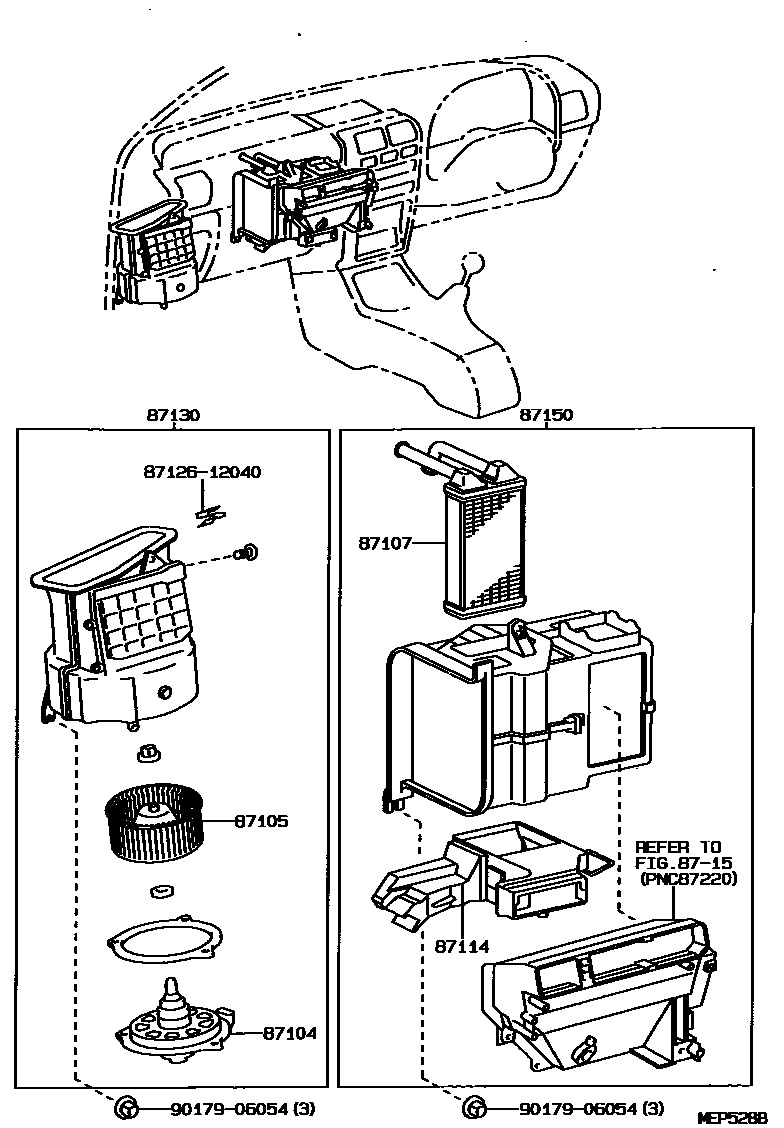

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1HEATER 0002 1BOOST VENTILATOR

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-10220iEP8#..RHD198912-199601

main87104-10230iEP8#,NP80..LHD198912-199601

main87104-10240iEP8#..LHD..MTM..CBR; EP81,NP80..DSL,EFI; EP81..3FC..CBR198912-199201

COLD SPEC; COLD SPEC OR W(AIR CONDITIONER); W(AIR CONDITIONER)

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iEP8#..LHD..MTM..CBR; EP81,NP80..DSL,EFI; EP81..3FC..CBR198912-199201

COLD SPEC; COLD SPEC OR W(AIR CONDITIONER); W(AIR CONDITIONER)

main87105-90B00iEP8#..RHD198912-199601

main87134-30010iEP8#,NP80..LHD198912-199601

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-10280iEP8#..RHD198912-199601

main87107-10300iEP8#..LHD198912-199601

main87107-10320iNP80198912-199601

87114COVER, HEATER

main87114-10060iEP8#..RHD198912-199411

main87114-10080iEP8#,NP80..LHD198912-199601

main87114-10090iEP81..3FC..EFI;EP8#,NP80..LHD..MTM198912-199601

COLD SPEC

main87114-42010iEP81..RHD199411-199601

87130BLOWER ASSY, HEATER, FRONT

main87130-10250iEP8#..RHD198912-199601

main87130-10260iEP8#,NP80..LHD198912-199601

main87130-10270iEP8#..LHD..MTM..CBR; EP81,NP80..DSL,EFI; EP81..3FC..CBR198912-199201

COLD SPEC; COLD SPEC OR W(AIR CONDITIONER); W(AIR CONDITIONER)

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-10380iEP8#..RHD198912-199601

main87150-10390iEP8#..LHD198912-199601

main87150-10400iEP8#..LHD..MTM;EP81..3FC..EFI198912-199601

COLD SPEC

main87150-10410iNP80198912-199601

main87150-10420iNP80198912-199601

COLD SPEC

8712612040CLAMP, HEATER CONTROL

main87126-12040

9017906054

main90179-06054

9 parts on this diagram · 2 diagrams in section
