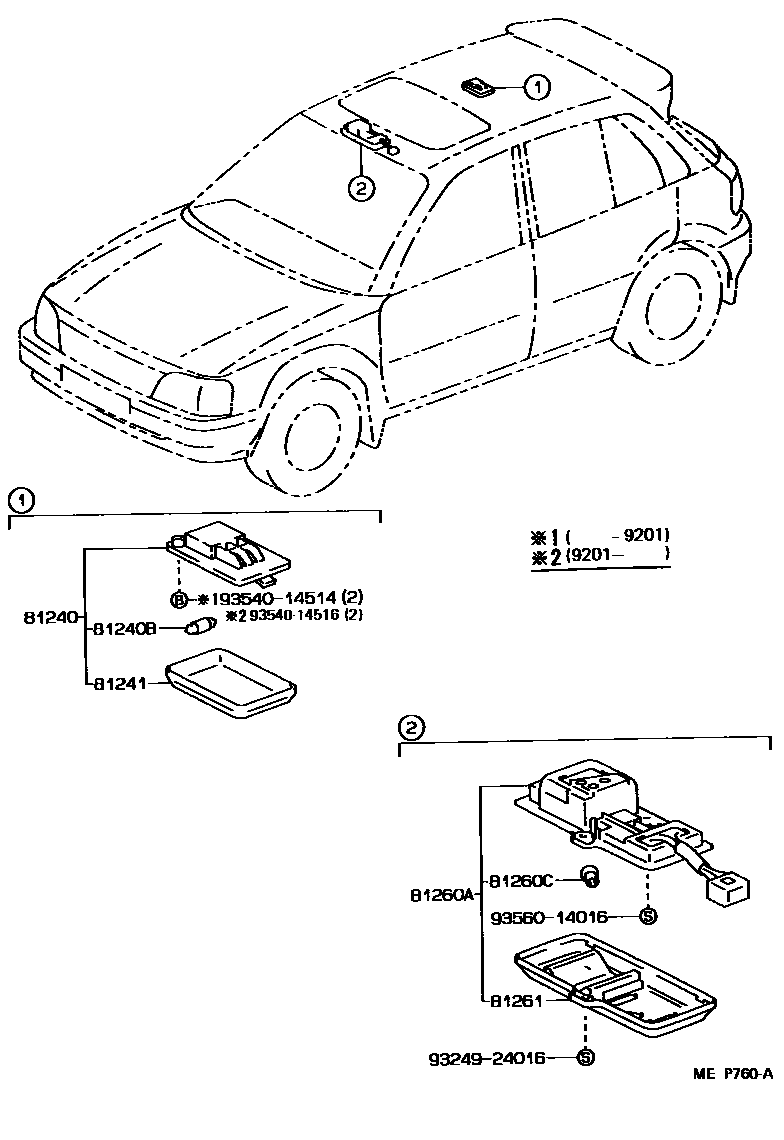

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-10040-03iEP8#,NP80198912-199201

GRAY,TRIM1#,8#

main81240-10040-03iEP8#,NP80199201-199208

GRAY,TRIM1#

main81240-10040-A0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

IVORY,TRIM4#

main81240-10040-S3iEP81,NP80..STD199208-199410

LI.GRAY,TRIM1#

main81240-10041-S3iEP81,NP80199410-199601

GRAY,TRIM1#

main81240-22081-13iEP8#..GL,S,SI,XL,XLI198912-199201

W(MOON ROOF),SHADOW GRAY,TRIM1#,8#

main81240-22081-13iEP8#..GL,GLI,S,SI,XL,XLI199201-199601

W(MOON ROOF),SHADOW GRAY,TRIM1#

main81240-22081-13iEP81..GLI,SI,XLI199212-199301

SHADOW GRAY,TRIM1#

main81240-22081-A0iEP8#..GL,GLI,XL,XLI199201-199212

W(MOON ROOF),IVORY,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iEP81,NP80199410-199601

12V 8W

main99132-12100iEP8#,NP80198912-199410

12V 10W

main99132-12100iEP81199410-199601

12V 10W,W(MOON ROOF)

81241LENS, ROOM LAMP, NO.1

main81241-10030iEP8#,NP80198912-199601

main81241-20060iEP8#..GL,GLI,S,SI,XL,XLI198912-199601

W(MOOM ROOF)

81260ALAMP ASSY, MAP

main81260-10030-03iEP8#..3D..(GL,GLI,S,SI,XL,XLI)199201-199208

W(CANVAS TOP),GRAY,TRIM1#

main81260-10030-03iEP8#..3D..(GL,S,SI,XL,XLI)198912-199201

W(CANVAS TOP),GRAY,TRIM1#,8#

main81260-10030-A0iEP8#..3D..(GL,GLI,XL,XLI)199201-199212

W(CANVAS TOP),IVORY,TRIM4#

main81260-10030-S3iEP8#..3D..(GL,GLI,S,SI,XL,XLI)199208-199405

W(CANVAS TOP),LI.GRAY,TRIM1#

main81260-10040-03iEP8#..5D..(GL,XL,XLI)198912-199201

GRAY,TRIM1#,8#

main81260-10040-03iEP8#..5D..(GL,XL,XLI)198912-199201

W(MOON ROOF),GRAY,TRIM1#,8#

main81260-10050-A0iEP8#..5D..(XL,XLI)199201-199212

W(MOON ROOF),IVORY,TRIM4#

main81260-10050-A0iEP8#..3D..(GL,GLI,XL,XLI)199201-199212

IVORY,TRIM4#

main81260-10050-B0iEP8#..5D..(XL,XLI)199201-199405

W(MOON ROOF),GRAY,TRIM1#

main81260-10050-B0iEP8#..5D..(XL,XLI)199201-199601

GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12014iEP8#..GL,GLI,S,SI,XL,XLI198912-199601

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-10030-03iEP8#..3D..(GL,S,SI,XL,XLI)198912-199201

CANVASTOP,GRAY,TRIM1#,8#

main81261-10030-03iEP8#..3D..(GL,GLI,S,SI,XL,XLI)199201-199405

CANVASTOP,GRAY,TRIM1#

main81261-10030-A0iEP8#..3D..(GL,GLI,XL,XLI)199201-199212

CANVASTOP,IVORY,TRIM4#

main81261-10050-A0iEP8#..3D..(GL,GLI,XL,XLI)199201-199212

IVORY,TRIM4#

main81261-10050-A0iEP8#..5D..(XL,XLI)199201-199212

W(MOON ROOF),IVORY,TRIM4#

main81261-10050-B0iEP8#..3D..(GL,GLI,S,SI,XL,XLI)199201-199601

GRAY,TRIM1#

main81261-10050-B0iEP8#..5D..(XL,XLI)199201-199405

W(MOON ROOF),GRAY,TRIM1#

main81261-20061-B0iEP8#..5D..(GL,XL,XLI)198912-199201

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

main81261-20061-B0iEP8#..3D..(GL,S,SI,XL,XLI)198912-199201

LIGHT GRAY,TRIM1#,8#

9324924016

main93249-24016

9354014514

main93540-14514

9354014516

main93540-14516

9356014016

main93560-14016

10 parts on this diagram · 1 diagram in section
