REAR COMBINATION LAMP

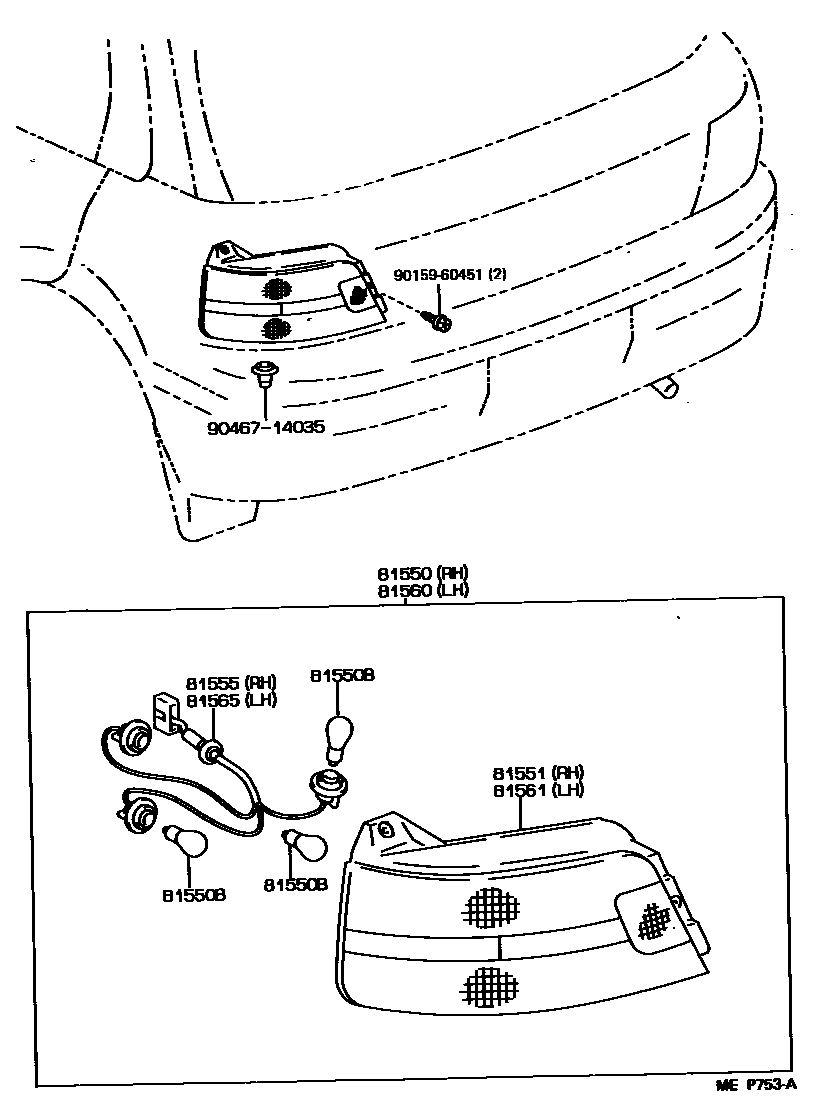

Parts diagram

81550LAMP ASSY, REAR COMBINATION, RH

main81550-10280i198912-199106

main81550-10281i199106-199601

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210i198912-199601

12V 21W

main99132-21210i198912-199601

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-10280i198912-199106

main81551-10281i199106-199601

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-10280i198912-199601

81560LAMP ASSY, REAR COMBINATION, LH

main81560-10280i198912-199106

main81560-10281i199106-199601

81561LENS, REAR COMBINATION LAMP, LH

main81561-10280i198912-199106

main81561-10281i199106-199601

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-10280i198912-199601

9015960451

main90159-60451

9046714035

main90467-14035

9 parts on this diagram · 1 diagram in section
