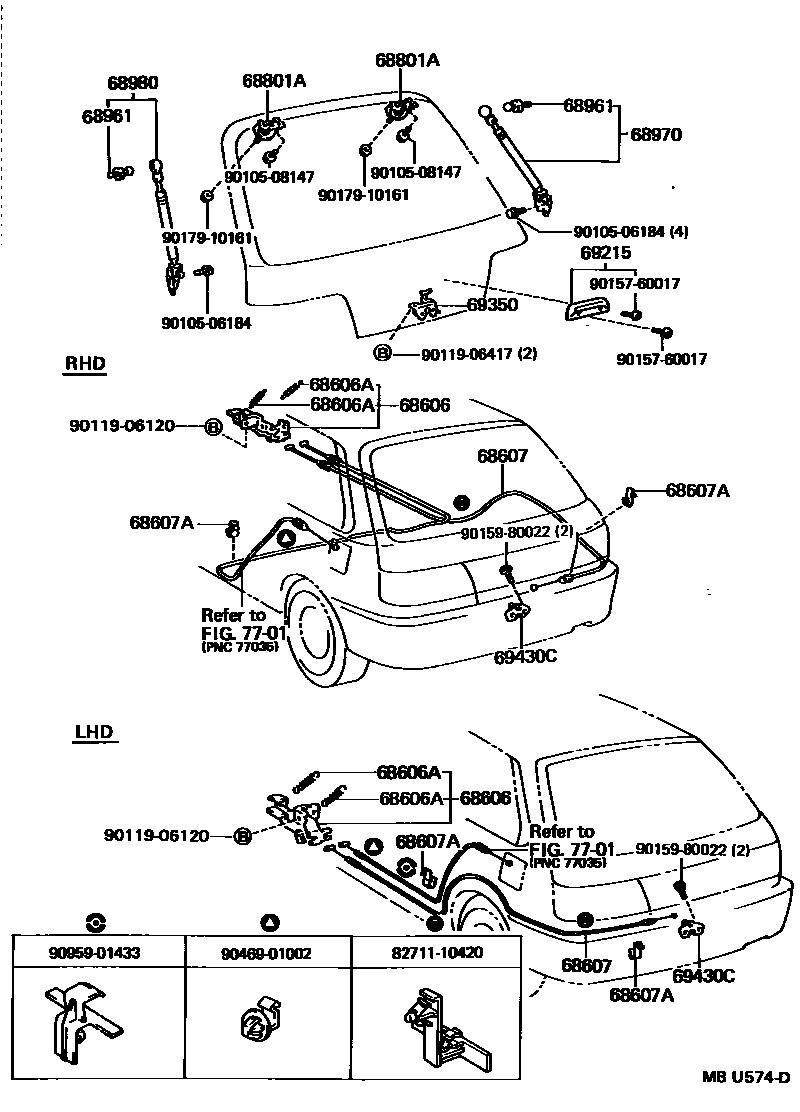

BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12050iEP8#,NP80..LHD198912-199601

main64606-12060iEP8#..RHD198912-199601

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034×2iEP8#,NP80198912-199601

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-10100iEP8#..RHD198912-199601

main64607-10130iEP8#,NP80..LHD198912-199201

CYUHATSU

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010×2iEP8#,NP80..LHD; EP8#..RHD198912-199601

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-10030×2iEP8#,NP80198912-199601

68961BOLT, BACK DOOR STAY

main68961-10030×2iEP8#,NP80198912-199601

68970STAY ASSY, BACK DOOR, RH

main68950-19695iEP8#,NP80198912-199405

main68950-19705iEP8#,NP80198912-199405

W(REAR WINDOW WIPER)

68980STAY ASSY, BACK DOOR

main68960-19385iEP8#,NP80198912-199405

main68960-19395iEP8#,NP80198912-199405

W(REAR WINDOW WIPER)

69215HANDLE, BACK DOOR OUTSIDE

main69209-10010iEP8#,NP80199201-199601

69350LOCK ASSY, BACK DOOR

main69350-10110iEP8#,NP80198912-199601

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-10060iEP8#,NP80..STD,XL,XLI198912-199405

main69430-10070iEP8#,NP80..STD,XL,XLI; EP8#..GL,GLI,S,SI198912-199405

W(BACK DOOR OPENER)

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8271110420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10420

9010506184

main90105-06184

9010508147

main90105-08147

9011906120

main90119-06120

9011906417

main90119-06417

9015760017

main90157-60017

9015980022

main90159-80022

9017910161

main90179-10161

9046901002

main90469-01002

9095901433

main90959-01433

22 parts on this diagram · 1 diagram in section
