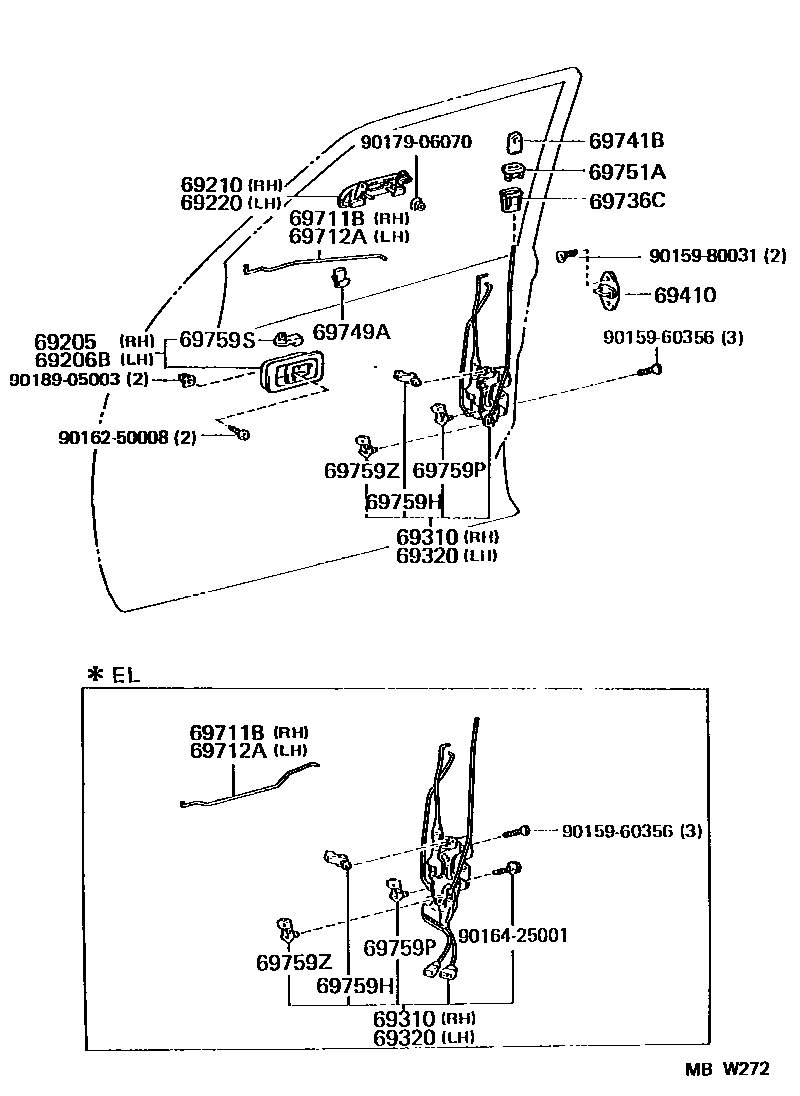

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10070-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main69205-10070-04iEP8#,NP80198912-199201

DARK BLUE,TRIM8#

main69205-10070-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10070-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main69206-10070-04iEP8#,NP80198912-199201

DARK BLUE,TRIM8#

main69206-10070-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-10050iEP8#,NP80198912-199601

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-10050iEP8#,NP80198912-199601

69310LOCK ASSY, FRONT DOOR, RH

main69030-10050iEP8#..5D..(GL,XL,XLI)198912-199201

W(POWER DOOR LOCK)

main69030-10060iEP8#,NP80..3D..(GL,S,SI,XL,XLI)198912-199201

W(POWER DOOR LOCK)

main69030-10080iEP8#..5D..(XL,XLI)199201-199601

W(POWER DOOR LOCK)

main69030-10100iEP8#,NP80..3D..(GL,GLI,S,SI,XL,XLI)199201-199601

W(POWER DOOR LOCK)

main69310-10150iEP8#..5D198912-199201

main69310-10160iEP8#,NP80..3D198912-199201

main69310-10180iEP8#..5D199201-199601

main69310-10200iEP8#,NP80..3D199201-199601

69320LOCK ASSY, FRONT DOOR, LH

main69040-10050iEP8#..5D..(GL,XL,XLI)198912-199201

W(POWER DOOR LOCK)

main69040-10060iEP8#,NP80..3D..(GL,S,SI,XL,XLI)198912-199201

W(POWER DOOR LOCK)

main69040-10080iEP8#..5D..(XL,XLI)199201-199601

W(POWER DOOR LOCK)

main69040-10100iEP8#,NP80..3D..(GL,GLI,S,SI,XL,XLI)199201-199601

W(POWER DOOR LOCK)

main69320-10150iEP8#..5D198912-199201

main69320-10160iEP8#,NP80..3D198912-199201

main69320-10180iEP8#..5D199201-199601

main69320-10200iEP8#,NP80..3D199201-199601

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iEP8#,NP80199010-199601

main69410-87001iEP8#,NP80198912-199010

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-10050iEP8#..5D198912-199601

main69711-10060iEP8#,NP80..3D198912-199601

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-10060iEP8#..5D198912-199601

main69712-10070iEP8#,NP80..3D198912-199601

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-10040iEP80..GL;EP8#,NP80..LHD..(GL,S,SI,XL,XLI)198912-199601

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-10030-03iEP8#,NP80199010-199601

GRAY,TRIM1#

main69741-10030-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

main69741-10040-04iEP8#,NP80199010-199201

BLUE,TRIM8#,PAINTED WHITE

main69741-90K00-43iEP8#,NP80198912-199010

GRAY,TRIM1#

main69741-90K00-54iEP8#,NP80198912-199010

DARK BLUE,TRIM8#

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iEP8#,NP80..3D198912-199601

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-10020iEP8#,NP80..STD,XL,XLI199010-199201

PAINTED WHITE

main69751-12020iEP81,NP80..XL,XLI199505-199601

main69751-12020-03iEP81..5D..STD;EP8#,NP80..3D..(STD,XL,XLI)198912-199505

SHADOW GRAY,TRIM1#

main69751-12020-14iEP80..5D;EP81..5D..(XL,XLI)198912-199201

DARK BLUE,TRIM8#

main69751-12020-E0iEP8#,NP80..STD,XL,XLI199201-199212

OAK,TRIM4#

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iEP8#,NP80198912-199601

LH

main69759-20050iEP8#,NP80198912-199601

RH

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20100iEP8#,NP80198912-199601

RH

main69759-20110iEP8#,NP80198912-199601

LH

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iEP8#,NP80198912-199601

GRAY

main69759-20070iEP8#,NP80198912-199601

GREEN

69759ZSNAP, DOOR LOCK CONTROL LINK

main69759-24010iEP8#,NP80198912-199601

RH

main69759-24020iEP8#,NP80198912-199601

LH

9015960356

main90159-60356

9015980031

main90159-80031

9016250008

main90162-50008

9016425001

main90164-25001

9017906070

main90179-06070

9018905003

main90189-05003

23 parts on this diagram · 1 diagram in section
