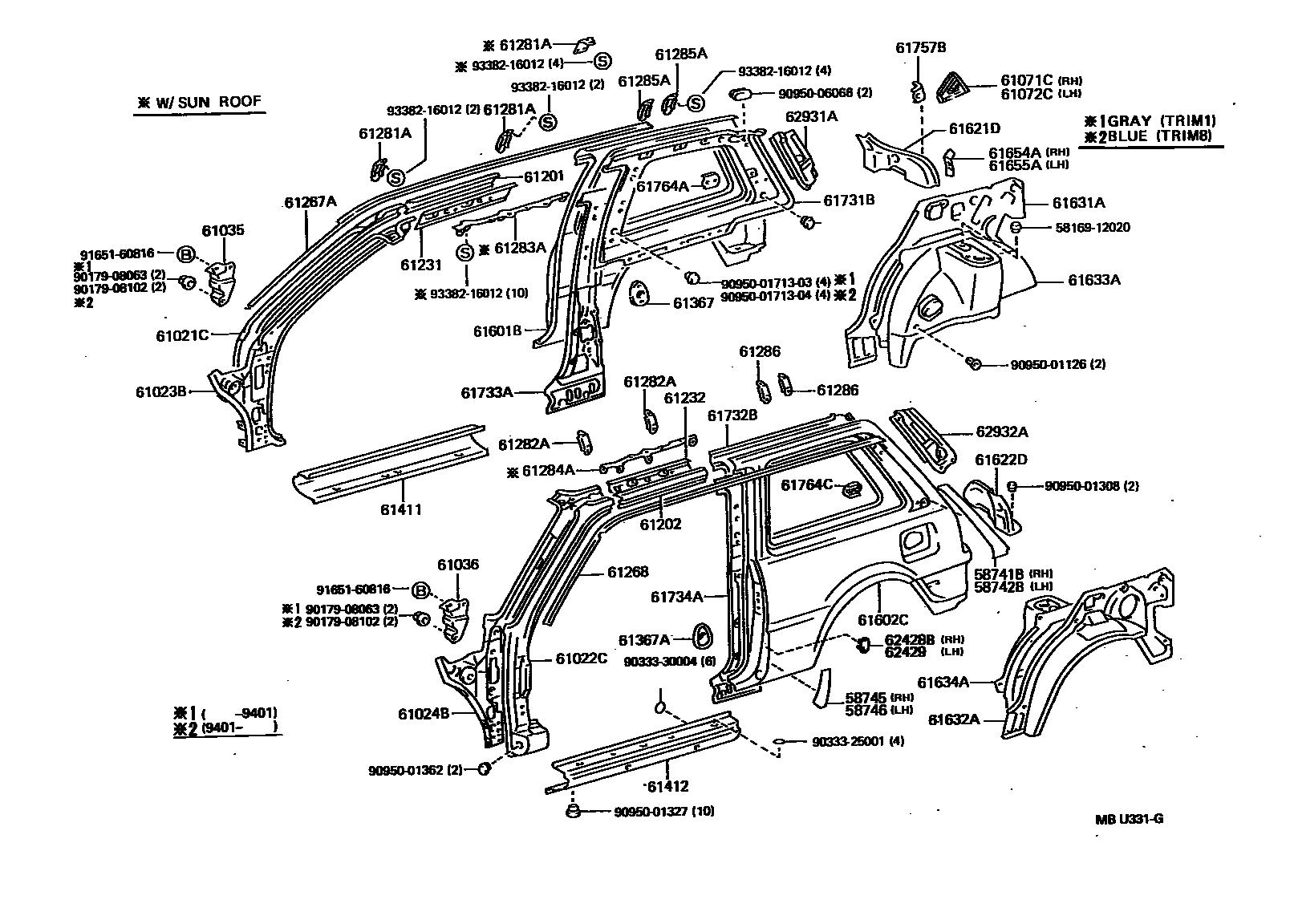

SIDE MEMBER
58741BPROTECTOR, QUARTER PANEL, RH
SEVERE USAGE PACKAGE
58742BPROTECTOR, QUARTER PANEL, LH
SEVERE USAGE PACKAGE
58745PROTECTOR, QUARTER PANEL, FRONT RH
58746PROTECTOR, QUARTER PANEL, FRONT LH
61021CPILLAR SUB-ASSY, FRONT BODY, RH
W(CANVASTOP)
W(CANVASTOP)
W(CANVASTOP)
W(CANVASTOP)
61022CPILLAR SUB-ASSY, FRONT BODY, LH
W(CANVASTOP)
W(CANVASTOP)
W(CANVASTOP)
W(CANVASTOP)
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
W(*66 & REAR WINDOW WIPER)
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
W(*66)
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61071CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH
61072CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61202RAIL SUB-ASSY, ROOF SIDE, LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
main61281-10020×2iEP8#..RHD..3D; EP80..5D..XL;EP81..LHD..XLI;EP81..GL,S,SI,XL;EP80..LHD..3D..XL;EP81..RHD..5D..EFI198912-199405
W(MOON ROOF)
W(CANVASTOP)
61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2
61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH
BELGIUM SPEC,W(MOON ROOF)
W(CANVASTOP)
61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH
W(MOON ROOF)
W(CANVASTOP)
61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4
61286BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.5
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61601BPANEL SUB-ASSY, QUARTER, RH
W(REAR WINDOW DEFOGGER)
W(REAR WINDOW DEFOGGER)
W(SIDE PROTECTION MOULDING)
W(SIDE PROTECTION MOULDING)
W(SIDE PROTECTION MOULDING)
W(CANVASTOP)
W(CANVASTOP)
W(CANVASTOP)
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(REAR WINDOW DEFOGGER & SIDE PROTECTION MOULDING)
main61601-1C301iEP8#,NP80..3D..XL; EP8#..3D..(GL,S,SI); EP80,NP80..3D..STD; EP81..3D..XLI199102-199111
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(REAR WINDOW DEFOGGER & SIDE PROTECTION MOULDING)
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(REAR WINDOW DEFOGGER & SIDE PROTECTION MOULDING)
W(CANVASTOP); W(COLORED BUMPER & CANVASTOP) OR W(CANVASTOP & SIDE PROTECTION MOULDING)
W(CANVASTOP); W(COLORED BUMPER & CANVASTOP) OR W(CANVASTOP & SIDE PROTECTION MOULDING)
W(SIDE PROTECTION MOULDING & SUN ROOF)
W(REAR WINDOW DEFOGGER)
W(REAR WINDOW DEFOGGER)
61602CPANEL SUB-ASSY, QUARTER, LH
W(CANVASTOP)
W(CANVASTOP)
W(CANVASTOP)
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING)
main61602-1C351iEP8#,NP80..3D..XL;EP81..3D..5F..XLI; EP8#..3D..(GL,S,SI); EP80,NP80..3D..STD199102-199111
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING)
W(PAINTED FRONT BUMPER) OR W(SIDE PROTECTION MOULDING); W(SIDE PROTECTION MOULDING)
W(CANVASTOP); W(PAINTED FRONT BUMPER & CANVASTOP) OR W(CANVASTOP & SIDE PROTECTION MOULDING)
W(CANVASTOP); W(PAINTED FRONT BUMPER & CANVASTOP) OR (CANVASTOP & SIDE PROTECTION MOULDING)
W(SIDE PROTECTION MOULDING & SUN ROOF)
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
W(SUN ROOF & FULL DOOR TRIM); W(SUN ROOF)
W(FULL DOOR TRIM)
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
W(FULL DOOR TRIM)
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-10040iEP80..5D;EP80..GL;EP81..5D..EFI;EP81..GLI,S,SI,XL; NP80..XL;EP8#..3D..(STD,XL,XLI)199201-199210
W(FULL DOOR TRIM)
61654ABRACKET, DECK SIDE TRIM, NO.2
61655ABRACKET, DECK SIDE TRIM, NO.3
61731BPANEL, ROOF SIDE, INNER RH
W(PACKAGE TRAY TRIM)
W(PACKAGE TRAY TRIM)
W(MOON ROOF OR CANVASTOP)
W(CANVASTOP & PACKAGE TRAY TRIM);W(MOON ROOF & PACKAGE TRAY TRIM)
W(MOON ROOF) OR W(PACKAGE TRAY TRIM); W(PACKAGE TRAY TRIM)
W(HINGED QUARTER WINDOW)
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRI M)
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRI M)
W(HINGED QUARTER WINDOW)
W(HINGED QUARTER WINDOW & (MOON ROOF OR CANVASTOP) & PACKAGE TRAY TRIM)
W(HINGED QUARTER WINDOW)
W(FULL FABRIC DOOR TRIM)
W(FULL FABRIC DOOR TRIM)
W(HINGED QUARTER WINDOW & (MOON ROOF OR CANVASTOP) & FULL FABRIC DOOR TRIM); W(MOON ROOF OR CANVASTOP)
W((HINGED QUARTER WINDOW OR PACKAGE TRAY TRIM) & FULL FABRIC DOOR TRIM);W(FULL FABRIC DOOR TRIM)
W(PACKAGE TRAY TRIM)
W(PACKAGE TRAY TRIM)
W(FULL FABRIC DOOR TRIM)
W(FULL FABRIC DOOR TRIM)
61732BPANEL, ROOF SIDE, INNER LH
W(PACKAGE TRAY TRIM)
W(PACKAGE TRAY TRIM)
W(CANVASTOP & PACKAGE TRAY TRIM);W(MOON ROOF & PACKAGE TRAY TRIM)
W(PACKAGE TRAY TRIM)
W(HINGED QUARTER WINDOW)
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRI M)
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRI M)
W(HINGED QUARTER WINDOW & (MOON ROOF OR CANVASTOP)
W(HINGED QUARTER WINDOW & (MOON ROOF OR CANVASTOP) & PACKAGE TRAY TRIM
W(HINGED QUARTER WINDOW & PACKAGE TRAY TRI M)
W(FULL FABRIC DOOR TRIM)
W(FULL FABRIC DOOR TRIM)
W(HINGED QUARTER WINDOW & (MOON ROOF OR CANVASTOP) & FULL FABRIC DOOR TRIM); W(MOON ROOF OR CANVASTOP)
W(FULL FABRIC DOOR TRIM)
W(PACKAGE TRAY TRIM)
W(PACKAGE TRAY TRIM)
W(FULL FABRIC DOOR TRIM)
W(FULL FABRIC DOOR TRIM); W(PACKAGE TRAY TRIM & FULL FABRIC DOOR TRIM)
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61757BRETAINER, DECK SIDE TRIM, LOWER
61764APLATE, QUARTER WINDOW LOCK GUSSET
61764CPLATE, QUARTER WINDOW LOCK GUSSET
62428BCOVER, CENTER PILLAR, RH
62429COVER, CENTER PILLAR SERVICE HOLE
62931ADUCT, QUARTER VENT, RH
62932ADUCT, QUARTER VENT, LH
5816912020BRACKET, FUEL TUBE
main58169-12020
9017908063
main90179-08063
9017908102
main90179-08102
9033325001
main90333-25001
9033330004
main90333-30004
9095001126
main90950-01126
9095001308
main90950-01308
9095001327
main90950-01327
9095001362
main90950-01362
909500171303
main90950-0171303
909500171304
main90950-0171304
9095006066
main90950-06066
9165160816
main91651-60816
9338216012
main93382-16012
63 parts on this diagram · 2 diagrams in section
