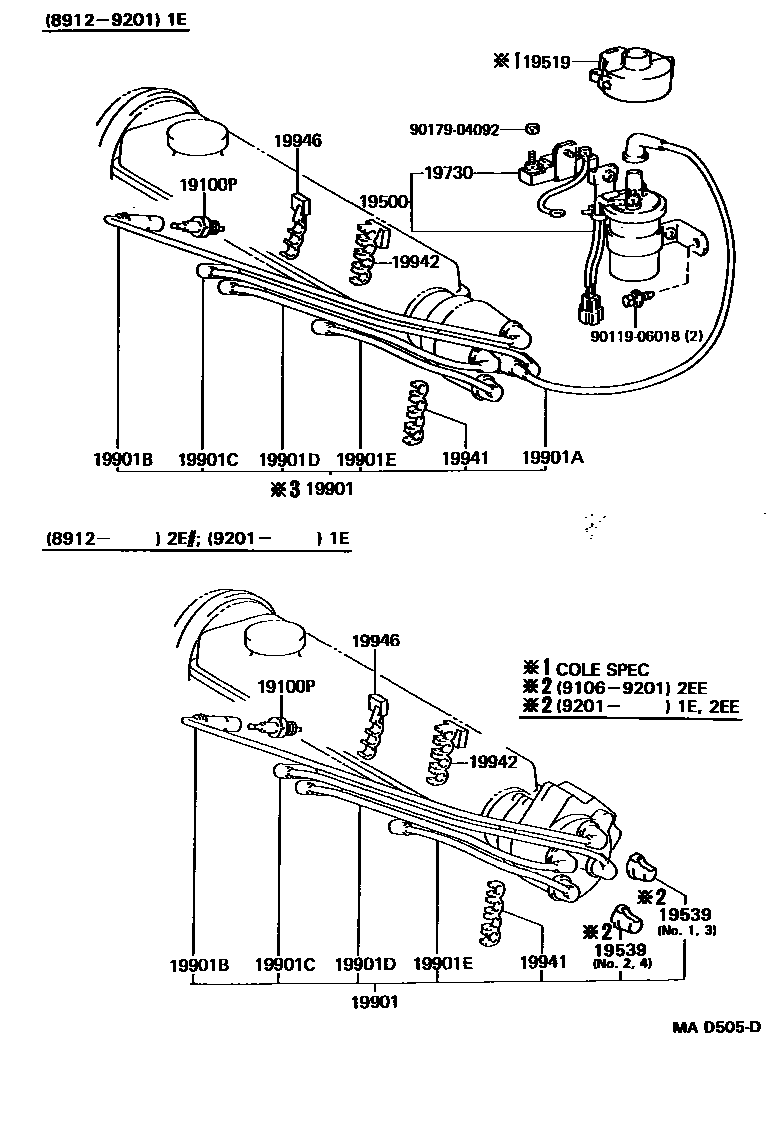

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0003 1

19100PPLUG, SPARK

main90919-01064i2EE..EP81..GLI,STD198912-199405

W16EXR-U

main90919-01065i2EE..EP81..SI,XLI199312-199601

W14EXR-U

main90919-01084i1E..EP80198912-199212

W20EXR-U

main90919-01091i2E..EP81198912-199212

W16EXR-U11

19500COIL ASSY, IGNITION

main90919-02203i1E..EP80198912-199201

19519COVER, IGNITION COIL

main19519-28020i1E..EP80..LHD198912-199201

COLD SPEC

19539HOLDER, RESISTIVE CODE, NO.4

main19532-50010i2EE..EP81199106-199601

NO.2,4

main19539-11010i1E,2EE..EP8#199106-199601

NO.1,3

19730RESISTOR, IGNITION COIL

main90919-04041i1E..EP80198912-199201

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21492i1E..EP80198912-199201

main90919-22209i2E..EP81198912-199201

main90919-22329i2EE..EP81199106-199601

19901ACORD, COIL RESISTIVE

main90919-13368i1E..EP80198912-199201

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12778i1E,2E..EP8#198912-199212

main90919-15216i1E,2EE..EP8#199106-199601

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12775i2E..EP81198912-199212

main90919-15217i1E,2EE..EP8#199106-199601

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12776i1E,2E..EP8#;2EE..EP81..5F198912-199212

main90919-15218i2EE..EP81199106-199601

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12777i1E,2E..EP8#;2EE..EP81..5F198912-199212

main90919-15219i1E,2EE..EP8#199106-199601

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00358i1E,2E#..EP8#199011-199212

main90464-00490i1E,2E..EP8#198912-199011

main90464-00637i1E,2EE..EP8#199106-199601

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00372i2E..EP81198912-199212

main90464-00639i1E,2EE..EP8#199106-199601

main90929-01272i2EE..EP81..5F198912-199106

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00404i1E,2E..EP8#;2EE..EP81..5F198912-199212

main90464-00638i1E,2EE..EP8#199106-199601

9011906018

main90119-06018

9017904092

main90179-04092

16 parts on this diagram · 2 diagrams in section
