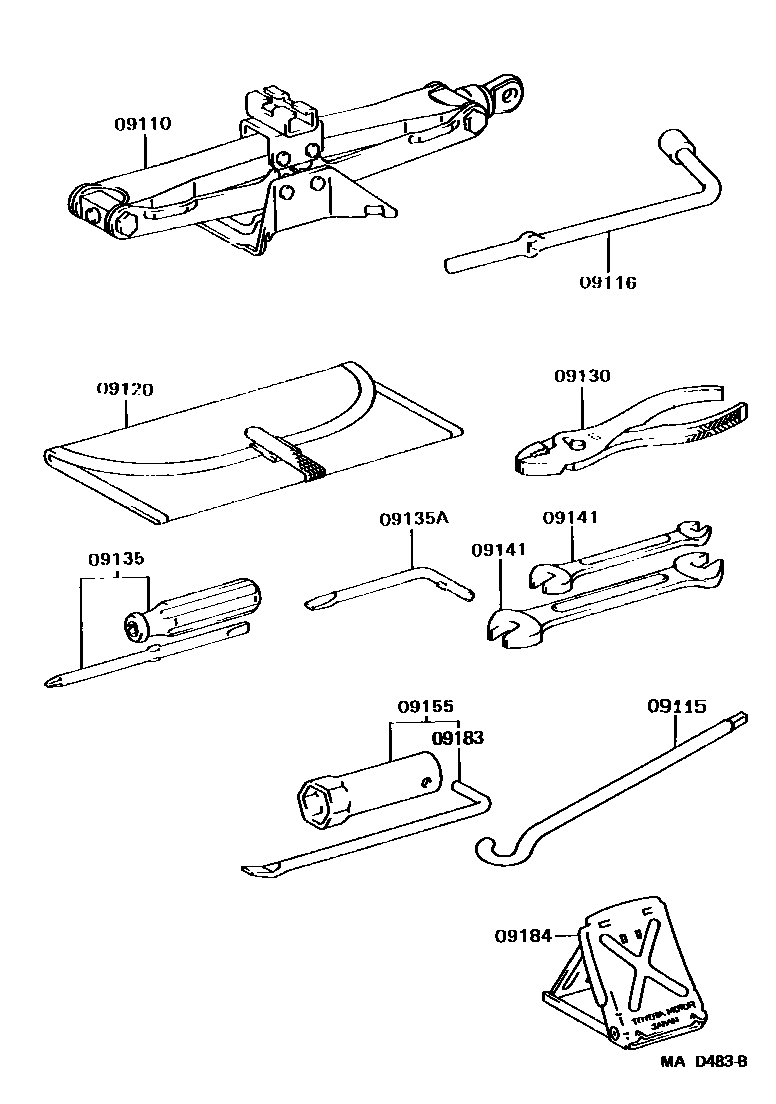

STANDARD TOOL

09110JACK ASSY

main09111-10050iEP8#,NP80198912-199601

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030iEP8#,NP80198912-199601

09116LEVER, JACK HANDLE

main09116-16010iEP8#,NP80198912-199601

09120BAG, TOOL

main09120-12011iEP8#,NP80198912-199301

main09120-16030iEP81,NP80199301-199601

09130PLIERS

main99913-11500iEP8#,NP80198912-199405

09135DRIVER, SCREW

main99915-10700iEP8#,NP80198912-199405

09135ABIT, SCREW DRIVER

main09135-00012iEP8#..GL,GLI,S,SI,XL,XLI198912-199301

09141SPANNER

main99914-10810iEP8#,NP80198912-199405

8 X 10

main99914-11214iEP8#,NP80198912-199405

12 X 14

09155WRENCH, SPARK PLUG

main09155-41010iEP81..5F..XLI;EP8#..GL,S,SI,STD,XL198912-199106

main09155-41020iEP80;EP81..LHD;EP81..RHD..EFI199106-199601

09183WRENCH, WHEEL CAP

main09183-00010iEP8#,NP80198912-199601

09184STOPPER, WHEEL

main09184-00010iEP8#,NP80198912-199405

11 parts on this diagram · 1 diagram in section
