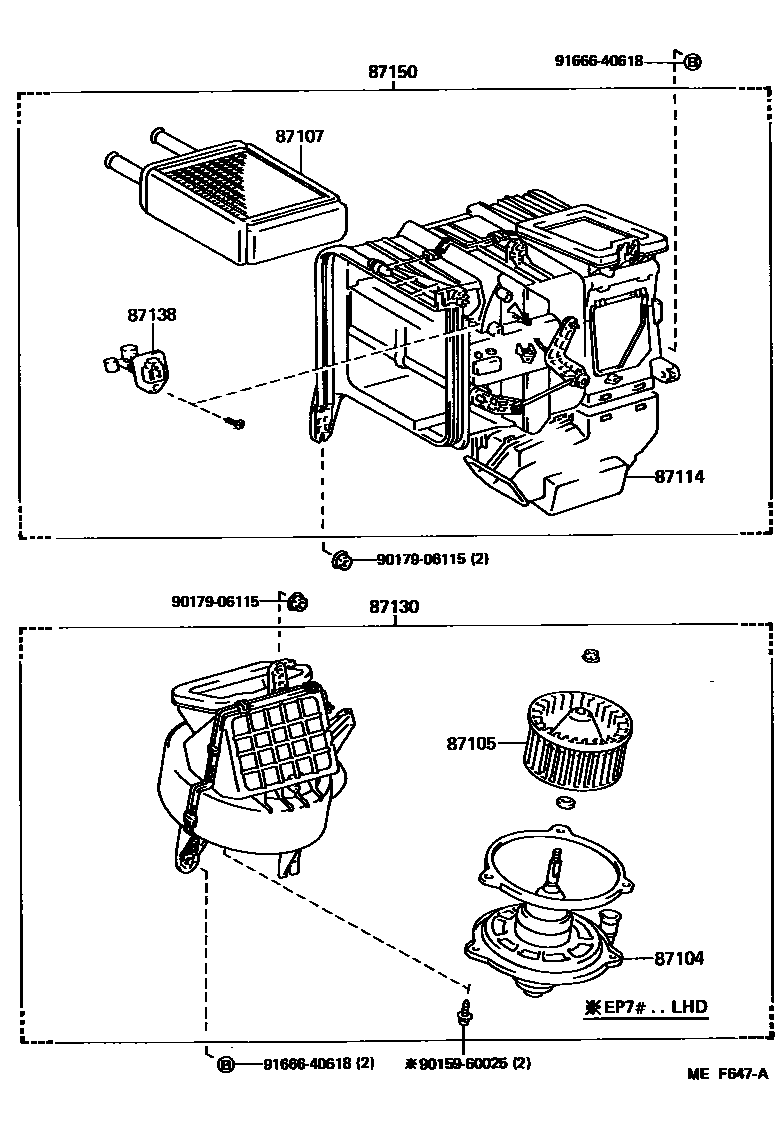

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1W/BOOST VENTILATOR

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-10150iEP7#..RHD198811-198912

main87104-10170iEP7#..LHD..EUG198410-198912

W/*BV

main87104-10180iEP7#,NP70..LHD198410-198912

STD TYPE

main87104-10200iEP71..(S,XL)..SDZ;EP7#,NP70..LHD..EUG198612-198912

HEAVY TYPE

main87104-89110iEP7#..LHD..MTM..EUG198612-198912

W/*AIC,W/*BV & COOLER

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iEP7#..LHD..EUG; EP71..3D..SDZ;EP7#..LHD..(EUG,FRG)198410-198612

HEAVY TYPE; W/*AIC,W/*BV & COOLER

main87134-30010iEP7#..LHD..EUG198610-198912

W/*BV

main87134-30020iEP7#..RHD198811-198912

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-10200iEP7#,NP70..LHD198410-198912

STD TYPE

main87107-10210iEP7#..LHD..EUG; EP71..3D..SDZ;EP7#..LHD..(EUG,FRG)198410-198612

HEAVY TYPE; W/*AIC

main87107-10220iEP7#..RHD198811-198912

87114COVER, HEATER

main87114-10030iEP7#,NP70..LHD198410-198912

main87114-10040iEP7#..RHD198811-198912

87130BLOWER ASSY, HEATER, FRONT

main87130-10120iEP7#..RHD198410-198612

main87130-10121iEP7#,NP70..RHD198612-198811

main87130-10130iEP7#..LHD..EUG198410-198612

W/*BV

main87130-10131iEP7#..LHD..EUG198612-198912

W/*BV

main87130-10140iEP7#..LHD..EUG198410-198612

W/*AIC,W/*BV & COOLER

main87130-10141iEP7#..LHD..MTM..EUG198612-198912

W/*AIC,W/*BV & COOLER

main87130-10150iEP7#..LHD198410-198612

STD TYPE

main87130-10151iEP7#,NP70..LHD198612-198912

STD TYPE

main87130-10160iEP71..3D..SDZ;EP7#..LHD..(EUG,FRG)198410-198612

HEAVY TYPE

main87130-10161iEP71..(S,XL)..SDZ;EP7#,NP70..LHD..EUG198612-198912

HEAVY TYPE

87138RESISTOR, HEATER BLOWER

main87138-10100iEP7#,NP70..RHD198410-198811

main87138-10110iEP7#..LHD..EUG198410-198912

W/*BV & COOLER

main87138-10120iEP7#,NP70..LHD; EP7#,NP70..LHD..EUG198410-198912

STD HEATER; W/*BV

87150RADIATOR ASSY, HEATER

main87150-10150iEP7#,NP70..LHD198410-198912

STD TYPE

main87150-10160iEP71..3D..SDZ;EP7#..LHD..(EUG,FRG)198410-198612

HEAVY TYPE

main87150-10170iEP7#..RHD198410-198612

main87150-10180iEP7#..LHD..EUG198410-198612

W/AIR CONDITIONER

main87150-10190iEP7#,NP70..RHD198612-198811

9015960025

main90159-60025

9017906115

main90179-06115

9166640618

main91666-40618

10 parts on this diagram · 2 diagrams in section
