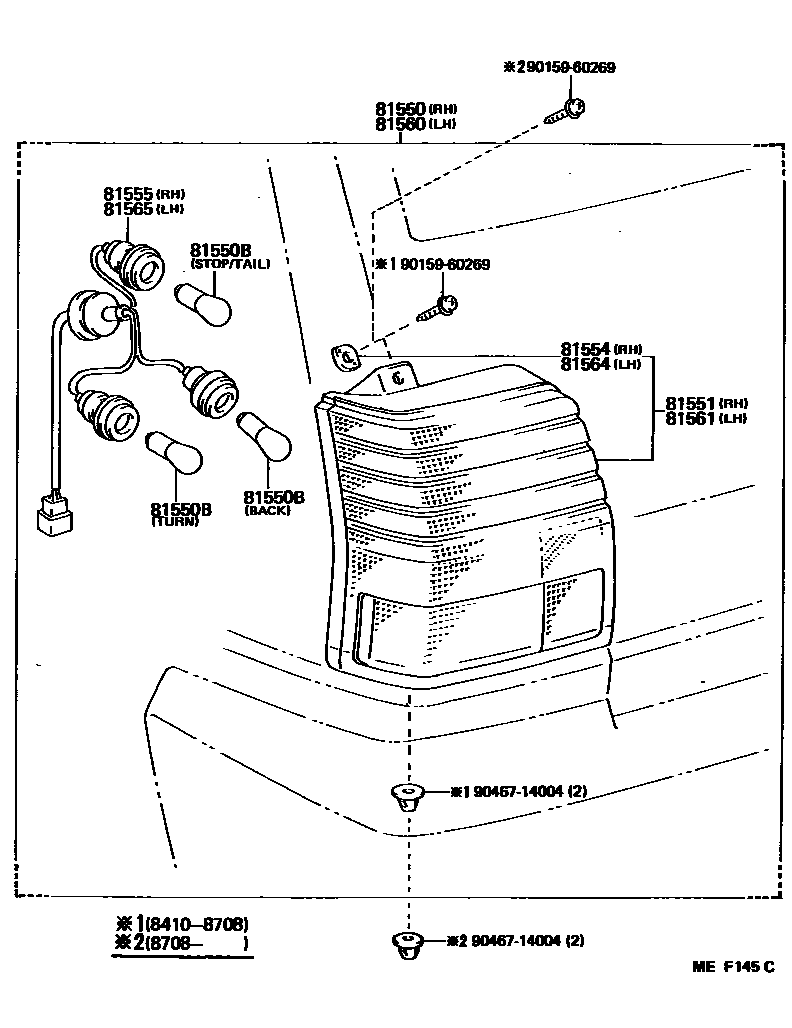

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-10251iEP7#,NP70198710-198912

main81550-80245iEP7#,NP70198410-198710

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iEP7#,NP70198410-198912

12V 21W,12V 21W(TURN & BACK)

main99132-21210×2iEP7#,NP70198410-198912

12V 21/5W,12V 21/5W(STOP/TAIC)

81551LENS, REAR COMBINATION LAMP, RH

main81551-10250iEP7#,NP70198410-198710

main81551-10251iEP7#,NP70198710-198912

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-10250iEP7#,NP70198410-198912

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-10250iEP7#,NP70198410-198912

81560LAMP ASSY, REAR COMBINATION, LH

main81560-10231iEP7#,NP70198710-198912

main81560-80253iEP7#,NP70198410-198710

81561LENS, REAR COMBINATION LAMP, LH

main81561-10230iEP7#,NP70198410-198710

main81561-10231iEP7#,NP70198710-198912

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-10250iEP7#,NP70198410-198912

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-10250iEP7#198410-198508

main81565-10230iEP7#,NP70198508-198912

9015960269

main90159-60269

9046714004

main90467-14004

11 parts on this diagram · 1 diagram in section
