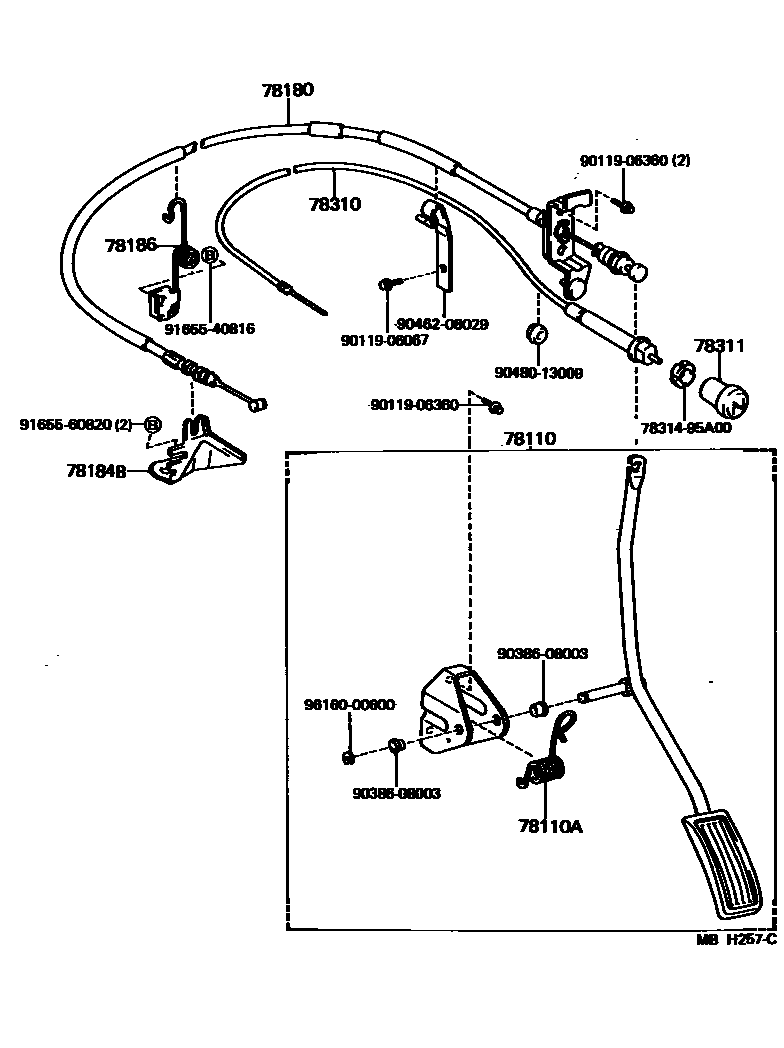

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-10010iEP7#..RHD198410-198612

main78120-10020iEP7#,NP70..LHD198410-198912

main78120-10030iEP7#,NP70..RHD198612-198912

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18053iEP7#,NP70..LHD198410-198912

main90508-18057iEP7#..RHD198410-198612

main90508-21004iEP7#,NP70..RHD198612-198912

78180WIRE ASSY, ACCELERATOR

main78180-10230iEP71..RHD198410-198912

main78180-10240iEP71..LHD198410-198912

main78180-10250iEP70..LHD198410-198912

main78180-10260iEP70..RHD198410-198912

main78180-10350iNP70..RHD198612-198811

main78180-10360iNP70..LHD198612-198912

78184BBRACKET, ACCELERATOR CONTROL CABLE

main26662-55010iNP70198612-198912

main78184-10070iEP71198410-198912

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-10040iEP71..RHD198410-198912

main78186-10050iEP70..RHD198410-198912

main78186-10060iEP7#..LHD198410-198912

main78186-10100iNP70..RHD198612-198811

main78186-10110iNP70..LHD198612-198912

78310CABLE ASSY, CHOKE

main84506-10010iEP70..LHD198410-198512

main84506-10011iEP70..LHD198512-198912

main84506-10020iEP70..RHD198410-198512

main84506-10021iEP70..RHD198512-198912

78311KNOB, CHOKE CONTROL CABLE

main78311-10040iEP70198410-198601

main78311-10041iEP70198601-198912

7831495A00BULB, CHOKE WARNING

main78314-95A00

9011906067

main90119-06067

9011906360

main90119-06360

9038608003

main90386-08003

9046208029

main90462-08029

9048013009

main90480-13009

9165540816

main91655-40816

9165560820

main91655-60820

9616000600

main96160-00600

16 parts on this diagram · 4 diagrams in section
