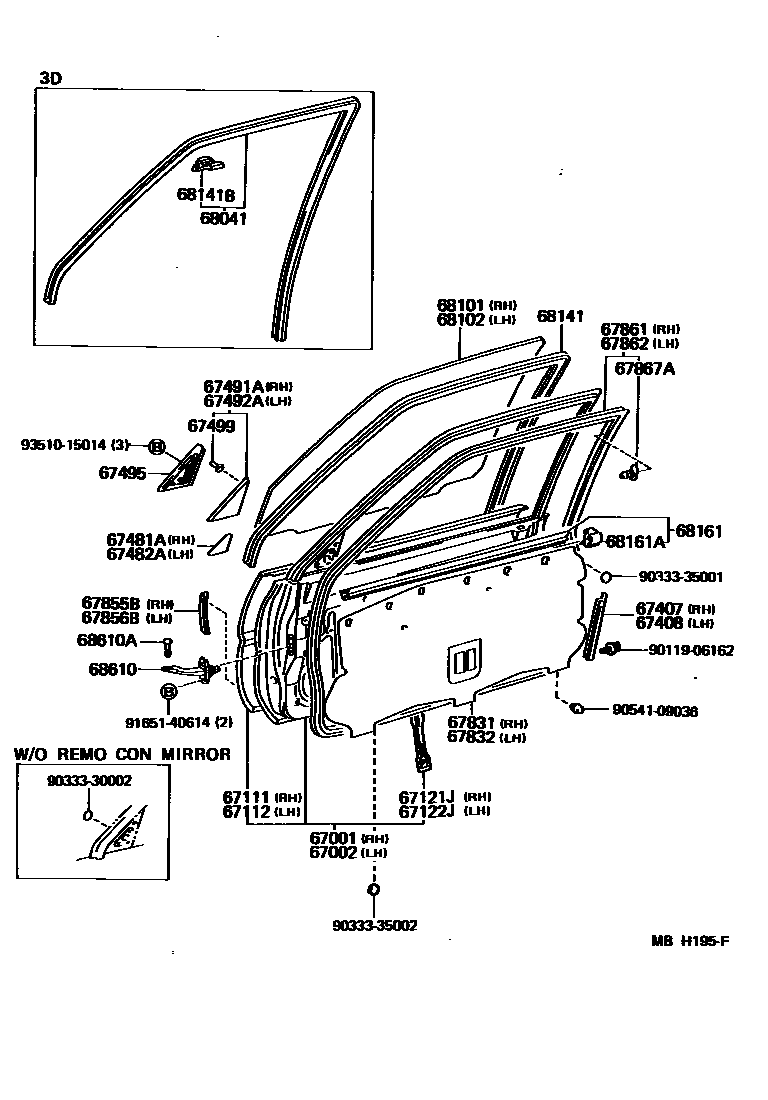

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-10280iEP70..LHD..GL;EP71..3D..EUG;EP71..XL..SDZ;EP70..3D..(STD,XL)198410-198604

main67001-10290iEP7#..3D..(GL,XL)198410-198604

W/*RCM

main67001-10310iEP7#,NP70..5D..(EUG,FRG)198410-198912

main67001-10320iEP7#,NP70..3D198604-198912

main67001-10330iEP7#..5D..(DX,GL,XL)198410-198912

W/*RCM

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-10280iEP70..RHD..3D;EP7#..LHD..3D..(STD,XL)198410-198604

main67002-10290iEP7#..3D..(GL,XL)198410-198604

W/*RCM

main67002-10310iEP7#..5D..(DX,STD,XL)198410-198912

main67002-10320iEP7#,NP70..3D198604-198912

main67002-10330iEP7#..5D..(DX,GL,XL)198410-198912

W/*RCM

67111PANEL, FRONT DOOR, OUTER RH

main67111-10240iEP7#,NP70..3D198410-198912

main67111-10270iEP7#,NP70..5D198410-198912

67112PANEL, FRONT DOOR, OUTER LH

main67112-10240iEP7#,NP70..3D198410-198912

main67112-10270iEP7#,NP70..5D198410-198912

67121JREINFORCEMENT, FRONT DOOR OUTSIDE PANEL, RH

main67121-10010iEP7#,NP70198410-198912

67122JREINFORCEMENT, FRONT DOOR OUTSIDE PANEL, LH

main67121-10010iEP7#,NP70198410-198912

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-10020iEP7#..3D198410-198612

main67403-10030iEP7#..5D198410-198612

main67403-10040iEP7#,NP70..3D198612-198912

main67403-10050iEP7#,NP70..5D198612-198912

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-10020iEP7#..3D198410-198612

main67404-10030iEP7#..5D198410-198612

main67404-10040iEP7#,NP70..3D198612-198912

main67404-10050iEP7#,NP70..5D198612-198912

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-16130iEP7#,NP70198410-198912

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67481-16130iEP7#,NP70198410-198912

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-10030iEP71..5D..GL..EUG198410-198912

main67491-10030iEP7#..5D..(DX,XL)198410-198612

GL PACK

main67491-10040iEP7#..5D..(EUG,FRG)198410-198912

main67491-10050iEP7#..5D..(DX,XL)198410-198912

W/*RCM

main67491-10050iEP71..5D..GL198410-198612

GL PACK,W/*RCM

main67491-10060iEP7#,NP70..5D..XL198410-198912

W/*RCM

main67491-10070iEP7#..3D..(DX,XL)198410-198612

GL PACK,S PACK

main67491-10070iEP71..S198612-198912

FULL FABRIC

main67491-10080iEP7#..3D..(DX,STD,XL)198410-198612

main67491-10080iEP7#,NP70..3D..(STD,XL)198612-198912

*DM

main67491-10100iEP7#..3D..(DX,XL)198410-198612

GL PACK,S PACK,W/*RCM

main67491-10100iEP7#,NP70..3D..XL198612-198912

FULL FABRIC,W/*RCM

main67491-10100iEP7#..3D..(GL,S)198410-198912

W/*RCM

main67491-10110iEP7#,NP70..3D..XL198410-198912

W/*RCM

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-10030iEP7#..5D..(DX,XL)198410-198612

GL PACK

main67492-10040iEP7#..5D..(EUG,FRG)198410-198912

main67492-10050iEP71..5D..GL198410-198912

W/*RCM

main67492-10050iEP7#..5D..(DX,XL)198410-198612

GL PACK,*RCM

main67492-10060iEP7#..5D..(DX,XL)198410-198912

W/*RCM

main67492-10070iEP71..S198612-198912

FULL FABRIC

main67492-10070iEP7#..3D..(DX,XL)198410-198612

GL PACK,S PACK

main67492-10070iEP70..GL198410-198912

main67492-10080iEP7#..3D..(DX,STD,XL)198410-198612

main67492-10080iEP7#,NP70..3D..(STD,XL)198612-198912

*DM

main67492-10090iEP7#,NP70..3D..XL198612-198912

FULL FABRIC,W/*RCM

main67492-10090iEP7#..3D..(DX,XL)198410-198612

GL PACK,S PACK,W/*RCM

main67492-10090iEP7#..3D..(GL,S)198410-198912

W/*RCM

main67492-10100iEP7#,NP70..3D..XL198410-198912

W/*RCM

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-10020iEP7#,NP70..LHD..5D198410-198912

RH

main67495-10040iEP7#,NP70..LHD..3D198410-198912

RH

main67496-10020iEP7#,NP70..RHD..5D198410-198912

LH

main67496-10030iEP70,NP70..RHD..3D198410-198912

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-10010iEP7#,NP70..3D198605-198912

main67499-30010iEP7#198410-198912

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-10090iEP7#..3D198410-198606

main67831-10091iEP7#,NP70..3D198606-198912

main67831-10100iEP7#..5D198410-198606

main67831-10101iEP7#,NP70..5D198606-198912

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-10050iEP7#..3D198410-198606

main67832-10051iEP7#,NP70..3D198606-198912

main67832-10060iEP7#..5D198410-198606

main67832-10061iEP7#,NP70..5D198606-198912

67855BPROTECTOR, FRONT DOOR PANEL, RH

main58741-12060iEP7#,NP70198801-198912

67856BPROTECTOR, FRONT DOOR PANEL, LH

main58741-12060iEP7#,NP70198801-198912

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-10120iEP7#,NP70..3D198410-198912

main67861-10130iEP7#,NP70..5D198410-198912

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-10120iEP7#,NP70..3D198410-198912

main67862-10130iEP7#,NP70..5D198410-198912

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iEP7#,NP70..5D198410-198912

68041RUN SUB-ASSY, FRONT DOOR GLASS

main68041-10070iEP7#,NP70..3D198410-198912

RH

main68042-10070iEP7#,NP70..3D198410-198912

LH

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-10220iEP7#,NP70..3D198410-198912

*TEM,T=3.5,*TEM,T=3.5

main68111-10230iEP7#,NP70..5D198410-198912

*TEM,T=3.5,*TEM,T=3.5

main68111-10240iEP7#,NP70..3D198410-198912

*TT,T=3.5,*TT,T=3.5

main68111-10250iEP7#,NP70..5D198410-198912

*TT,T=3.5,*TT,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-10180iEP7#,NP70..3D198410-198912

*TEM,T=3.5,*TEM,T=3.5

main68112-10190iEP7#,NP70..5D198410-198912

*TEM,T=3.5,*TEM,T=3.5

main68112-10200iEP7#,NP70..3D198410-198912

*TT,T=3.5,*TT,T=3.5

main68112-10210iEP7#,NP70..5D198410-198912

*TT,T=3.5,*TT,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-10150iEP7#,NP70..5D198410-198912

68141BCLIP, DOOR GLASS RUN

main62367-16010iEP7#,NP70..3D198410-198912

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-10110iEP7#,NP70..3D198410-198912

RH

main68160-10120iEP7#,NP70..5D198410-198912

RH

main68210-10090iEP7#,NP70..3D198410-198912

LH

main68210-10100iEP7#,NP70..5D198410-198912

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-10070iEP7#,NP70..3D198410-198912

68610CHECK ASSY, FRONT DOOR

main68610-10020iEP7#,NP70198410-198912

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iEP7#198410-198507

main68617-90A00iEP7#,NP70198507-198912

9011906162

main90119-06162

9033330002

main90333-30002

9033335001

main90333-35001

9033335002

main90333-35002

9054109036

main90541-09036

9165140614

main91651-40614

9351015014

main93510-15014

37 parts on this diagram · 3 diagrams in section
