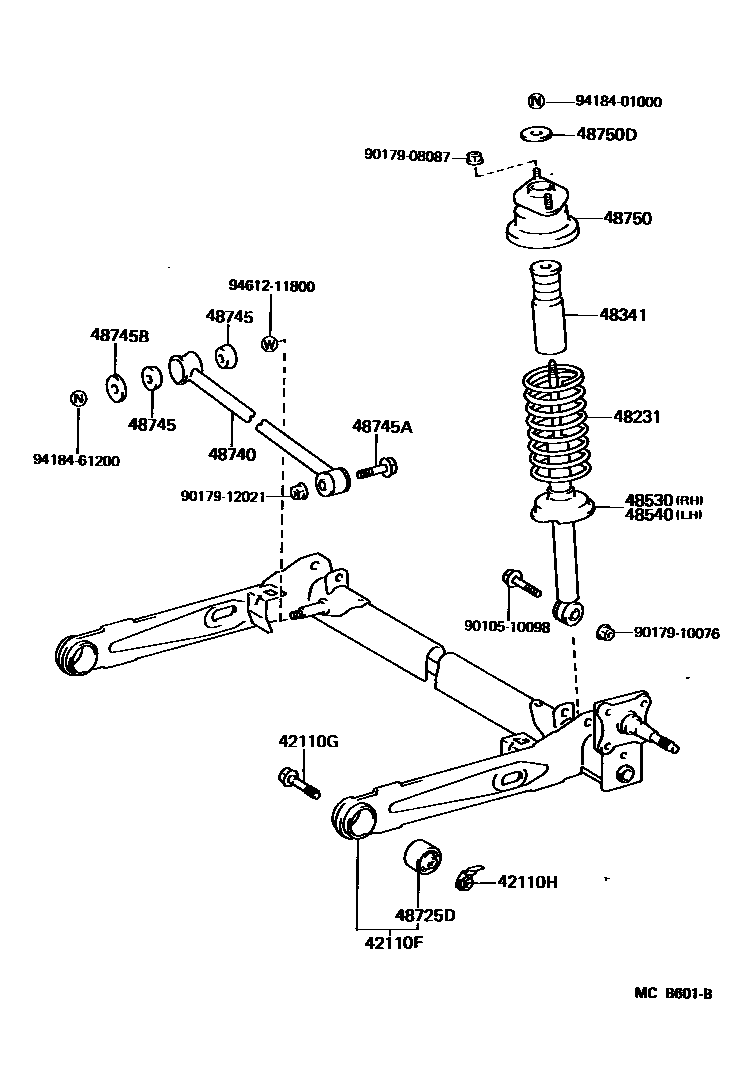

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-10030iEP7#198410-198612

main42110-10050iEP7#,NP70198612-198912

42110GBOLT (FOR REAR AXLE BEAM)

main90105-12088×2iEP7#,NP70198410-198912

42110HNUT (FOR REAR AXLE BEAM)

main90179-12041×2iEP7#,NP70198410-198912

48231SPRING, COIL, REAR

main48231-10160×2iEP7#,NP70..DX,GL,STD,XL198410-198912

main48231-10170×2iEP71..S198612-198912

48341BUMPER, REAR SPRING

main48341-10080×2iEP7#,NP70198410-198912

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-10020iEP7#,NP70..DX,GL,STD,XL198410-198912

main48530-10030iEP71..3D..5F..(DX,XL)198410-198612

S PACK

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-10020iEP7#,NP70..DX,GL,STD,XL198410-198912

main48530-10030iEP71..3D..5F..(DX,XL)198410-198612

S PACK

48725DBUSH, REAR SUSPENSION ARM, NO.3

main48725-10010×2iEP7#198410-198612

main48725-16110×2iEP7#,NP70198612-198912

48740ROD ASSY, REAR LATERAL CONTROL

main48740-10010iEP7#,NP70198410-198912

48745BUSH, LATERAL CONTROL ROD

main90385-18010×2iEP7#,NP70198410-198912

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-12037iEP7#,NP70198410-198912

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12037iEP7#,NP70198410-198912

48750SUPPORT ASSY, REAR SUSPENSION

main48750-10010×2iEP7#,NP70198410-198912

48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90948-02082×2iEP7#,NP70198410-198912

9010510098

main90105-10098

9017908087

main90179-08087

9017910076

main90179-10076

9017912021

main90179-12021

9418401000

main94184-01000

9418461200

main94184-61200

9461211800

main94612-11800

21 parts on this diagram · 1 diagram in section
