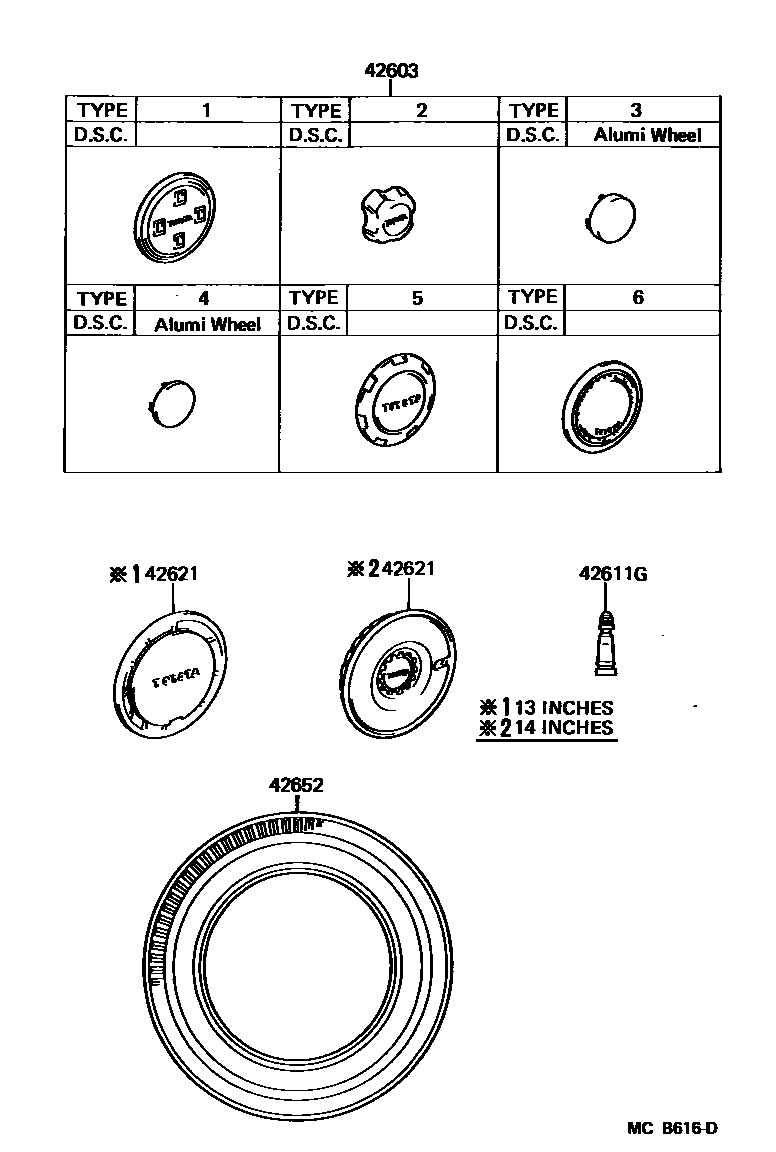

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-10110iEP70..STD..FRG198410-198912

TYPE 1

main42603-10120iEP7#198410-198612

TYPE 2

main42603-10140iEP71..3D..5F..(DX,XL)198410-198912

5J-14,ALUMI WHEEL,TYPE 3

main42603-10150iEP71..3D..5F..XL198410-198601

TYPE 6

main42603-10170iEP71..S198601-198912

TYPE 6

main42603-12170iEP71..3D..5F..(DX,XL)198410-198912

5J-13,ALUMI WHEEL,TYPE 4

main42603-20090iEP71..3D..5F..(DX,XL)198410-198912

TYPE 5

main42638-10170iEP7#,NP70198612-198912

*STE,TYPE 2

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iEP7#,NP70198410-198912

42621CAP, WHEEL

main42621-10110iEP71..S198612-198912

14 INCHES

main42621-12250-03iEP71..S198612-198912

13 INCHES,SILVER,SILVER METALLIC

42652TIRE

main42652-16010iEP71198604-198912

165/70SR13,165/70SR13,BRIDGESTONE

4 parts on this diagram · 2 diagrams in section
